Method

eFolki [eFolki]


Submitted on 13 Mar. 2013 02:56 by
Aurelien Plyer (Onera)

Running time:0.026 s
Environment:GPU @ 700 Mhz (C/C++)

Method Description:
Extended Iterative Lucas Kanade Optical Flow :
a very computational efficient and robust optical-flow based on the local Lucas Kanade paradigm.
Parameters:
iter = 5
levels = 5
rank radius = 2
radius = 8:-1:4
Latex Bibtex:
@Article{Plyer14JRTIP,
Title = {Massively parallel Lucas Kanade optical flow for real-time video processing applications},
Author = {Plyer, Aurélien and Le Besnerais, Guy and Champagnat, Frédéric},
Journal = {Journal of Real-Time Image Processing},
Year = {2014},
Pages = {1-18}
}

Detailed Results

This page provides detailed results for the method(s) selected. For each of the first 20 test images, the number of erroneous pixels at all thresholds is depicted in the table. Underneath, the left input image, the disparity / end-point error map and the estimated (and interpolated) disparity / optical flow map are shown. The error map scales linearly between 0 (black) and >=5 (white) pixels error. Red denotes all occluded pixels, falling outside the image boundaries. The false color map is scaled to the largest ground truth disparity / flow value.

Test Set Average

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 21.74 % 31.30 % 5.2 px 10.9 px
3 pixels 19.31 % 28.79 % 5.2 px 10.9 px
4 pixels 17.76 % 27.08 % 5.2 px 10.9 px
5 pixels 16.57 % 25.67 % 5.2 px 10.9 px
This table as LaTeX

Reflective Regions

This table as LaTeX

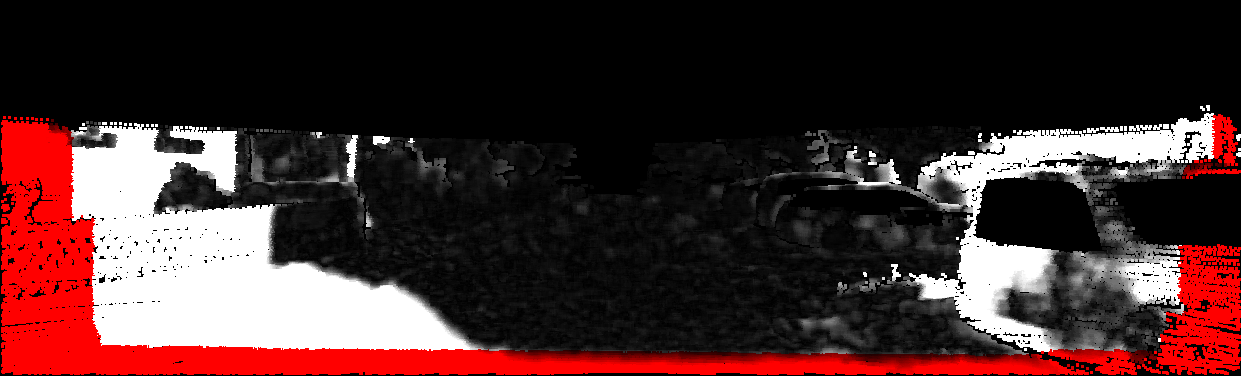

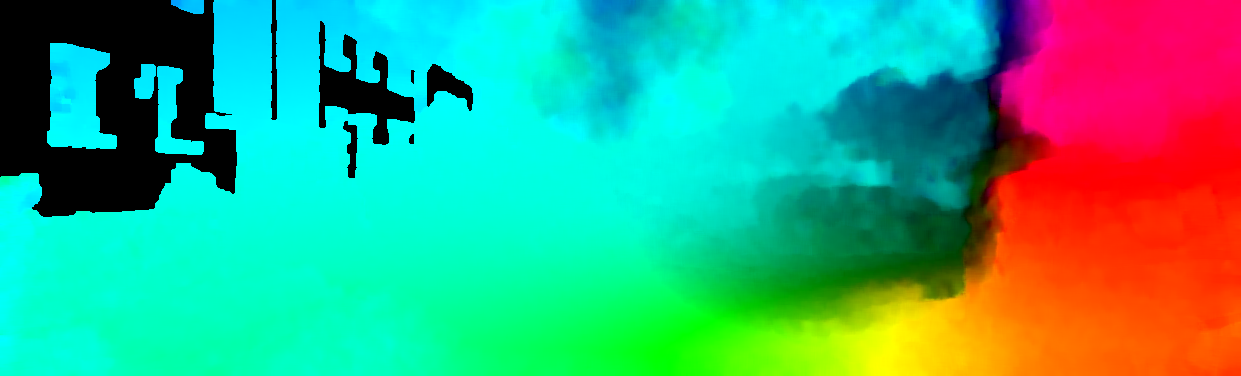

Test Image 0

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 29.47 % 39.28 % 8.1 px 13.2 px
3 pixels 27.63 % 37.08 % 8.1 px 13.2 px
4 pixels 26.58 % 35.54 % 8.1 px 13.2 px
5 pixels 25.67 % 34.05 % 8.1 px 13.2 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 1

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 12.20 % 23.02 % 1.2 px 2.8 px
3 pixels 9.82 % 19.93 % 1.2 px 2.8 px
4 pixels 8.15 % 17.53 % 1.2 px 2.8 px
5 pixels 6.73 % 15.17 % 1.2 px 2.8 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

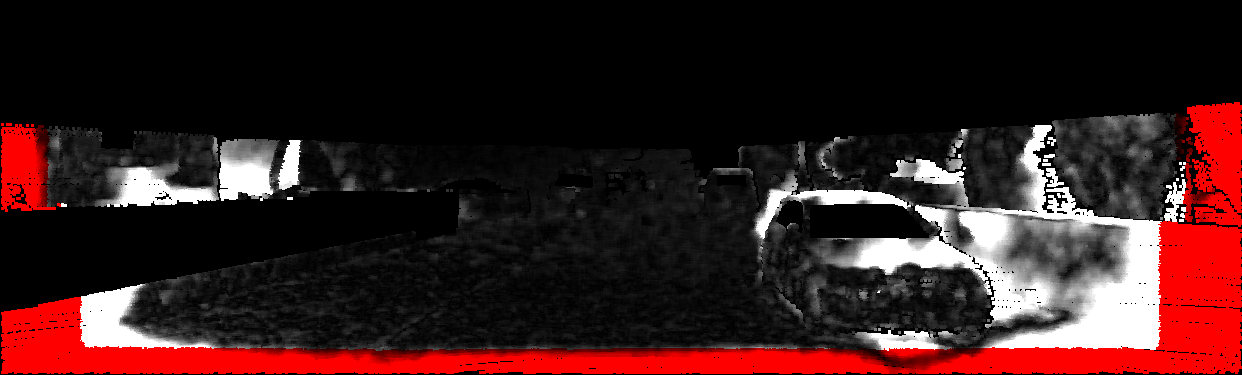

Test Image 2

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 17.97 % 30.36 % 1.7 px 5.3 px
3 pixels 14.29 % 26.50 % 1.7 px 5.3 px
4 pixels 12.02 % 23.80 % 1.7 px 5.3 px
5 pixels 10.22 % 21.60 % 1.7 px 5.3 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

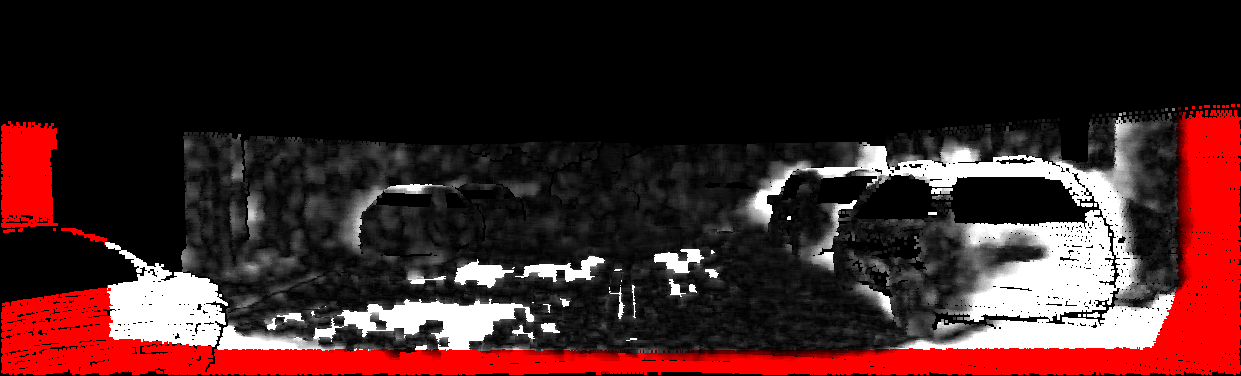

Test Image 3

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 20.64 % 33.28 % 4.3 px 10.1 px
3 pixels 18.11 % 30.77 % 4.3 px 10.1 px
4 pixels 16.47 % 28.90 % 4.3 px 10.1 px
5 pixels 15.26 % 27.35 % 4.3 px 10.1 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

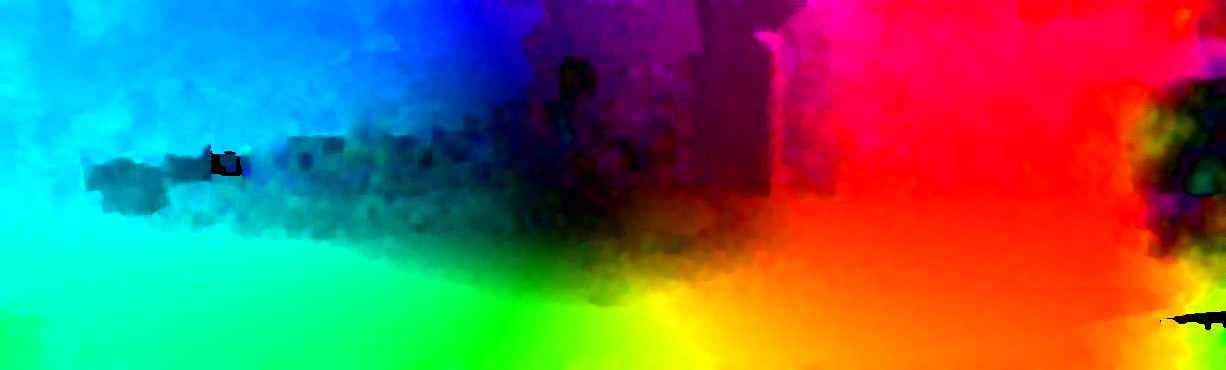

Test Image 4

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 10.09 % 16.29 % 1.9 px 3.0 px
3 pixels 8.75 % 13.87 % 1.9 px 3.0 px
4 pixels 8.06 % 12.15 % 1.9 px 3.0 px
5 pixels 7.66 % 11.13 % 1.9 px 3.0 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 5

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 32.97 % 43.64 % 7.1 px 16.7 px
3 pixels 30.47 % 41.53 % 7.1 px 16.7 px
4 pixels 28.84 % 40.16 % 7.1 px 16.7 px
5 pixels 27.40 % 38.96 % 7.1 px 16.7 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

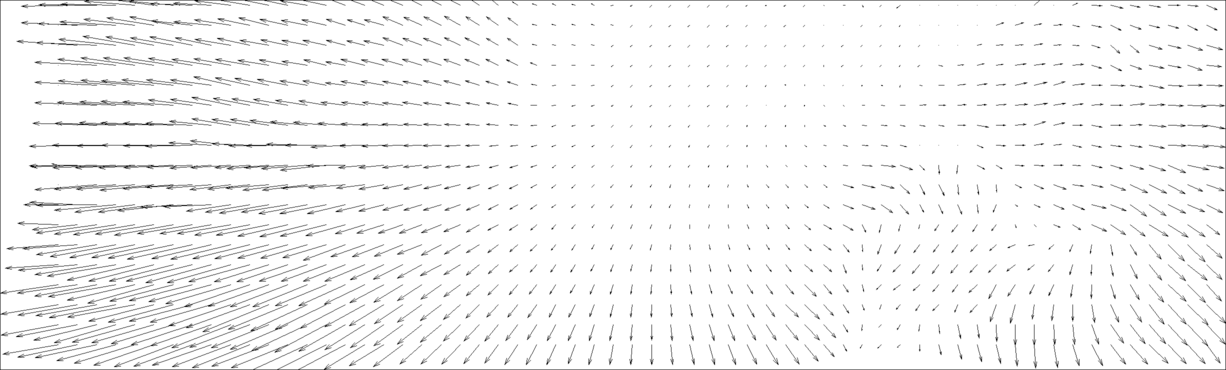

Test Image 6

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 22.00 % 31.30 % 5.6 px 10.0 px
3 pixels 20.07 % 28.70 % 5.6 px 10.0 px
4 pixels 18.77 % 26.57 % 5.6 px 10.0 px
5 pixels 17.95 % 24.76 % 5.6 px 10.0 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

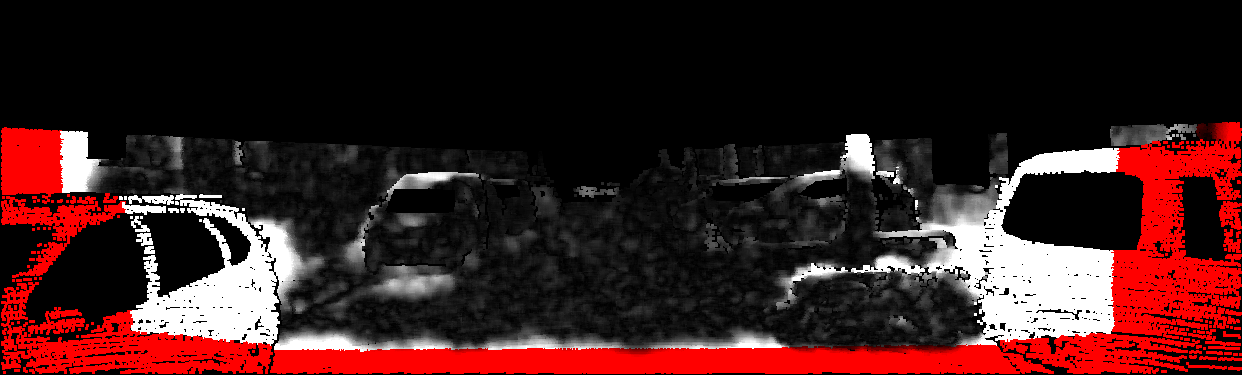

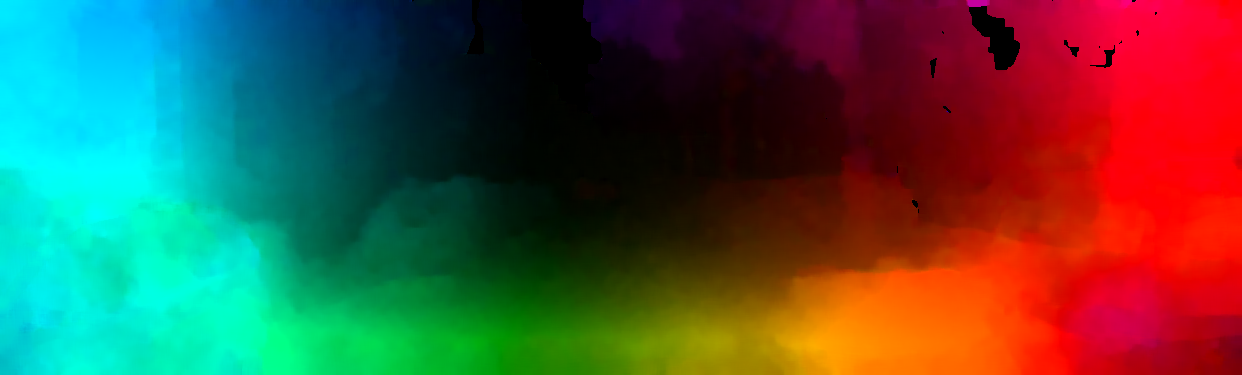

Test Image 7

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 21.05 % 33.97 % 6.8 px 15.1 px
3 pixels 17.51 % 30.88 % 6.8 px 15.1 px
4 pixels 15.33 % 28.88 % 6.8 px 15.1 px
5 pixels 13.82 % 27.15 % 6.8 px 15.1 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

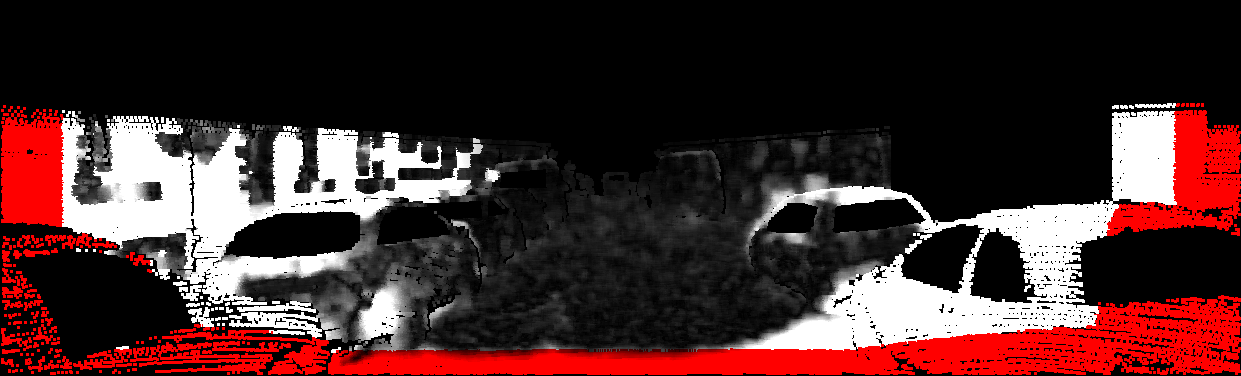

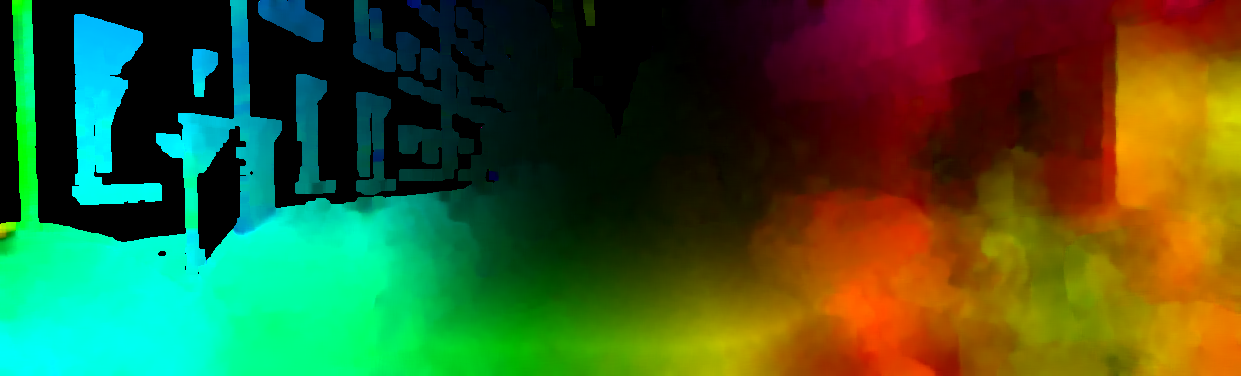

Test Image 8

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 29.51 % 42.13 % 5.6 px 14.8 px
3 pixels 27.10 % 40.14 % 5.6 px 14.8 px
4 pixels 25.32 % 38.68 % 5.6 px 14.8 px
5 pixels 23.80 % 37.43 % 5.6 px 14.8 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 9

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 34.57 % 44.48 % 10.8 px 18.6 px
3 pixels 32.17 % 42.10 % 10.8 px 18.6 px
4 pixels 30.44 % 40.11 % 10.8 px 18.6 px
5 pixels 28.78 % 38.22 % 10.8 px 18.6 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

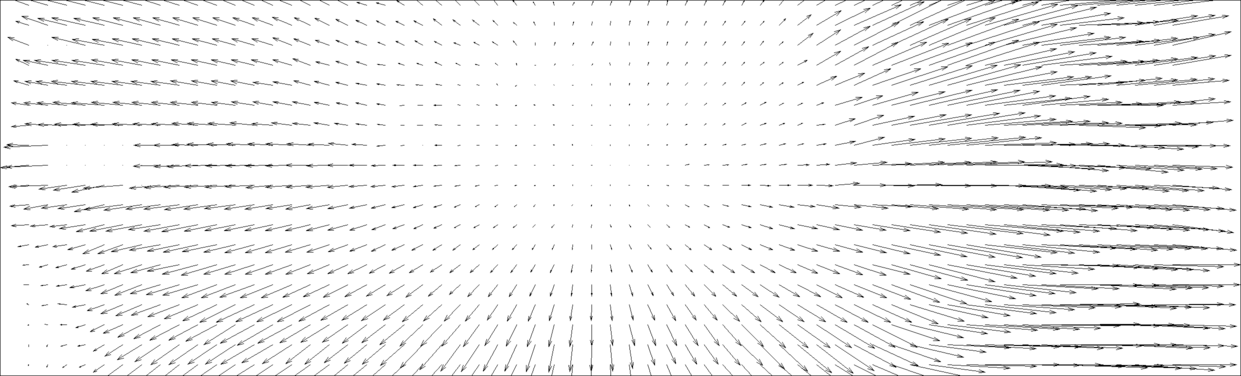

Test Image 10

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 25.59 % 38.74 % 6.7 px 18.3 px
3 pixels 23.98 % 37.33 % 6.7 px 18.3 px
4 pixels 22.88 % 36.33 % 6.7 px 18.3 px
5 pixels 21.90 % 35.36 % 6.7 px 18.3 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

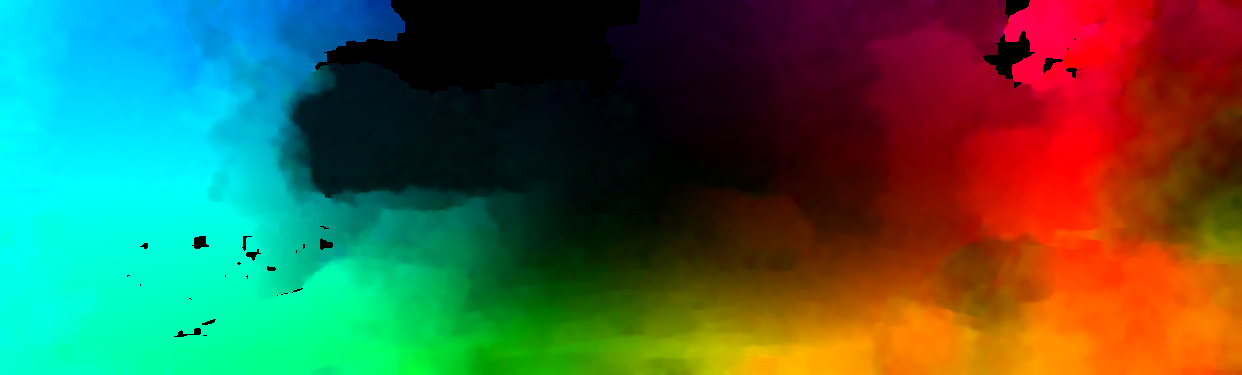

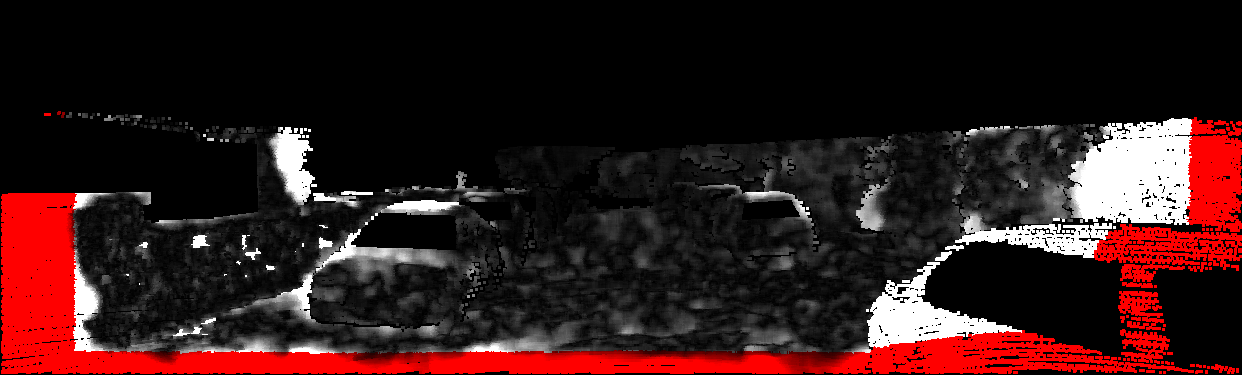

Test Image 11

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 14.48 % 27.38 % 3.1 px 8.0 px
3 pixels 11.37 % 24.01 % 3.1 px 8.0 px
4 pixels 9.70 % 21.83 % 3.1 px 8.0 px
5 pixels 8.86 % 20.31 % 3.1 px 8.0 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

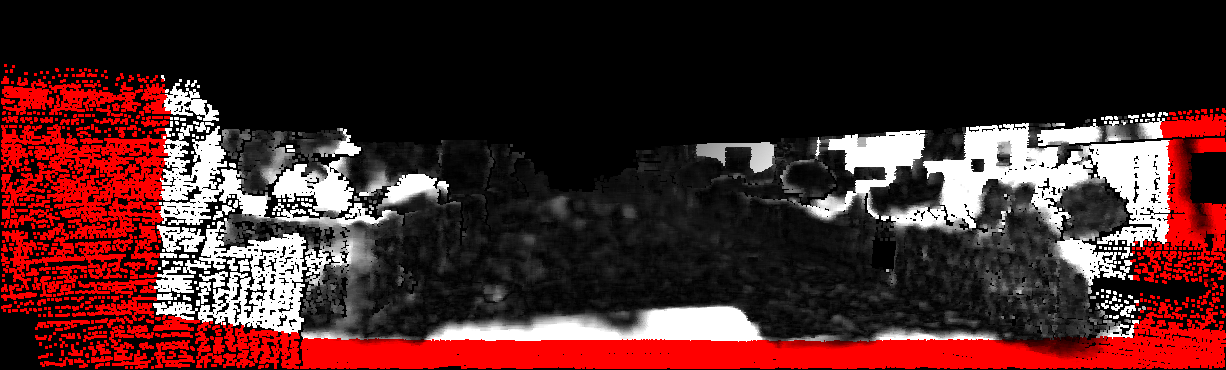

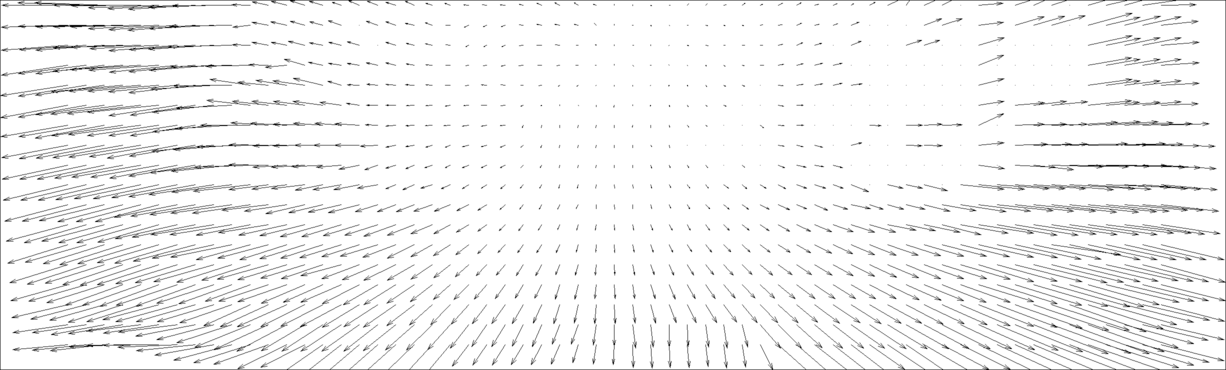

Test Image 12

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 24.30 % 35.91 % 4.2 px 10.7 px
3 pixels 21.55 % 33.18 % 4.2 px 10.7 px
4 pixels 19.09 % 30.62 % 4.2 px 10.7 px
5 pixels 17.19 % 28.53 % 4.2 px 10.7 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

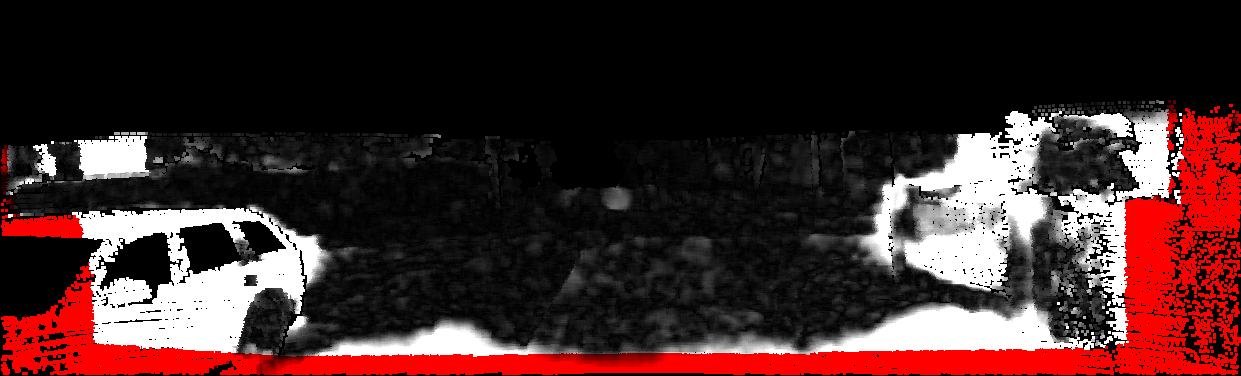

Test Image 13

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 23.95 % 33.14 % 5.4 px 9.2 px
3 pixels 21.65 % 30.88 % 5.4 px 9.2 px
4 pixels 19.41 % 28.59 % 5.4 px 9.2 px
5 pixels 17.74 % 26.84 % 5.4 px 9.2 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

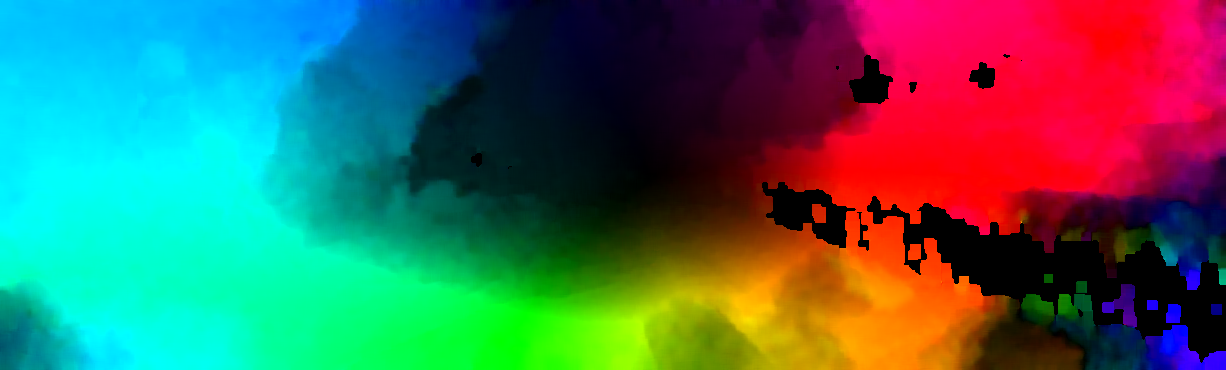

Test Image 14

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 43.15 % 52.82 % 13.9 px 24.4 px
3 pixels 40.33 % 50.47 % 13.9 px 24.4 px
4 pixels 38.19 % 48.67 % 13.9 px 24.4 px
5 pixels 36.37 % 47.10 % 13.9 px 24.4 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

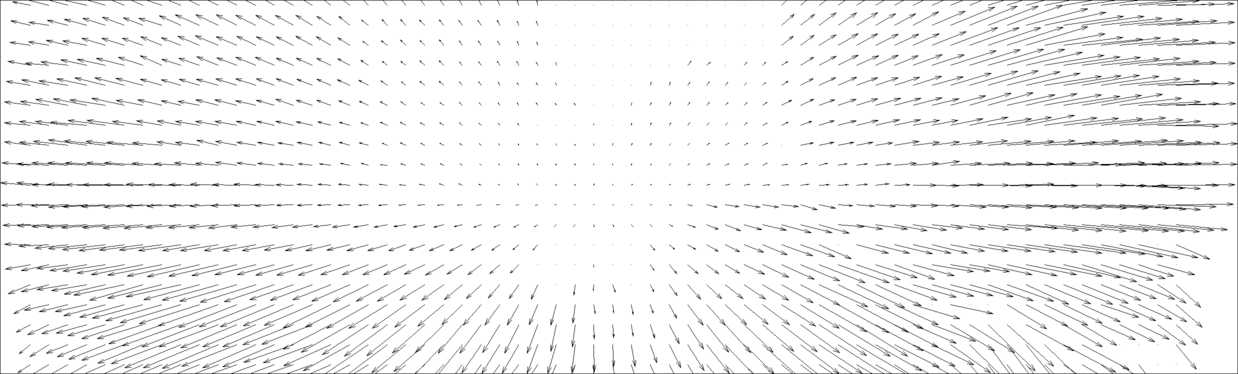

Test Image 15

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 32.81 % 44.54 % 5.1 px 14.7 px
3 pixels 28.70 % 41.14 % 5.1 px 14.7 px
4 pixels 25.82 % 38.71 % 5.1 px 14.7 px
5 pixels 23.27 % 36.51 % 5.1 px 14.7 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

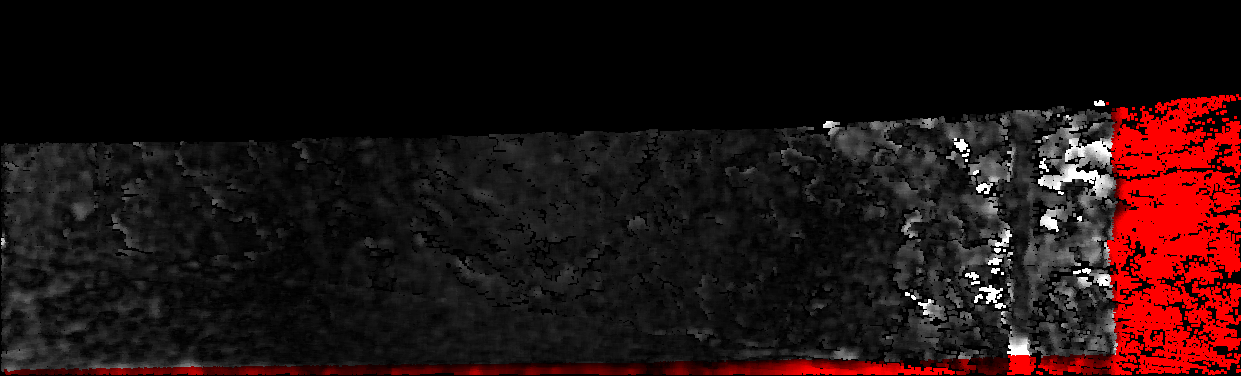

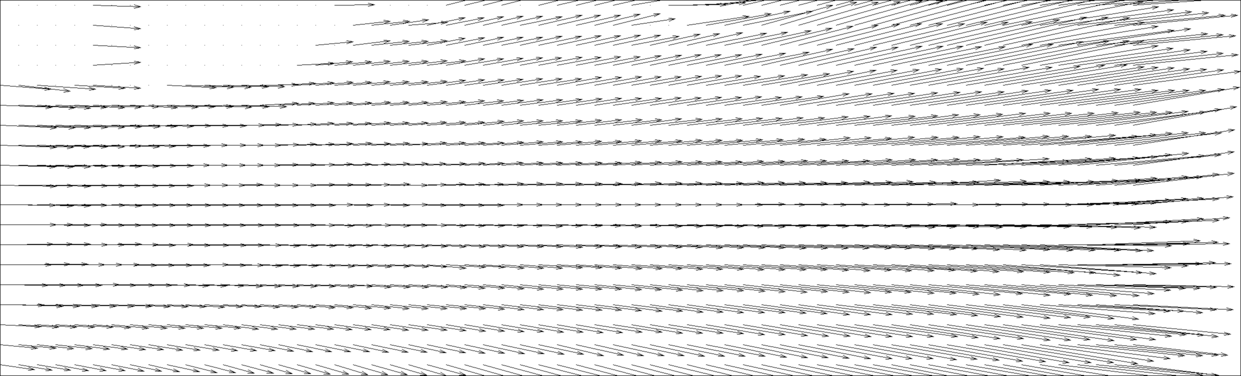

Test Image 16

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 2.31 % 9.25 % 0.5 px 2.2 px
3 pixels 1.11 % 7.44 % 0.5 px 2.2 px
4 pixels 0.72 % 6.73 % 0.5 px 2.2 px
5 pixels 0.41 % 6.13 % 0.5 px 2.2 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

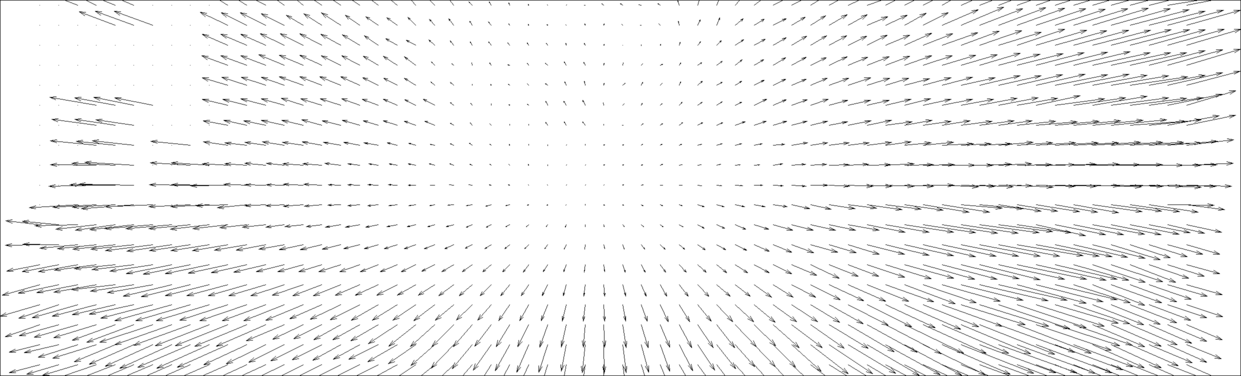

Test Image 17

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 23.26 % 35.22 % 3.4 px 10.3 px
3 pixels 19.89 % 32.25 % 3.4 px 10.3 px
4 pixels 17.47 % 30.06 % 3.4 px 10.3 px
5 pixels 15.64 % 28.28 % 3.4 px 10.3 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

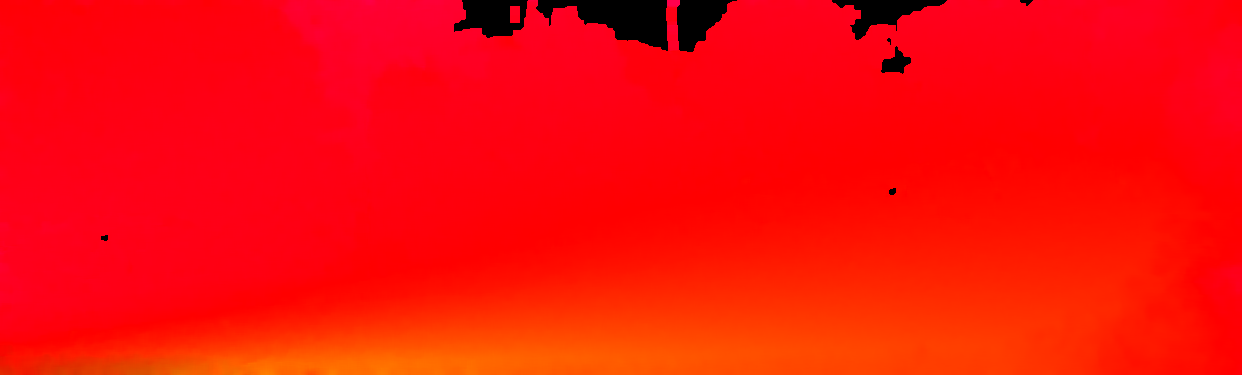

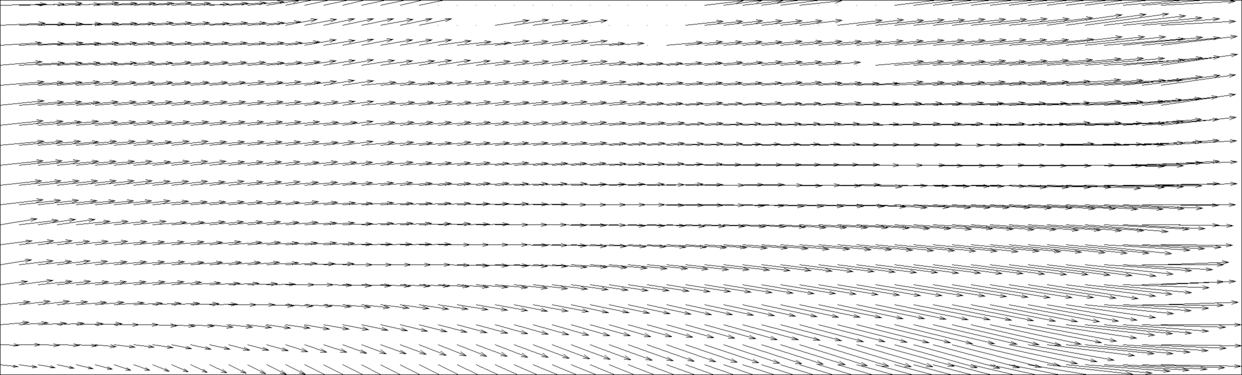

Test Image 18

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 2.95 % 11.40 % 0.6 px 2.3 px
3 pixels 2.29 % 10.03 % 0.6 px 2.3 px
4 pixels 1.87 % 9.04 % 0.6 px 2.3 px
5 pixels 1.57 % 8.13 % 0.6 px 2.3 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

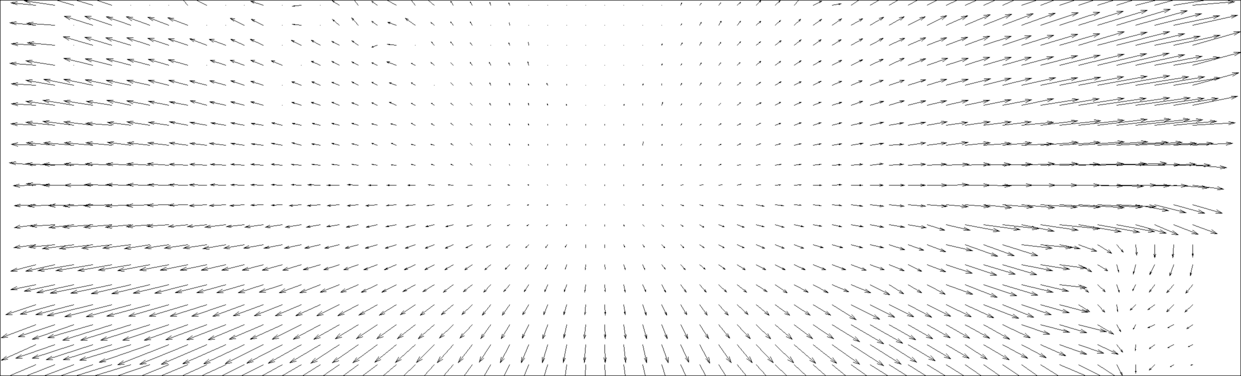

Test Image 19

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 7.99 % 18.23 % 2.2 px 5.2 px
3 pixels 6.92 % 16.51 % 2.2 px 5.2 px
4 pixels 6.38 % 15.20 % 2.2 px 5.2 px
5 pixels 5.94 % 13.87 % 2.2 px 5.2 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot
