Method

Stratified Dense Matching [SDM]
http://cmp.felk.cvut.cz/demos/Stereo/Components/Stm.html

Submitted on 16 Feb. 2012 18:27 by
Andreas Geiger (MPI Tübingen)

Running time:1 min
Environment:1 core @ 2.5 Ghz (C/C++)

Method Description:
In this paper, we have proposed a new method,
Stratified Dense Matching. Our approach improves
the discriminability of matching features by
selecting a suitable matching window shape. The
windows are defined to adapt to high-correlation
structures in disparity space that represent all
matching hypotheses. The window definition in
disparity space allows the matching to adapt to
slanted and curved surfaces, scale differences,
and discontinuities. The stratified matching
approach is independent on the selection of the
matching algorithm, although it is desirable to
use a pre-matching algorithm that guarantees low
false negative error and a final matching algorithm
that guarantees low false positive error and
mismatch error.
Parameters:
searchrange = [0 256];
csalpha = 0;
csbeta = 0.05;
Latex Bibtex:
@INPROCEEDINGS{Kostkova03,
author = {Jana Kostkova},
title = {Stratified dense matching for stereopsis
in complex scenes},
booktitle = {BMVC},
year = {2003}
}

Detailed Results

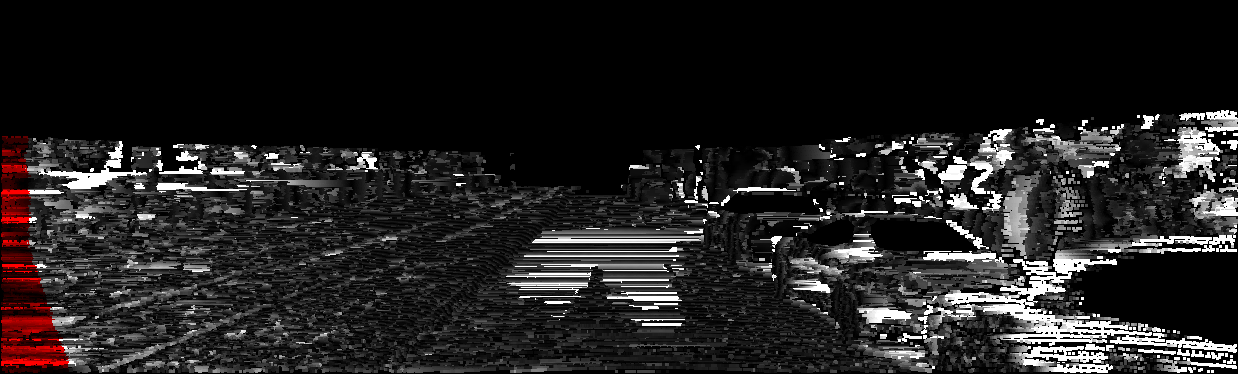

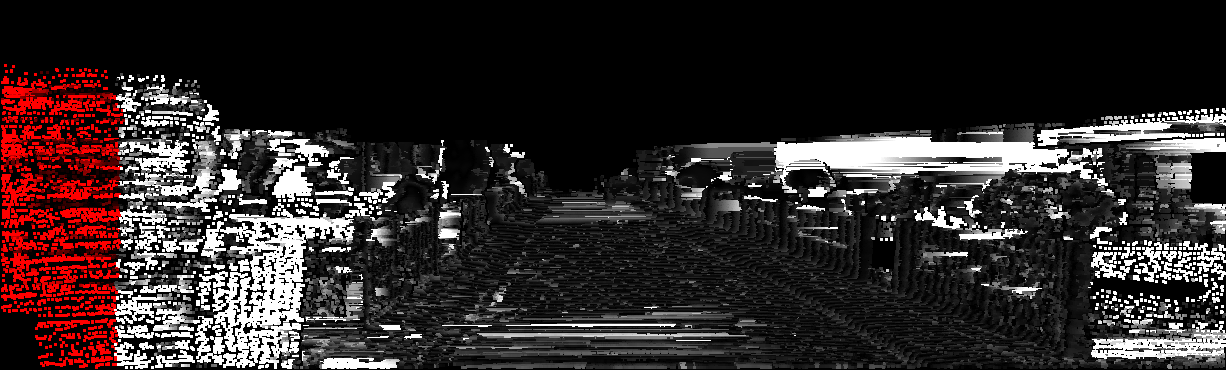

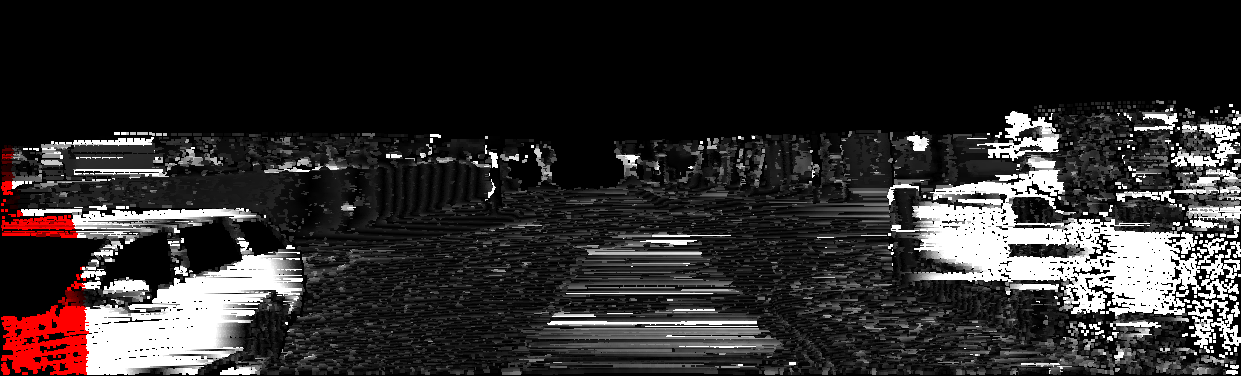

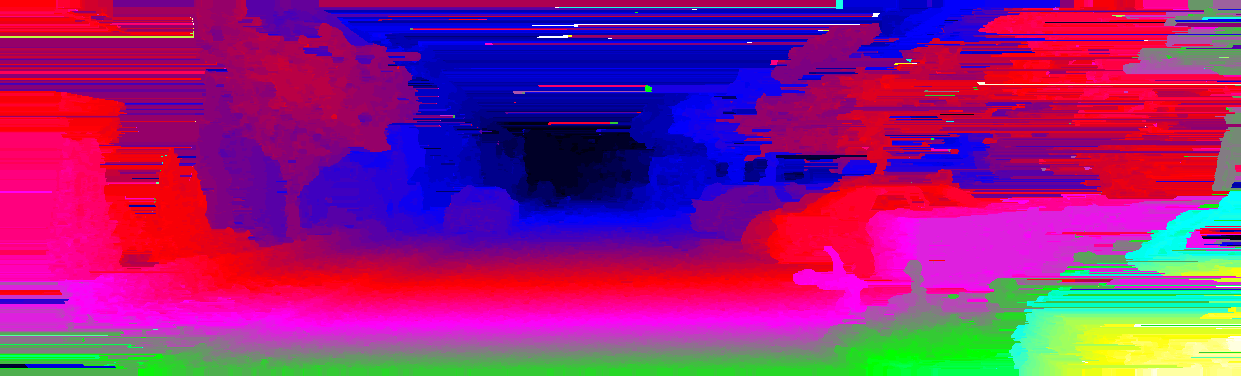

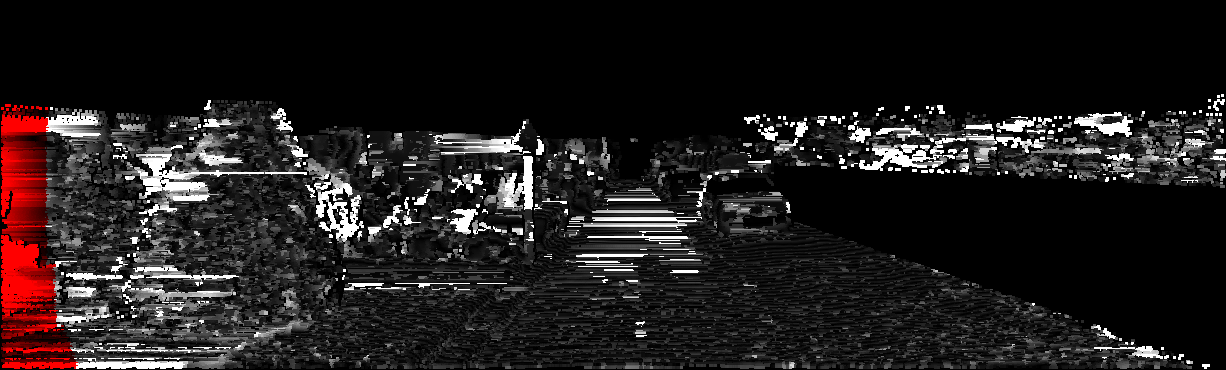

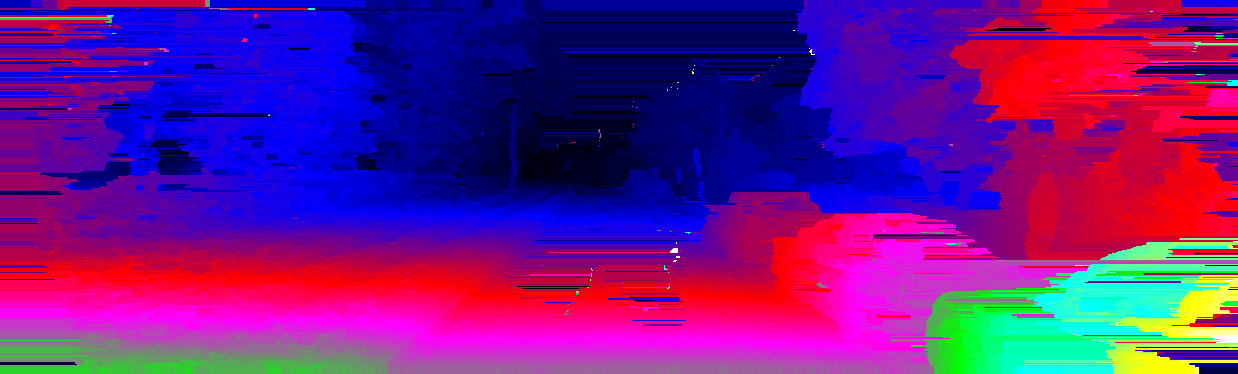

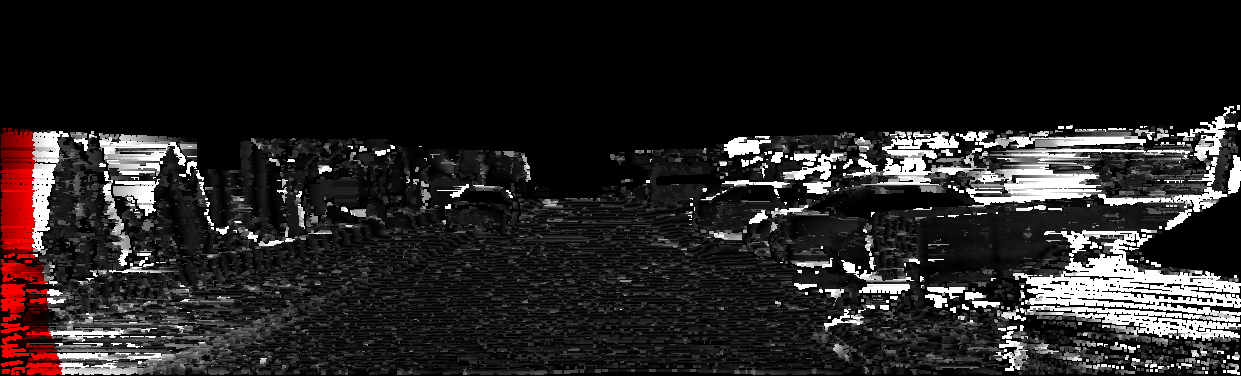

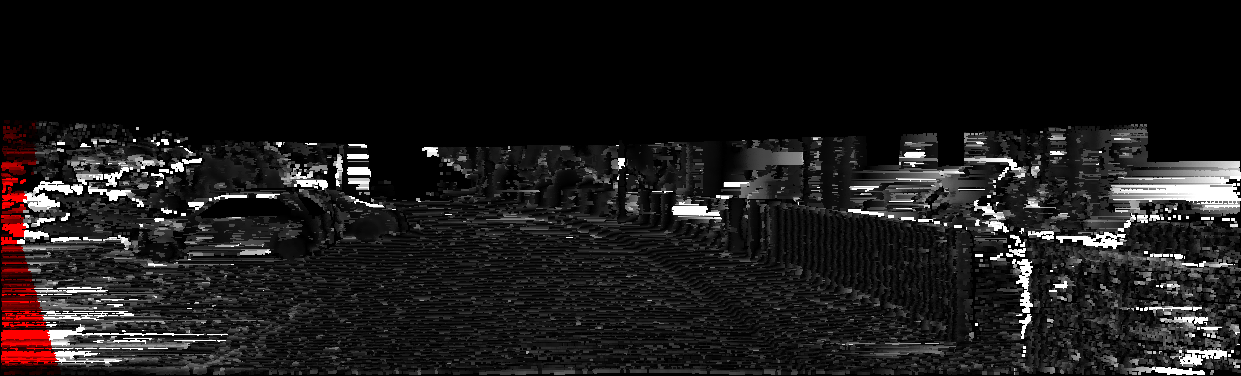

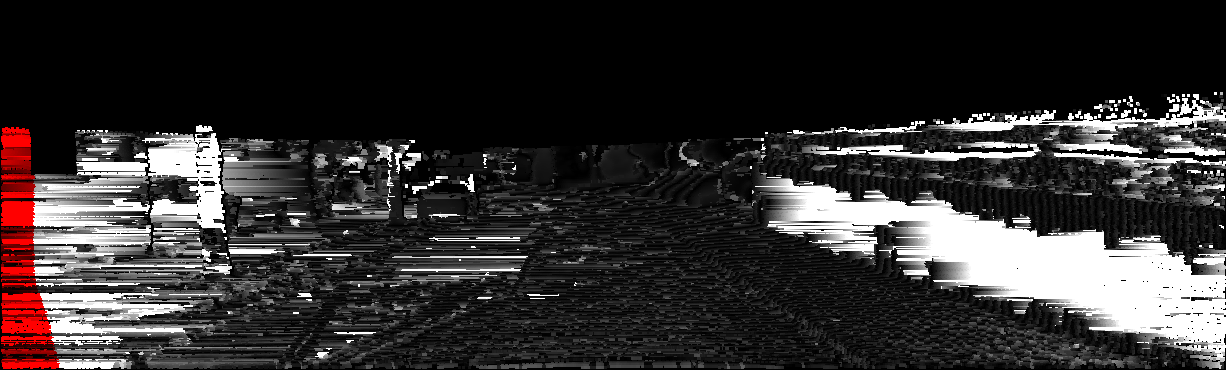

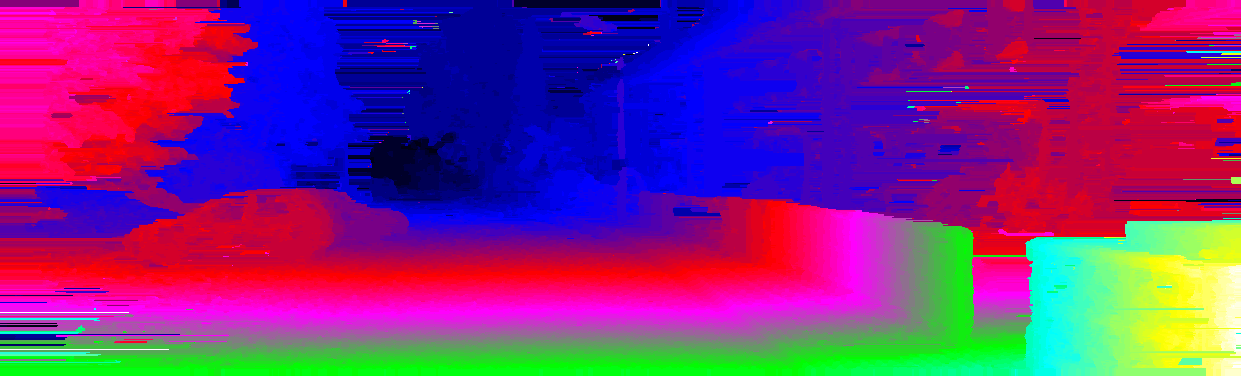

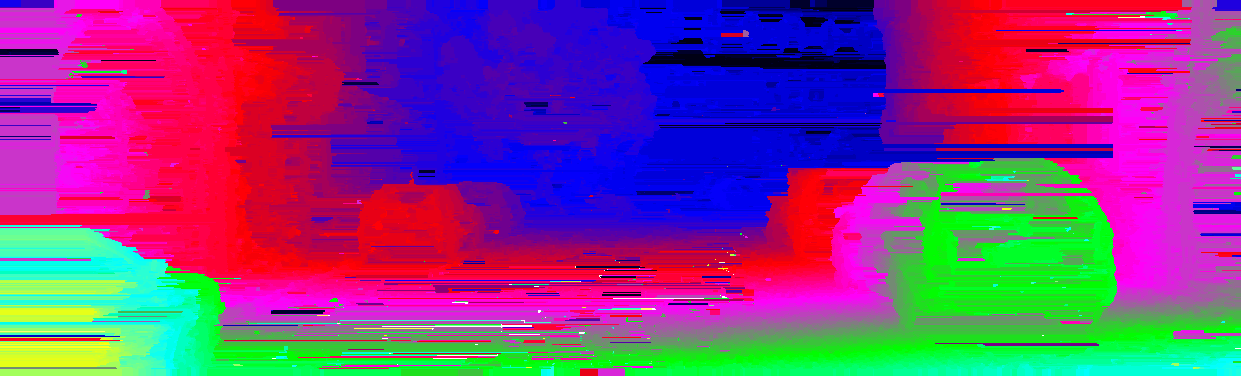

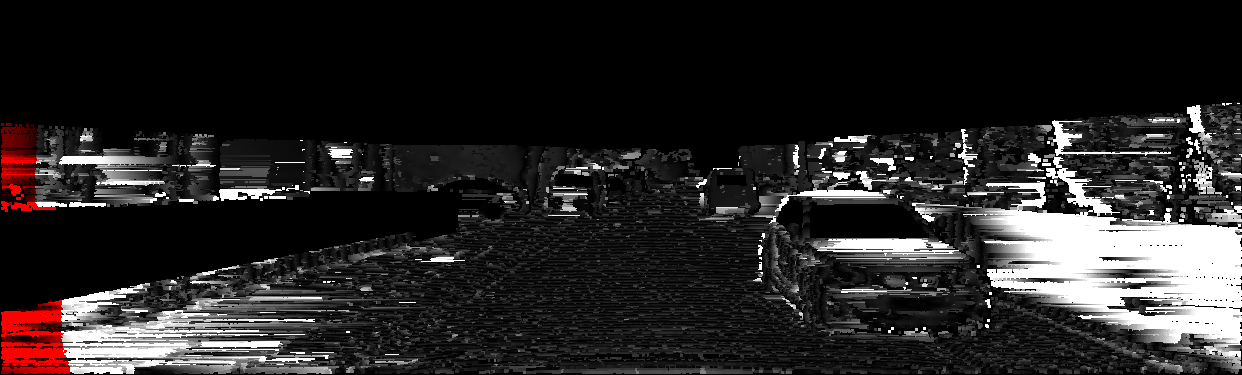

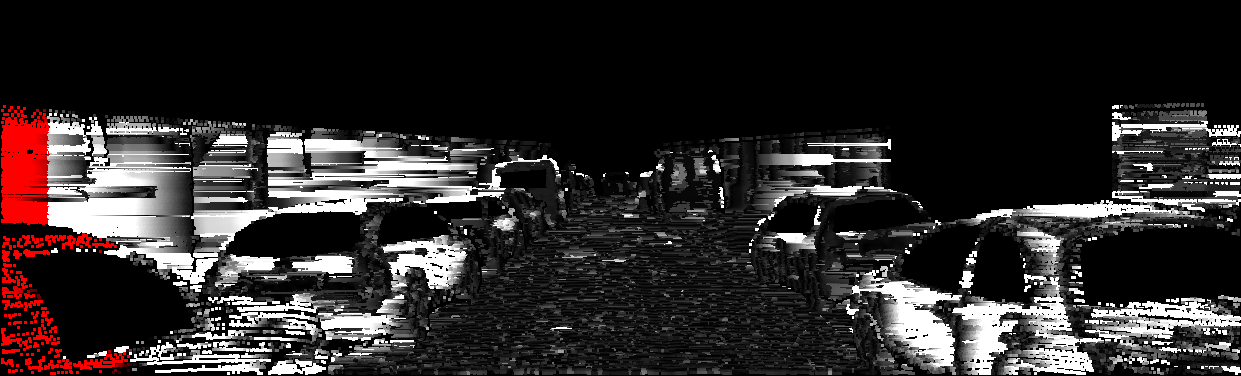

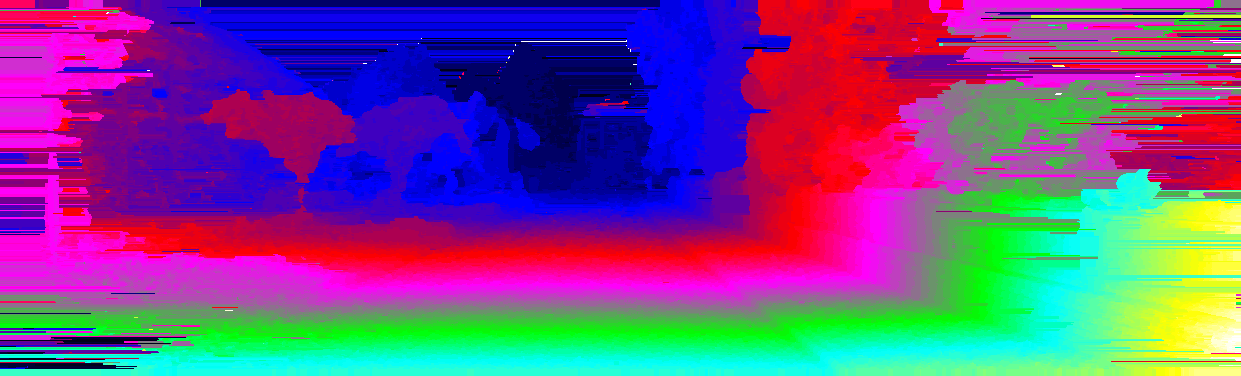

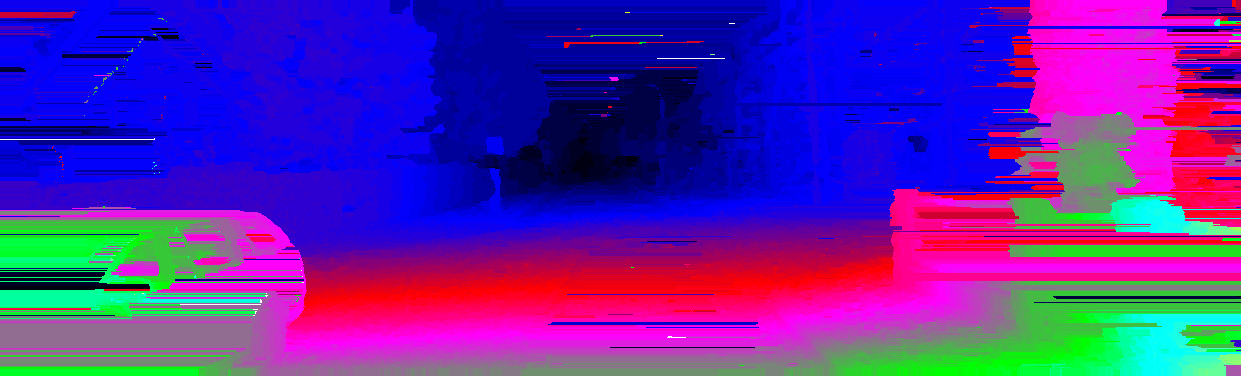

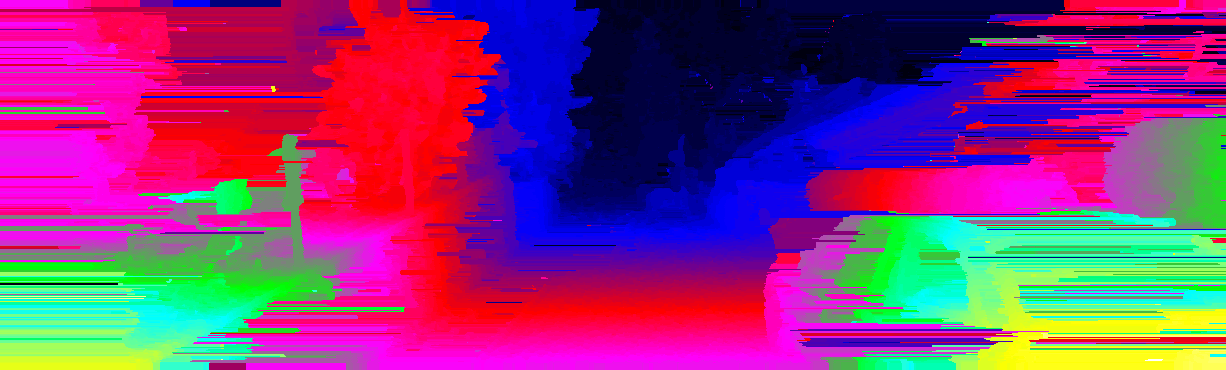

This page provides detailed results for the method(s) selected. For each of the first 20 test images, the number of erroneous pixels at all thresholds is depicted in the table. Underneath, the left input image, the disparity / end-point error map and the estimated (and interpolated) disparity / optical flow map are shown. The error map scales linearly between 0 (black) and >=5 (white) pixels error. Red denotes all occluded pixels, falling outside the image boundaries. The false color map is scaled to the largest ground truth disparity / flow value.

Test Set Average

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 15.26 % 16.60 % 2.0 px 2.3 px
3 pixels 10.95 % 12.14 % 2.0 px 2.3 px
4 pixels 8.79 % 9.85 % 2.0 px 2.3 px
5 pixels 7.44 % 8.38 % 2.0 px 2.3 px
This table as LaTeX

Reflective Regions

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 44.80 % 47.11 % 7.7 px 8.6 px
3 pixels 37.23 % 39.63 % 7.7 px 8.6 px
4 pixels 32.42 % 34.83 % 7.7 px 8.6 px
5 pixels 28.86 % 31.23 % 7.7 px 8.6 px
This table as LaTeX

Test Image 0

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 11.94 % 13.76 % 1.2 px 1.4 px
3 pixels 8.42 % 9.93 % 1.2 px 1.4 px
4 pixels 6.57 % 7.70 % 1.2 px 1.4 px
5 pixels 5.10 % 5.93 % 1.2 px 1.4 px
This table as LaTeX





Test Image 1

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 13.05 % 15.41 % 1.5 px 1.7 px
3 pixels 8.84 % 10.66 % 1.5 px 1.7 px
4 pixels 6.81 % 8.11 % 1.5 px 1.7 px
5 pixels 5.55 % 6.46 % 1.5 px 1.7 px
This table as LaTeX





Test Image 2

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 19.90 % 20.76 % 2.5 px 2.7 px
3 pixels 15.60 % 16.25 % 2.5 px 2.7 px
4 pixels 13.05 % 13.61 % 2.5 px 2.7 px
5 pixels 11.27 % 11.76 % 2.5 px 2.7 px
This table as LaTeX





Test Image 3

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 22.26 % 24.06 % 2.8 px 3.0 px
3 pixels 15.95 % 17.48 % 2.8 px 3.0 px
4 pixels 12.84 % 14.03 % 2.8 px 3.0 px
5 pixels 10.90 % 11.84 % 2.8 px 3.0 px
This table as LaTeX





Test Image 4

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 11.97 % 13.06 % 1.5 px 1.7 px
3 pixels 7.38 % 8.07 % 1.5 px 1.7 px
4 pixels 5.83 % 6.36 % 1.5 px 1.7 px
5 pixels 4.95 % 5.44 % 1.5 px 1.7 px
This table as LaTeX





Test Image 5

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 7.47 % 8.36 % 1.0 px 1.2 px
3 pixels 4.48 % 5.14 % 1.0 px 1.2 px
4 pixels 3.43 % 3.94 % 1.0 px 1.2 px
5 pixels 2.78 % 3.25 % 1.0 px 1.2 px
This table as LaTeX





Test Image 6

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 19.12 % 20.33 % 2.7 px 2.9 px
3 pixels 15.13 % 16.03 % 2.7 px 2.9 px
4 pixels 12.86 % 13.68 % 2.7 px 2.9 px
5 pixels 11.13 % 11.88 % 2.7 px 2.9 px
This table as LaTeX





Test Image 7

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 21.86 % 23.69 % 2.9 px 3.3 px
3 pixels 14.59 % 16.49 % 2.9 px 3.3 px
4 pixels 11.71 % 13.47 % 2.9 px 3.3 px
5 pixels 10.03 % 11.61 % 2.9 px 3.3 px
This table as LaTeX





Test Image 8

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 8.89 % 9.89 % 1.3 px 1.5 px
3 pixels 5.95 % 6.86 % 1.3 px 1.5 px
4 pixels 4.64 % 5.52 % 1.3 px 1.5 px
5 pixels 3.78 % 4.63 % 1.3 px 1.5 px
This table as LaTeX





Test Image 9

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 27.33 % 29.07 % 2.9 px 3.3 px
3 pixels 21.45 % 23.30 % 2.9 px 3.3 px
4 pixels 17.48 % 19.35 % 2.9 px 3.3 px
5 pixels 14.36 % 16.09 % 2.9 px 3.3 px
This table as LaTeX





Test Image 10

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 9.77 % 10.98 % 1.1 px 1.3 px
3 pixels 5.85 % 6.99 % 1.1 px 1.3 px
4 pixels 3.94 % 4.97 % 1.1 px 1.3 px
5 pixels 3.04 % 3.95 % 1.1 px 1.3 px
This table as LaTeX





Test Image 11

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 29.34 % 31.43 % 3.5 px 3.7 px
3 pixels 21.47 % 23.56 % 3.5 px 3.7 px
4 pixels 16.99 % 18.92 % 3.5 px 3.7 px
5 pixels 14.00 % 15.72 % 3.5 px 3.7 px
This table as LaTeX





Test Image 12

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 18.53 % 20.17 % 2.9 px 3.4 px
3 pixels 14.86 % 16.47 % 2.9 px 3.4 px
4 pixels 12.78 % 14.32 % 2.9 px 3.4 px
5 pixels 11.68 % 13.16 % 2.9 px 3.4 px
This table as LaTeX





Test Image 13

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 18.11 % 19.16 % 3.1 px 3.4 px
3 pixels 14.29 % 15.34 % 3.1 px 3.4 px
4 pixels 12.65 % 13.66 % 3.1 px 3.4 px
5 pixels 11.59 % 12.59 % 3.1 px 3.4 px
This table as LaTeX





Test Image 14

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 23.51 % 24.63 % 3.5 px 3.6 px
3 pixels 18.89 % 19.80 % 3.5 px 3.6 px
4 pixels 16.32 % 17.05 % 3.5 px 3.6 px
5 pixels 14.60 % 15.23 % 3.5 px 3.6 px
This table as LaTeX





Test Image 15

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 14.32 % 14.95 % 1.7 px 1.8 px
3 pixels 8.99 % 9.33 % 1.7 px 1.8 px
4 pixels 6.61 % 6.72 % 1.7 px 1.8 px
5 pixels 5.36 % 5.44 % 1.7 px 1.8 px
This table as LaTeX





Test Image 16

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 10.17 % 10.88 % 1.3 px 1.5 px
3 pixels 6.30 % 6.78 % 1.3 px 1.5 px
4 pixels 4.41 % 4.85 % 1.3 px 1.5 px
5 pixels 3.41 % 3.85 % 1.3 px 1.5 px
This table as LaTeX





Test Image 17

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 12.65 % 13.95 % 1.6 px 1.7 px
3 pixels 9.82 % 10.89 % 1.6 px 1.7 px
4 pixels 7.97 % 8.57 % 1.6 px 1.7 px
5 pixels 6.58 % 6.84 % 1.6 px 1.7 px
This table as LaTeX





Test Image 18

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 14.47 % 15.33 % 1.7 px 1.8 px
3 pixels 11.33 % 12.16 % 1.7 px 1.8 px
4 pixels 9.83 % 10.65 % 1.7 px 1.8 px
5 pixels 8.56 % 9.35 % 1.7 px 1.8 px
This table as LaTeX





Test Image 19

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 9.78 % 10.93 % 1.3 px 1.5 px
3 pixels 6.37 % 7.21 % 1.3 px 1.5 px
4 pixels 4.73 % 5.31 % 1.3 px 1.5 px
5 pixels 3.84 % 4.29 % 1.3 px 1.5 px
This table as LaTeX
