Method

An evaluation of data cost functions for optical flow estimation [Data-Flow]
http://www.igp.ethz.ch/photogrammetry/downloads/index

Submitted on 19 Jul. 2013 15:03 by
Christoph Vogel (TU Graz)

Running time:3 min
Environment:2 cores @ 2.5 Ghz (Matlab + C/C++)

Method Description:
An Evaluation of Data Costs for Optical Flow,
GCPR 2013.
Parameters:
CSAD evaluated on a 5x5 window
Parameters as in the paper:
\lambda = 3.333,
scale factor = 0.9,
40 warps,
5 inner iterations
Latex Bibtex:
@inproceedings{GCPR_2013_Vogel_Roth_Schindler,
title = {An Evaluation of Data Costs for
Optical
Flow},
author = {Vogel, C. and Roth, S. and
Schindler,
K.},
booktitle = {German Conference on Pattern
Recognition (GCPR)},
publisher = {Springer},
note = {to appear},
month = sep,
year = {2013}
}

Detailed Results

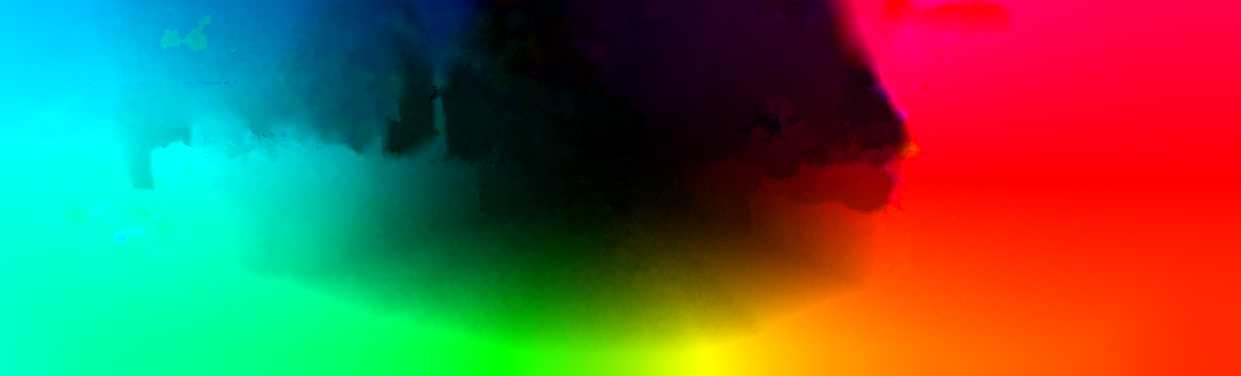

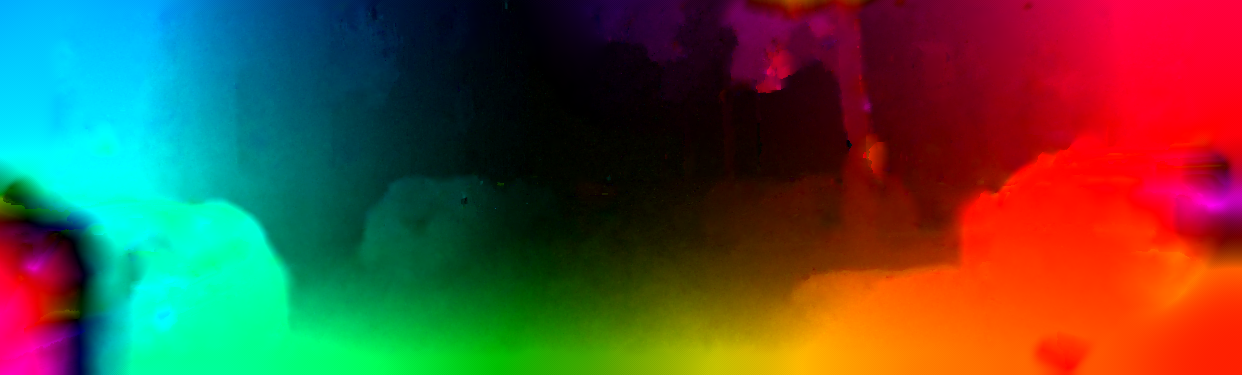

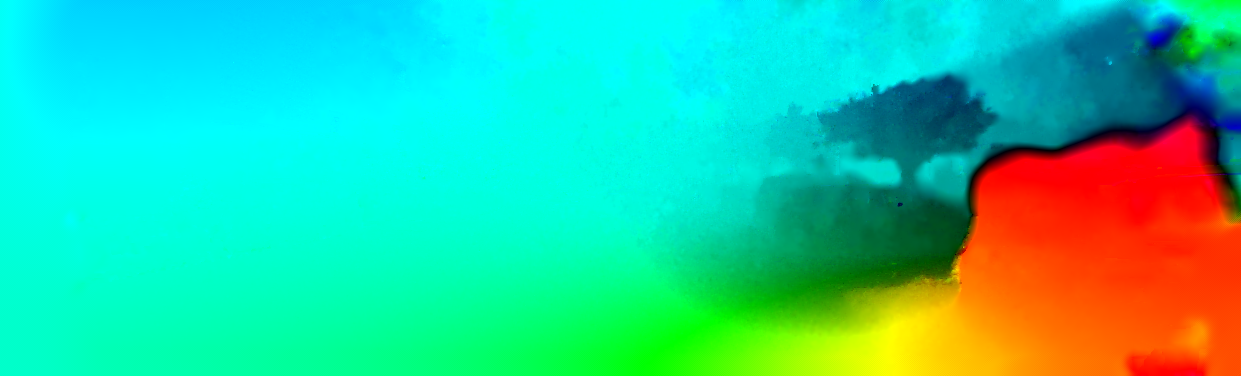

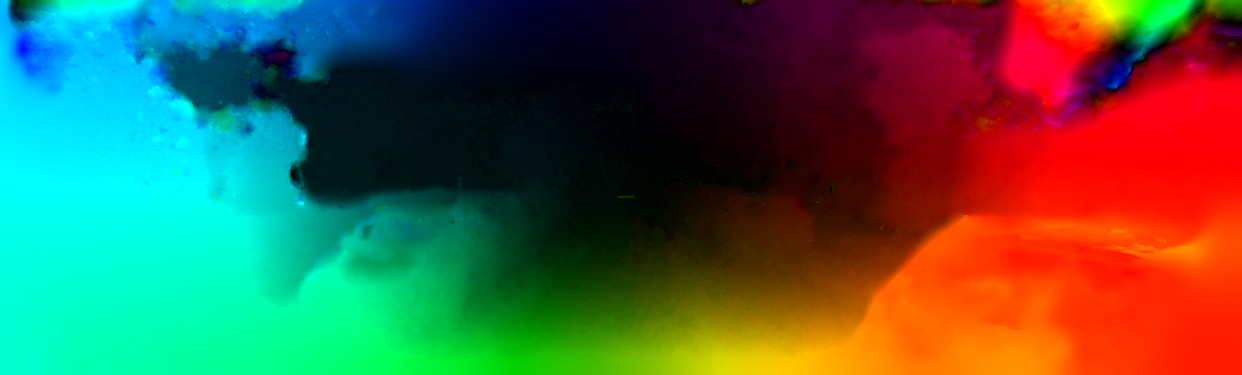

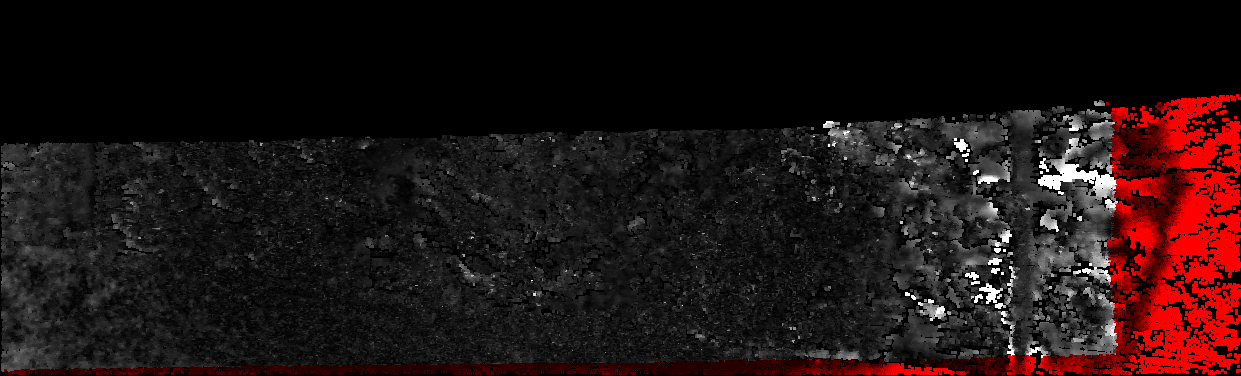

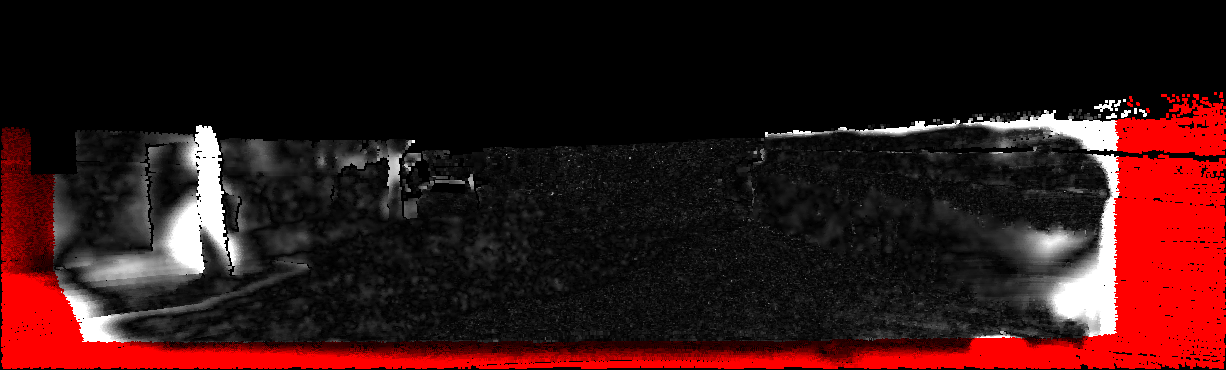

This page provides detailed results for the method(s) selected. For each of the first 20 test images, the number of erroneous pixels at all thresholds is depicted in the table. Underneath, the left input image, the disparity / end-point error map and the estimated (and interpolated) disparity / optical flow map are shown. The error map scales linearly between 0 (black) and >=5 (white) pixels error. Red denotes all occluded pixels, falling outside the image boundaries. The false color map is scaled to the largest ground truth disparity / flow value.

Test Set Average

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 9.16 % 17.41 % 1.9 px 5.5 px
3 pixels 7.11 % 14.57 % 1.9 px 5.5 px
4 pixels 6.05 % 12.91 % 1.9 px 5.5 px
5 pixels 5.34 % 11.72 % 1.9 px 5.5 px
This table as LaTeX

Reflective Regions

This table as LaTeX

Test Image 0

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 10.11 % 18.42 % 1.3 px 2.5 px
3 pixels 7.78 % 14.64 % 1.3 px 2.5 px
4 pixels 6.53 % 12.21 % 1.3 px 2.5 px
5 pixels 5.57 % 10.45 % 1.3 px 2.5 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 1

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 6.10 % 13.38 % 0.8 px 1.6 px
3 pixels 4.37 % 9.78 % 0.8 px 1.6 px
4 pixels 3.52 % 7.88 % 0.8 px 1.6 px
5 pixels 2.83 % 6.64 % 0.8 px 1.6 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

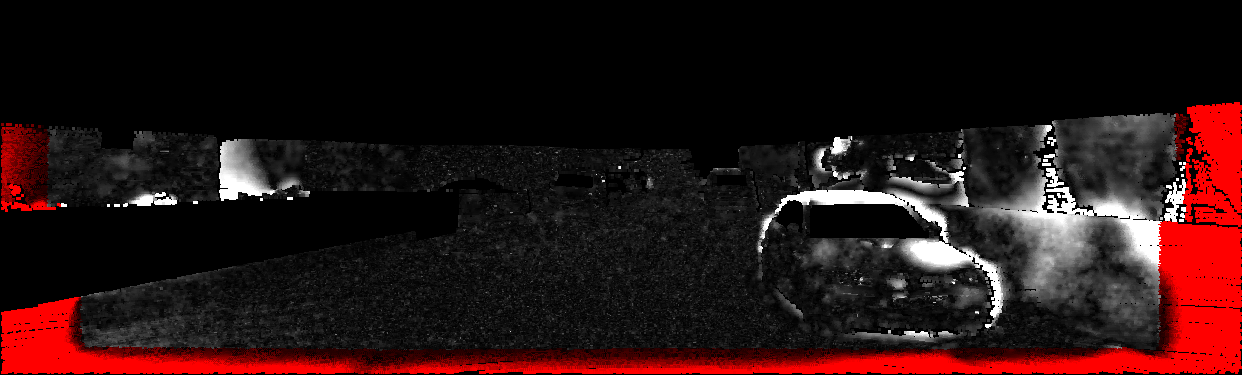

Test Image 2

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 8.01 % 18.36 % 0.8 px 2.2 px
3 pixels 5.21 % 14.45 % 0.8 px 2.2 px
4 pixels 3.42 % 11.74 % 0.8 px 2.2 px
5 pixels 2.41 % 9.96 % 0.8 px 2.2 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

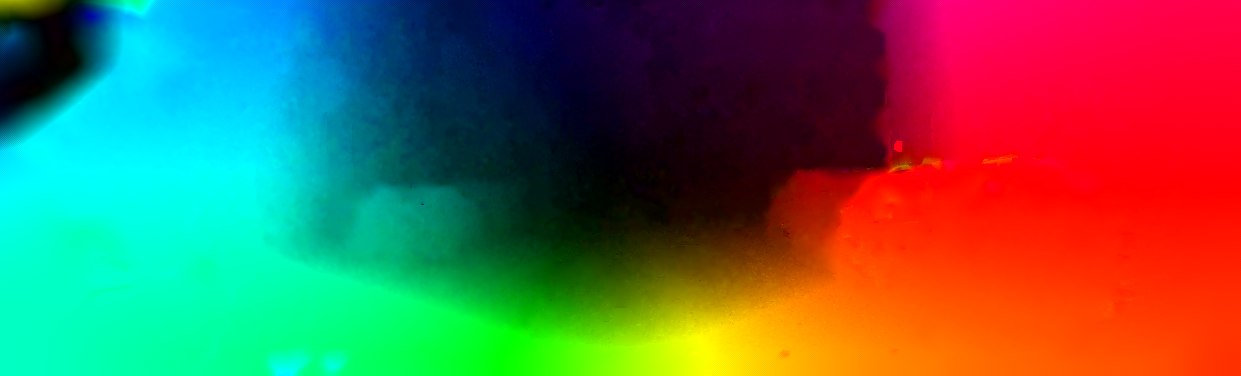

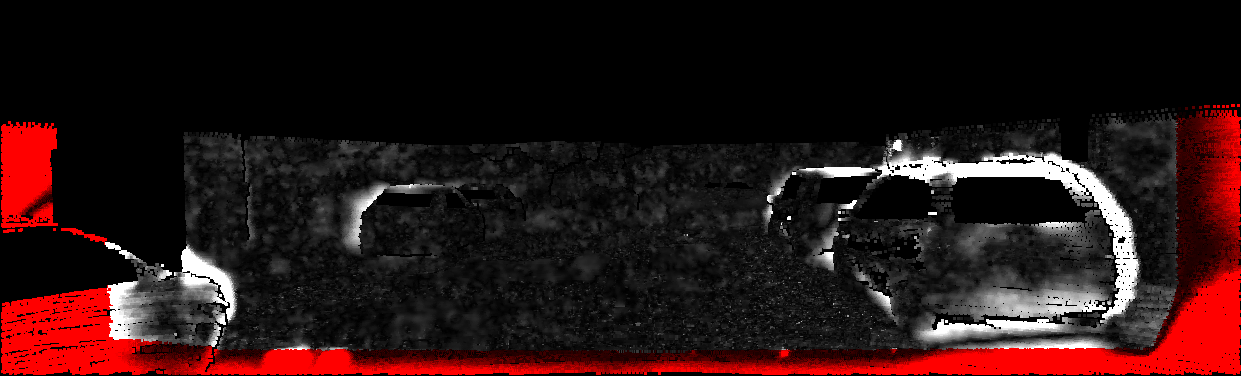

Test Image 3

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 7.36 % 17.98 % 0.9 px 2.7 px
3 pixels 5.11 % 14.64 % 0.9 px 2.7 px
4 pixels 3.63 % 12.05 % 0.9 px 2.7 px
5 pixels 2.81 % 10.23 % 0.9 px 2.7 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 4

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 4.40 % 6.74 % 0.8 px 1.2 px
3 pixels 2.71 % 4.11 % 0.8 px 1.2 px
4 pixels 1.86 % 3.11 % 0.8 px 1.2 px
5 pixels 1.34 % 2.52 % 0.8 px 1.2 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 5

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 8.71 % 19.49 % 1.6 px 8.8 px
3 pixels 7.13 % 17.16 % 1.6 px 8.8 px
4 pixels 6.26 % 15.64 % 1.6 px 8.8 px
5 pixels 5.65 % 14.45 % 1.6 px 8.8 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

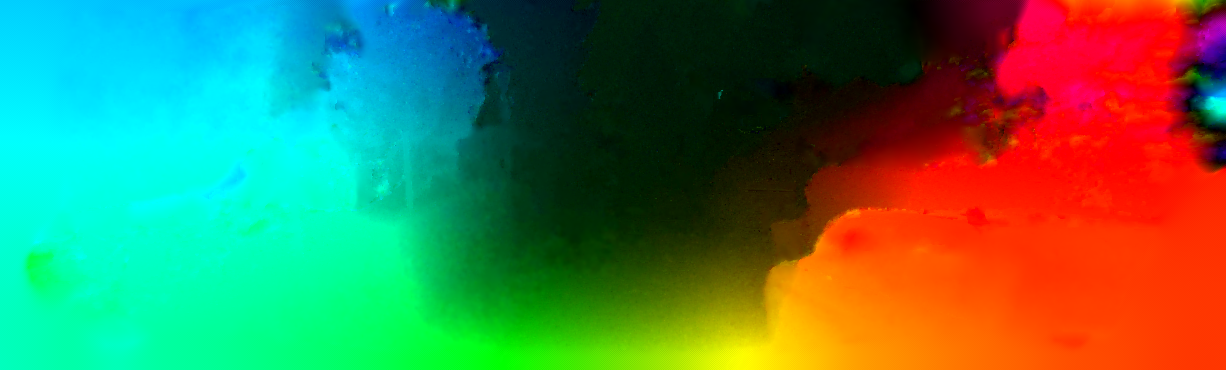

Test Image 6

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 8.56 % 14.38 % 1.1 px 3.2 px
3 pixels 6.29 % 10.83 % 1.1 px 3.2 px
4 pixels 5.08 % 9.25 % 1.1 px 3.2 px
5 pixels 4.14 % 8.27 % 1.1 px 3.2 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

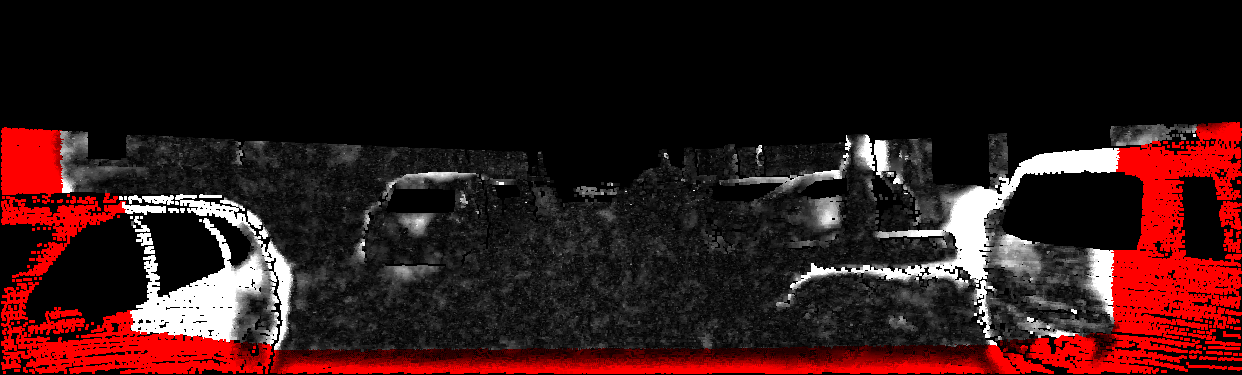

Test Image 7

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 12.64 % 23.68 % 2.6 px 9.5 px
3 pixels 9.69 % 19.97 % 2.6 px 9.5 px
4 pixels 8.09 % 17.58 % 2.6 px 9.5 px
5 pixels 7.14 % 15.80 % 2.6 px 9.5 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

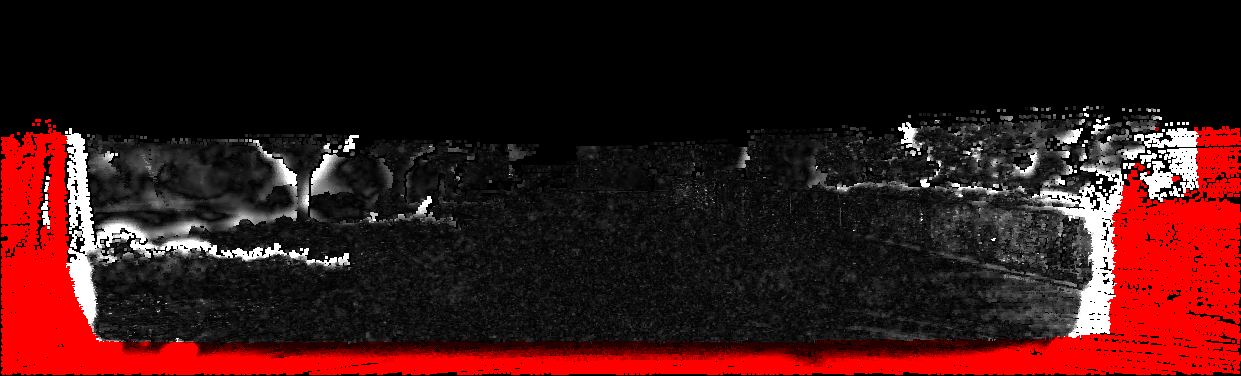

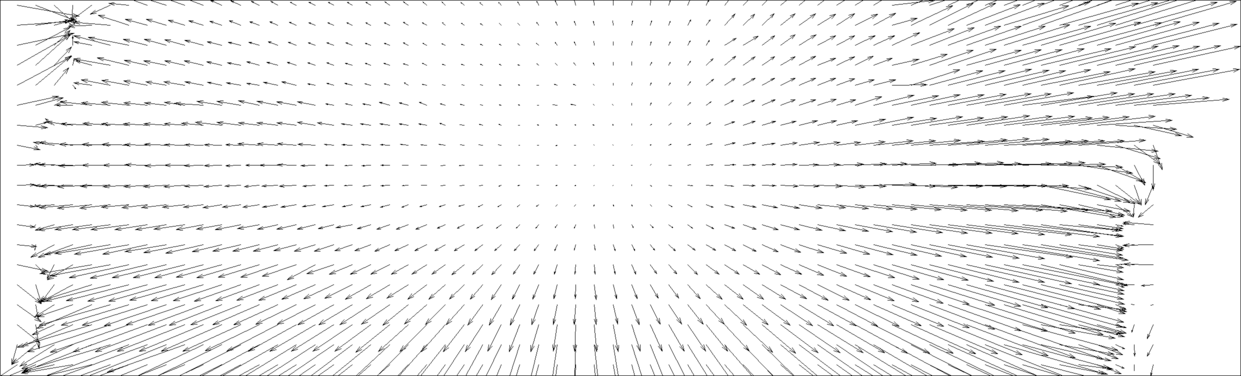

Test Image 8

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 6.23 % 20.17 % 1.2 px 10.9 px
3 pixels 4.53 % 18.08 % 1.2 px 10.9 px
4 pixels 3.75 % 16.89 % 1.2 px 10.9 px
5 pixels 3.30 % 16.02 % 1.2 px 10.9 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

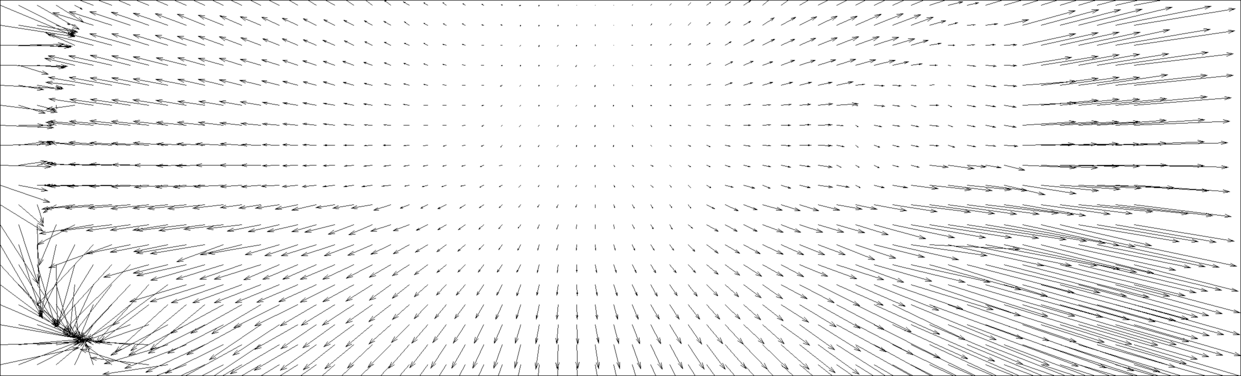

Test Image 9

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 19.17 % 28.75 % 2.4 px 7.9 px
3 pixels 14.74 % 23.92 % 2.4 px 7.9 px
4 pixels 11.51 % 20.05 % 2.4 px 7.9 px
5 pixels 9.54 % 17.20 % 2.4 px 7.9 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 10

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 6.61 % 19.06 % 0.8 px 3.8 px
3 pixels 4.42 % 15.90 % 0.8 px 3.8 px
4 pixels 3.20 % 13.79 % 0.8 px 3.8 px
5 pixels 2.56 % 12.39 % 0.8 px 3.8 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 11

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 11.18 % 20.19 % 1.5 px 3.7 px
3 pixels 7.48 % 15.17 % 1.5 px 3.7 px
4 pixels 5.51 % 11.89 % 1.5 px 3.7 px
5 pixels 4.47 % 10.02 % 1.5 px 3.7 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

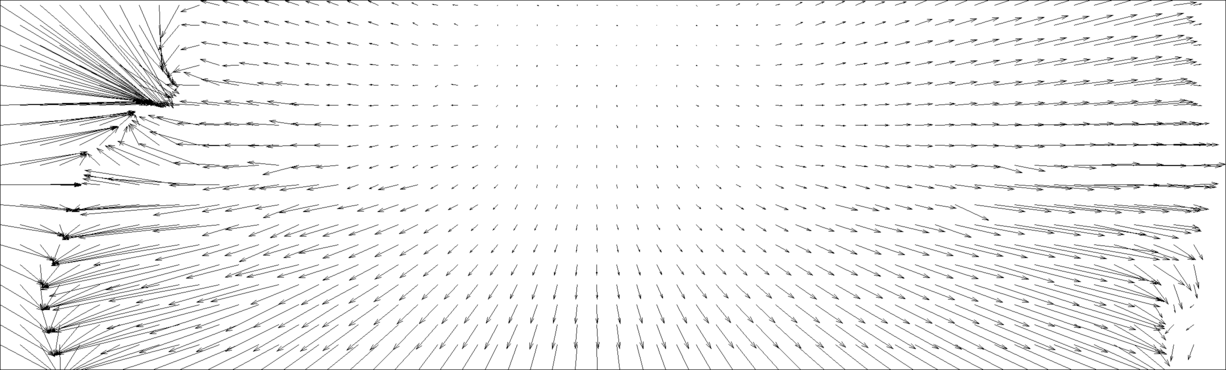

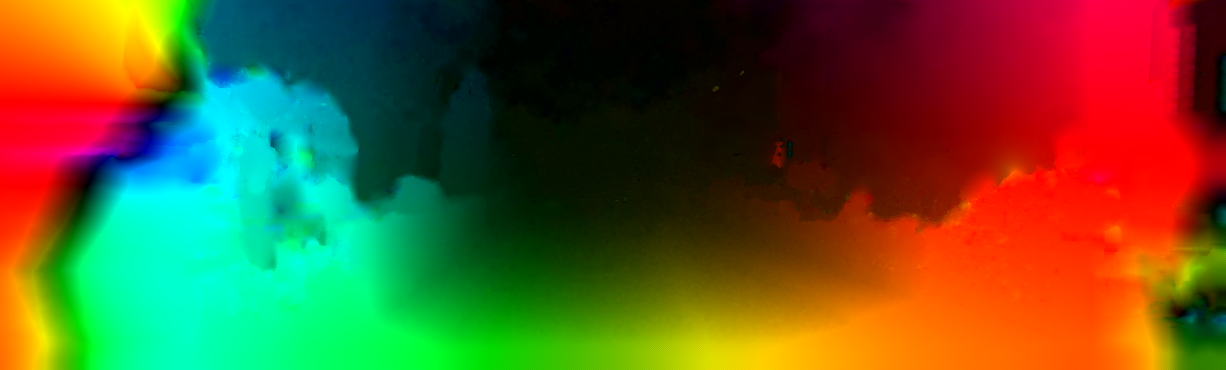

Test Image 12

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 12.30 % 22.64 % 2.6 px 12.4 px
3 pixels 10.49 % 20.17 % 2.6 px 12.4 px
4 pixels 9.45 % 18.35 % 2.6 px 12.4 px
5 pixels 8.49 % 16.74 % 2.6 px 12.4 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

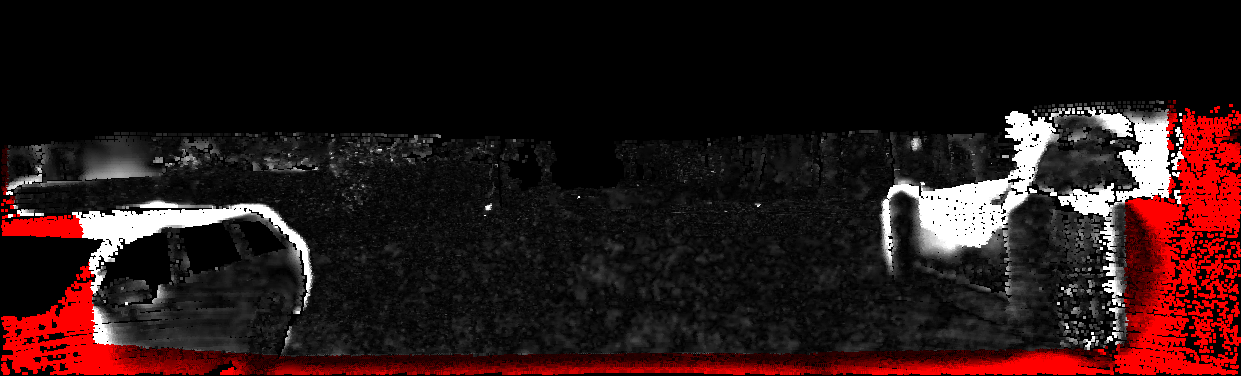

Test Image 13

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 7.29 % 14.19 % 1.4 px 3.1 px
3 pixels 6.08 % 11.71 % 1.4 px 3.1 px
4 pixels 5.48 % 10.14 % 1.4 px 3.1 px
5 pixels 5.05 % 9.23 % 1.4 px 3.1 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

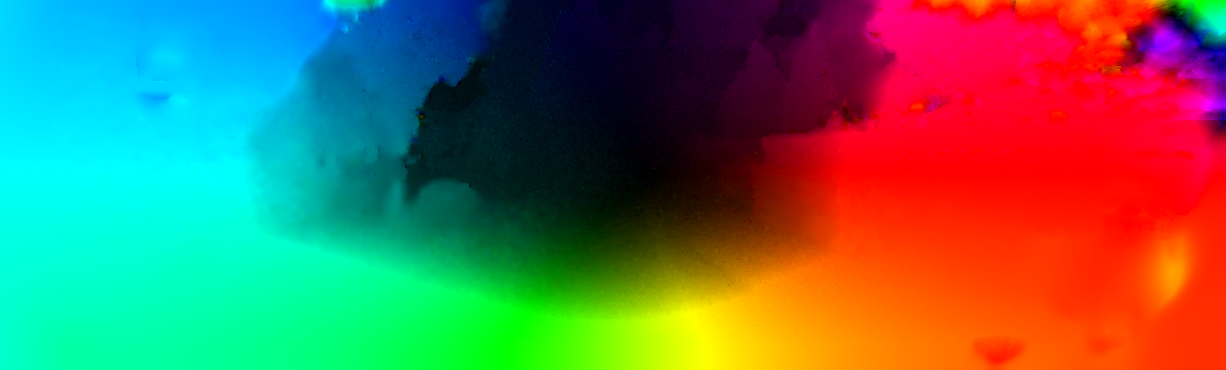

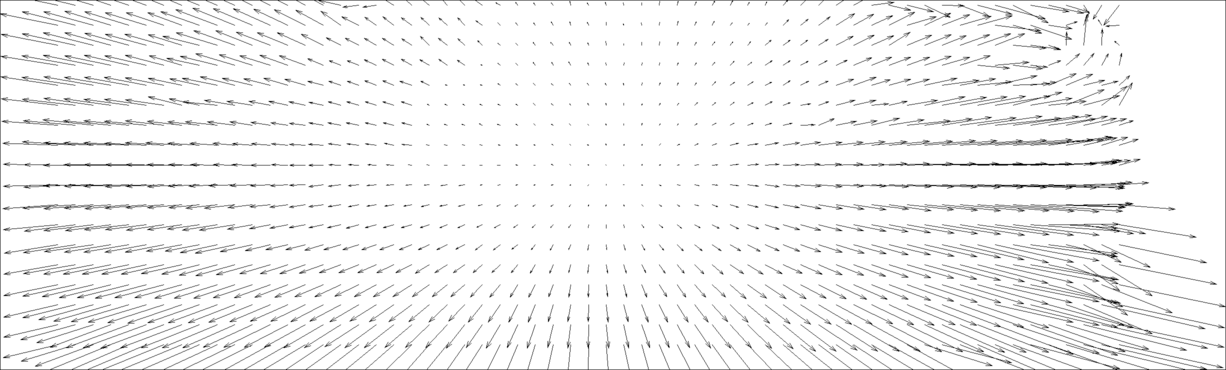

Test Image 14

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 7.91 % 20.06 % 1.0 px 5.6 px
3 pixels 5.88 % 17.08 % 1.0 px 5.6 px
4 pixels 4.56 % 15.17 % 1.0 px 5.6 px
5 pixels 3.83 % 14.02 % 1.0 px 5.6 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 15

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 15.16 % 28.02 % 2.7 px 14.0 px
3 pixels 13.08 % 25.71 % 2.7 px 14.0 px
4 pixels 11.62 % 24.04 % 2.7 px 14.0 px
5 pixels 10.30 % 22.56 % 2.7 px 14.0 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 16

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 2.73 % 7.78 % 0.6 px 1.1 px
3 pixels 1.19 % 5.40 % 0.6 px 1.1 px
4 pixels 0.71 % 4.24 % 0.6 px 1.1 px
5 pixels 0.49 % 3.55 % 0.6 px 1.1 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

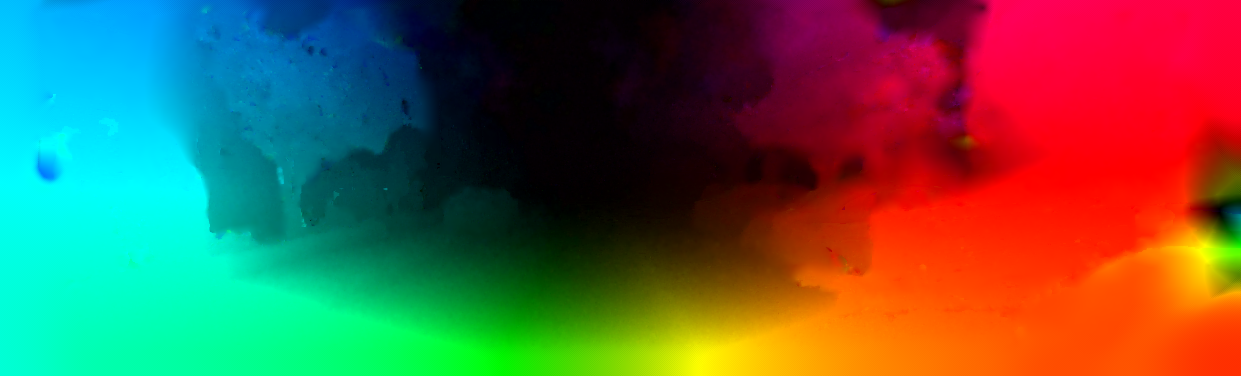

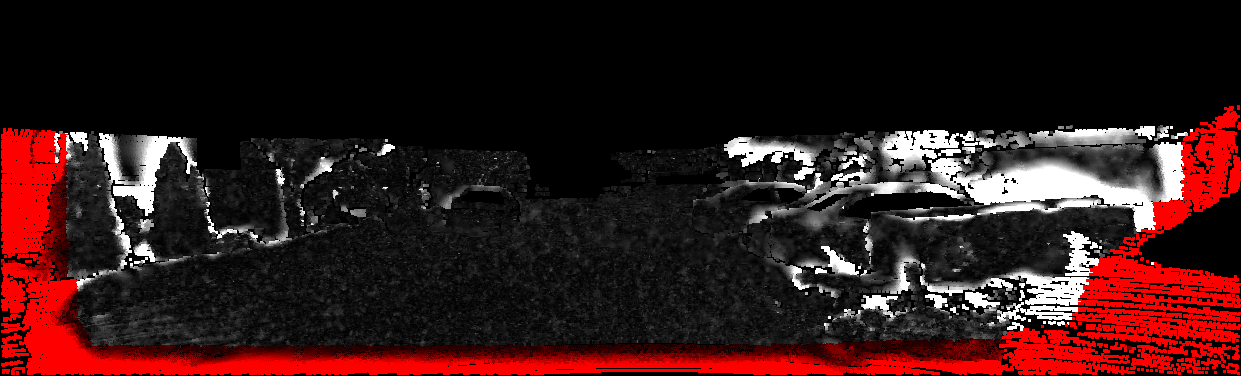

Test Image 17

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 11.14 % 21.08 % 1.3 px 5.0 px
3 pixels 8.72 % 17.72 % 1.3 px 5.0 px
4 pixels 7.03 % 15.39 % 1.3 px 5.0 px
5 pixels 5.73 % 13.59 % 1.3 px 5.0 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

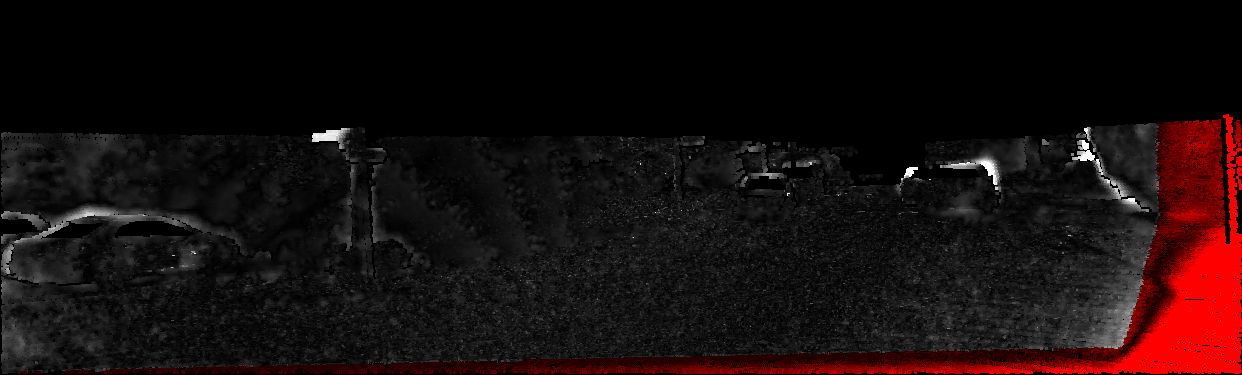

Test Image 18

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 0.96 % 5.96 % 0.4 px 0.9 px
3 pixels 0.34 % 3.63 % 0.4 px 0.9 px
4 pixels 0.18 % 2.87 % 0.4 px 0.9 px
5 pixels 0.08 % 2.51 % 0.4 px 0.9 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 19

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 3.36 % 8.00 % 0.6 px 1.1 px
3 pixels 2.53 % 5.86 % 0.6 px 1.1 px
4 pixels 2.04 % 4.64 % 0.6 px 1.1 px
5 pixels 1.68 % 3.84 % 0.6 px 1.1 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot
