Method

Stereo Visual Odometry with Flow Separation [st] [VOFS]


Submitted on 15 Mar. 2012 11:04 by
Pablo Fernández Alcantarilla (Université d'Auvergne)

Running time:0.51 s
Environment:1 core @ 2.0 Ghz (C/C++)

Method Description:
Stereo Visual Odometry with flow separation. We use the Levenberg-Marquardt algorithm for the nonlinear optimization.

Firstly the rotation is estimated with a 2-point RANSAC algorithm using the distant features that are farther than a distance threshold (50 m). Then, with the estimated rotation, the translation is estimated with the closer features using a 1-point RANSAC approach.
Parameters:
Flow Separation
depth_threshold = 50 m
Latex Bibtex:
@inproceedings{Kaess2009ICRA,
author = {Michael Kaess and Kai Ni and Frank Dellaert},
title = {Flow separation for fast and robust stereo odometry},
booktitle = ICRA,
address = {Kobe, Japan},
year = {2009}
}

@inproceedings{Alcantarilla10icra,
author = {P.F. Alcantarilla and L.M. Bergasa and F. Dellaert},
title = {Visual Odometry priors for robust {EKF-SLAM}},
booktitle = ICRA,
address = {Anchorage, AK, USA},
year = {2010},
pages = {3501--3506}
}

Detailed Results

From all test sequences (sequences 11-21), our benchmark computes translational and rotational errors for all possible subsequences of length (5,10,50,100,150,...,400) meters. Our evaluation ranks methods according to the average of those values, where errors are measured in percent (for translation) and in degrees per meter (for rotation). Details for different trajectory lengths and driving speeds can be found in the plots underneath. Furthermore, the first 5 test trajectories and error plots are shown below.

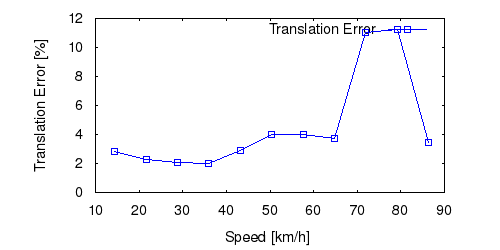

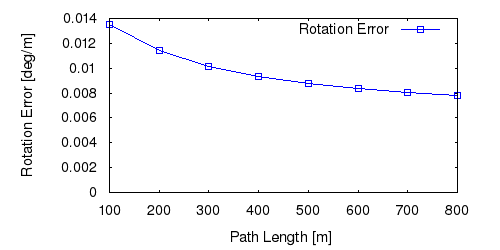

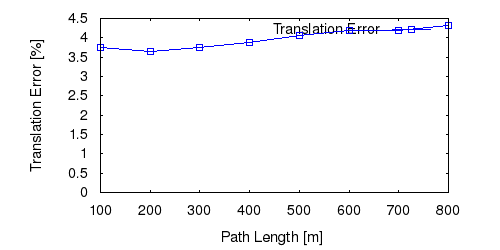

Test Set Average


This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot

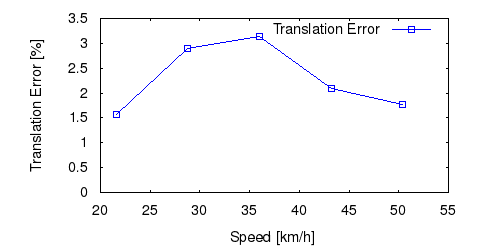

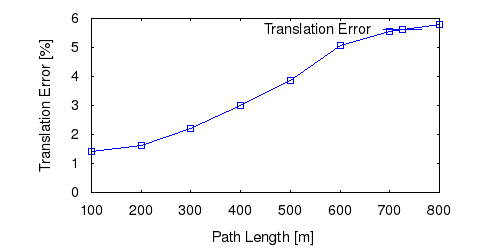

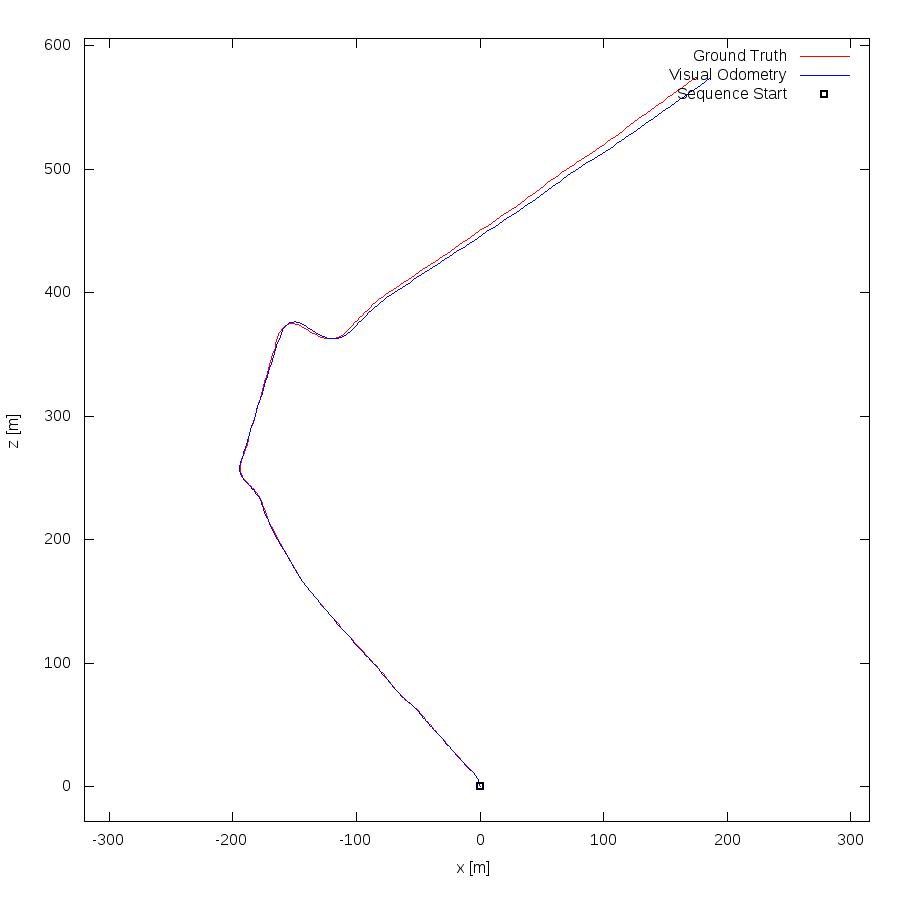

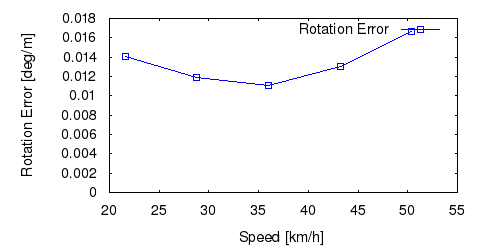

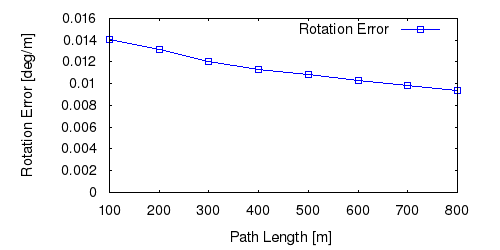

Sequence 11


This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot

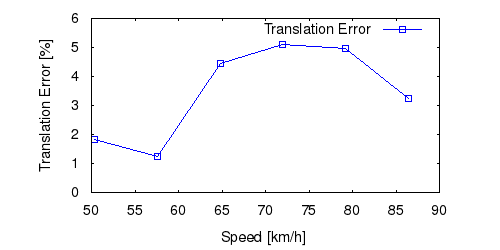

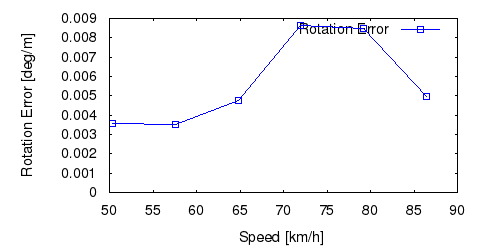

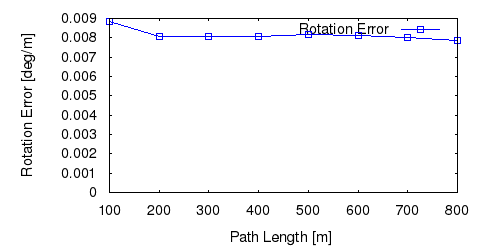

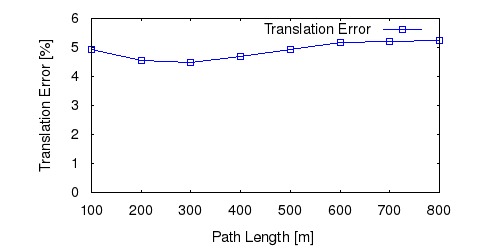

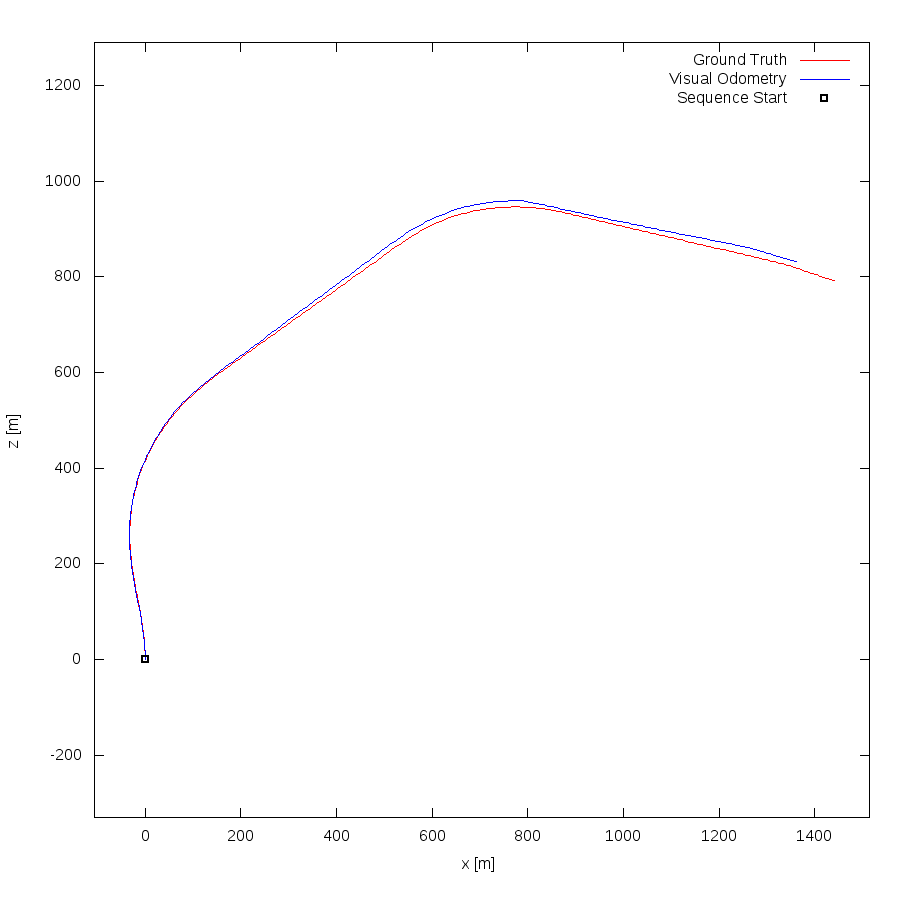

Sequence 12


This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot

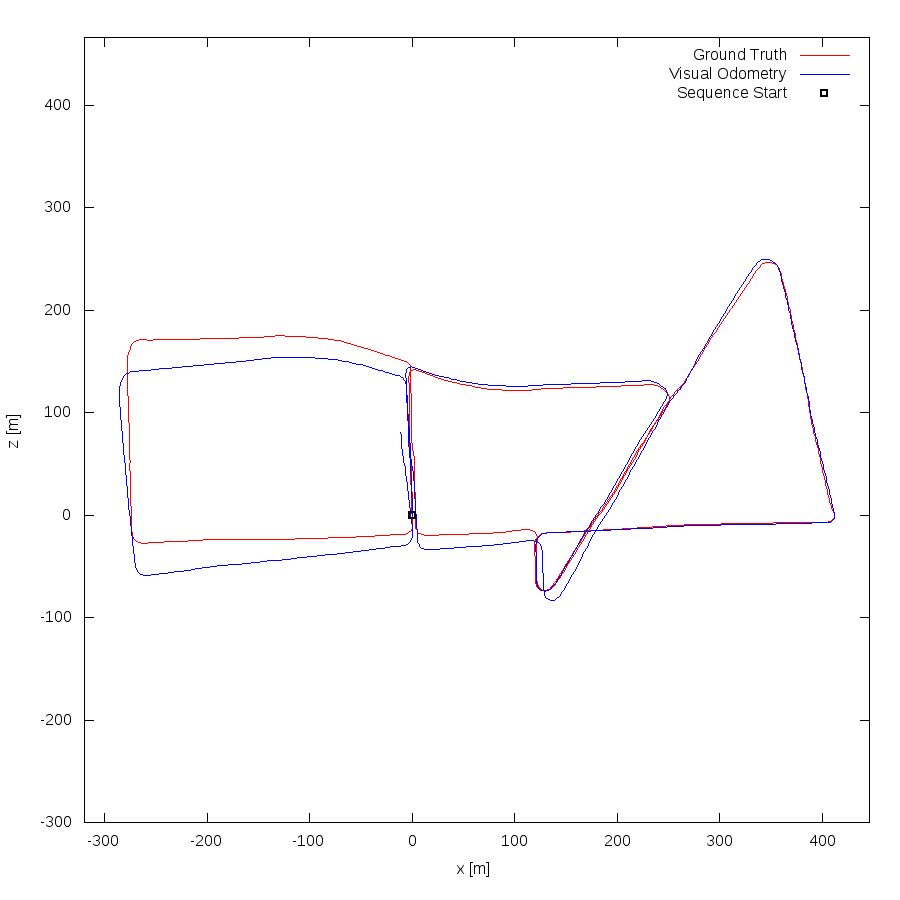

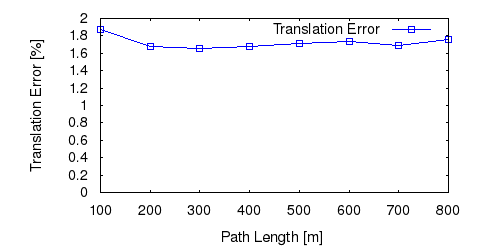

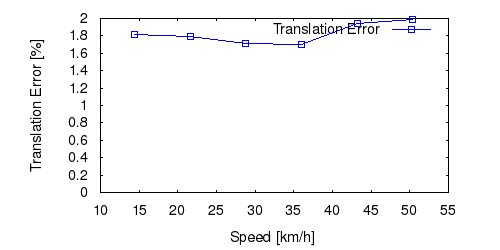

Sequence 13


This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot

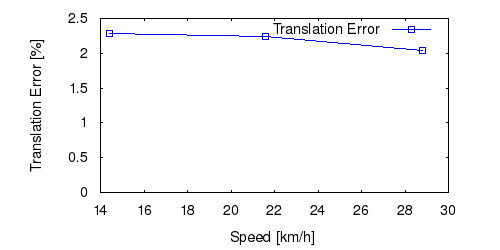

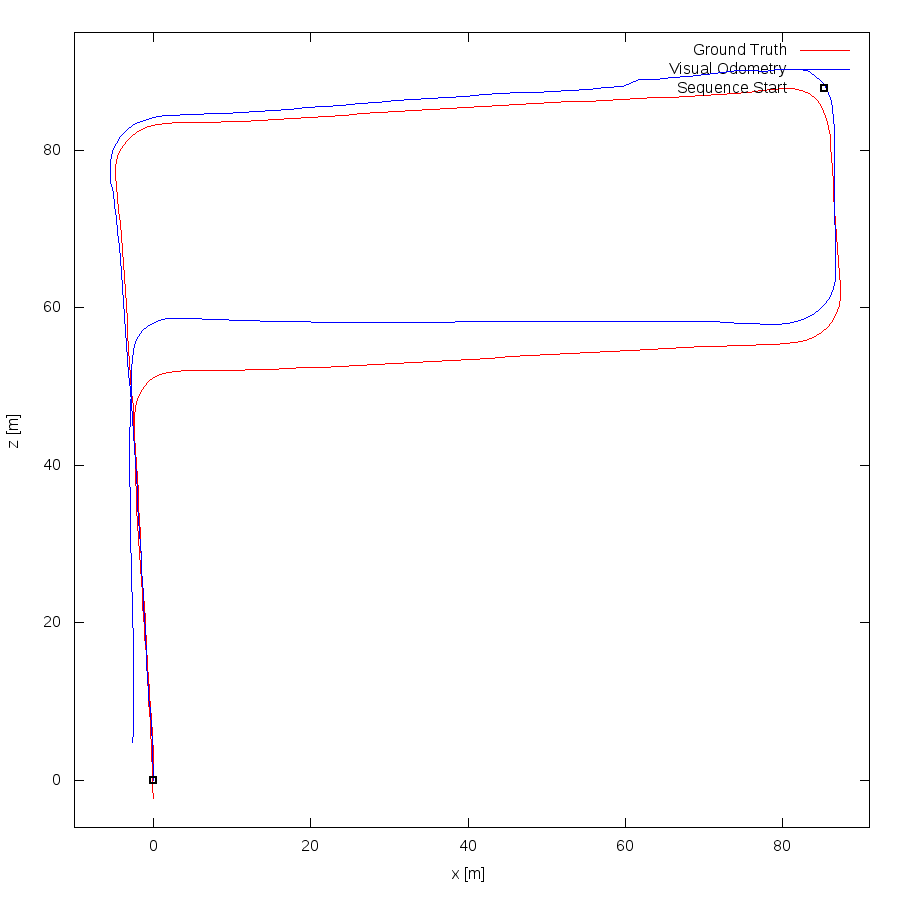

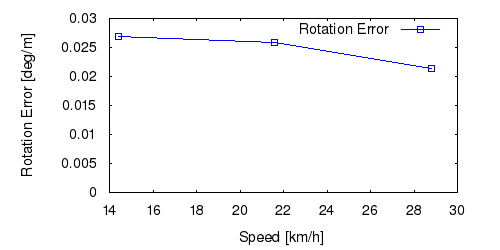

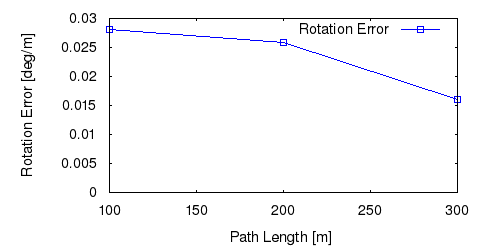

Sequence 14


This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot

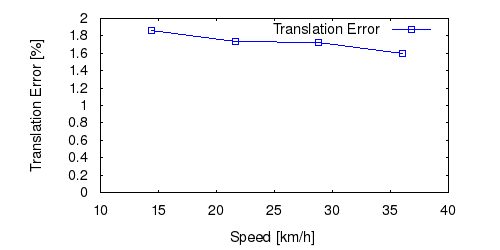

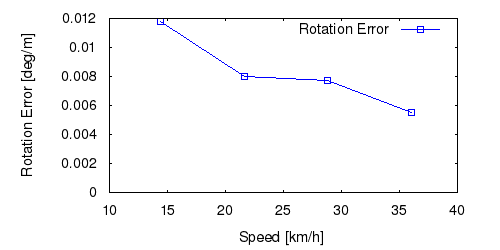

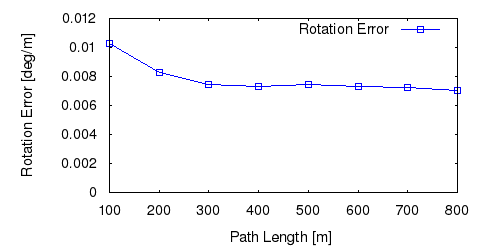

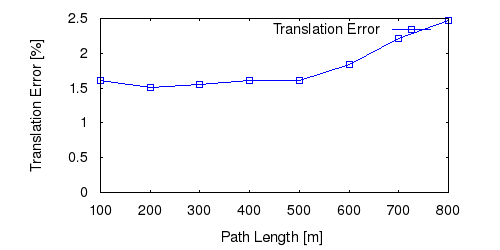

Sequence 15


This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot
