Method

Monocular Multicore Large Scale SFM [MLM-SFM]


Submitted on 28 Apr. 2014 21:41 by
Shiyu Song (UC San Diego)

Running time:0.03 s
Environment:5 cores @ 2.5 Ghz (C/C++)

Method Description:
We present a real-time monocular SFM system that
corrects for scale drift using a novel cue
combination framework for ground plane estimation.
Our ground plane estimation uses multiple cues
like sparse features, dense inter-frame stereo. A
data driven mechanism is proposed to learn models
from training data that relate observation
covariances for each cue to error behavior of its
underlying variables. During testing, this allows
per-frame adaptation of observation covariances
based on relative confidences inferred from visual
data.
Parameters:
Default
Latex Bibtex:
@inproceedings{Song2014CVPR,
author = {Shiyu {Song} and Manmohan
{Chandraker}},
title = {Robust Scale Estimation in Real-Time
Monocular SFM for Autonomous Driving},
booktitle = {CVPR},
month = June # { 24-27, },
year = 2014,
address = {Columbus, Ohio, USA}
}
@inproceedings{song13_visual_odometry,
author = {Shiyu {Song} and Manmohan {Chandraker}
and
Clark C. {Guest}},
title = {Parallel, Real-time Monocular Visual
Odometry},
booktitle = {ICRA},
month = May # { 6-10, },
year = 2013,
address = {Karlsruhe, Germany}
}

Detailed Results

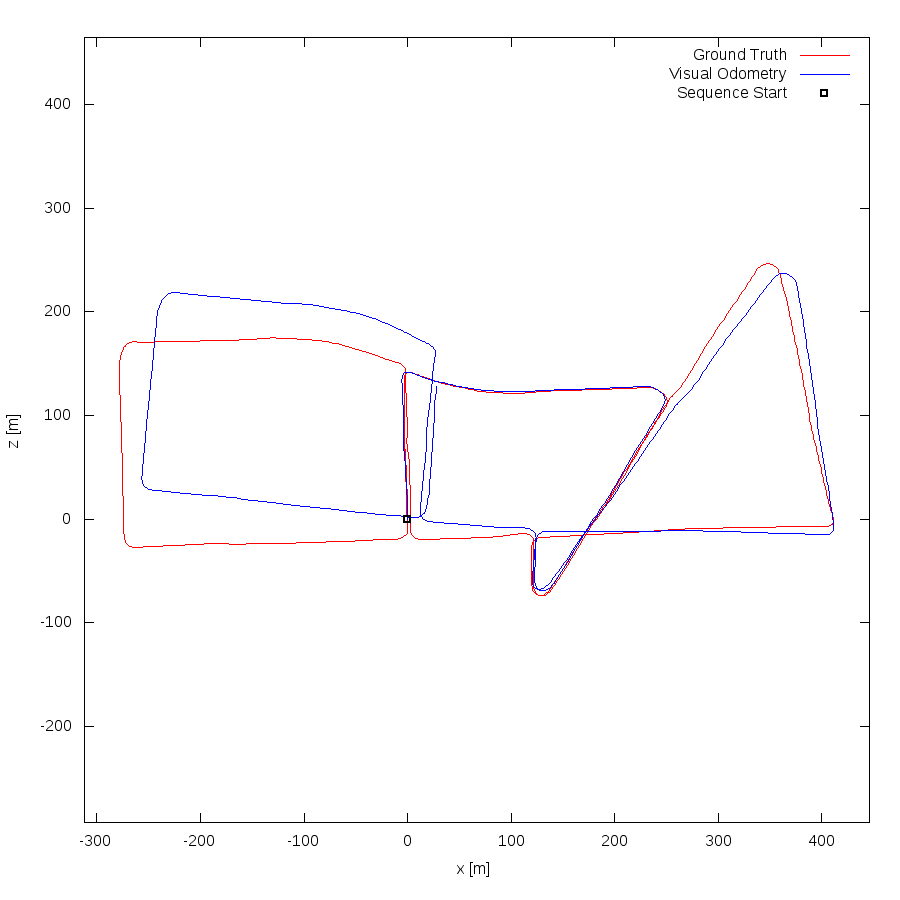

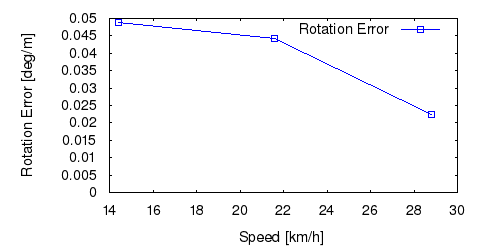

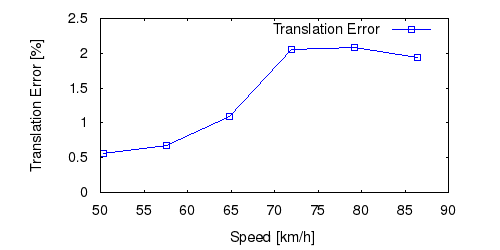

From all test sequences (sequences 11-21), our benchmark computes translational and rotational errors for all possible subsequences of length (5,10,50,100,150,...,400) meters. Our evaluation ranks methods according to the average of those values, where errors are measured in percent (for translation) and in degrees per meter (for rotation). Details for different trajectory lengths and driving speeds can be found in the plots underneath. Furthermore, the first 5 test trajectories and error plots are shown below.

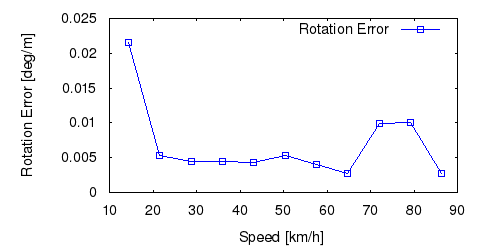

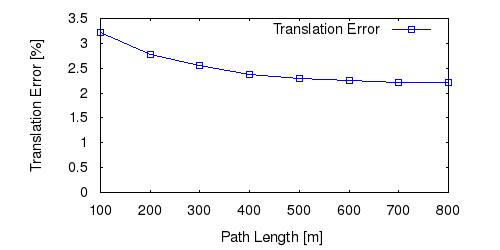

Test Set Average


This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot

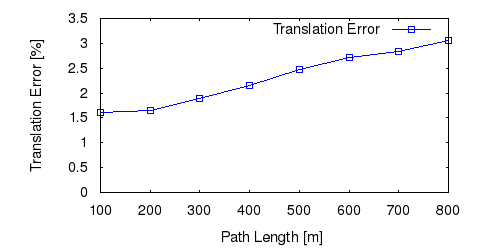

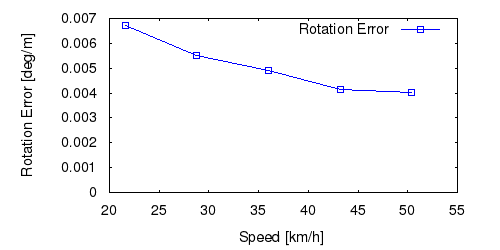

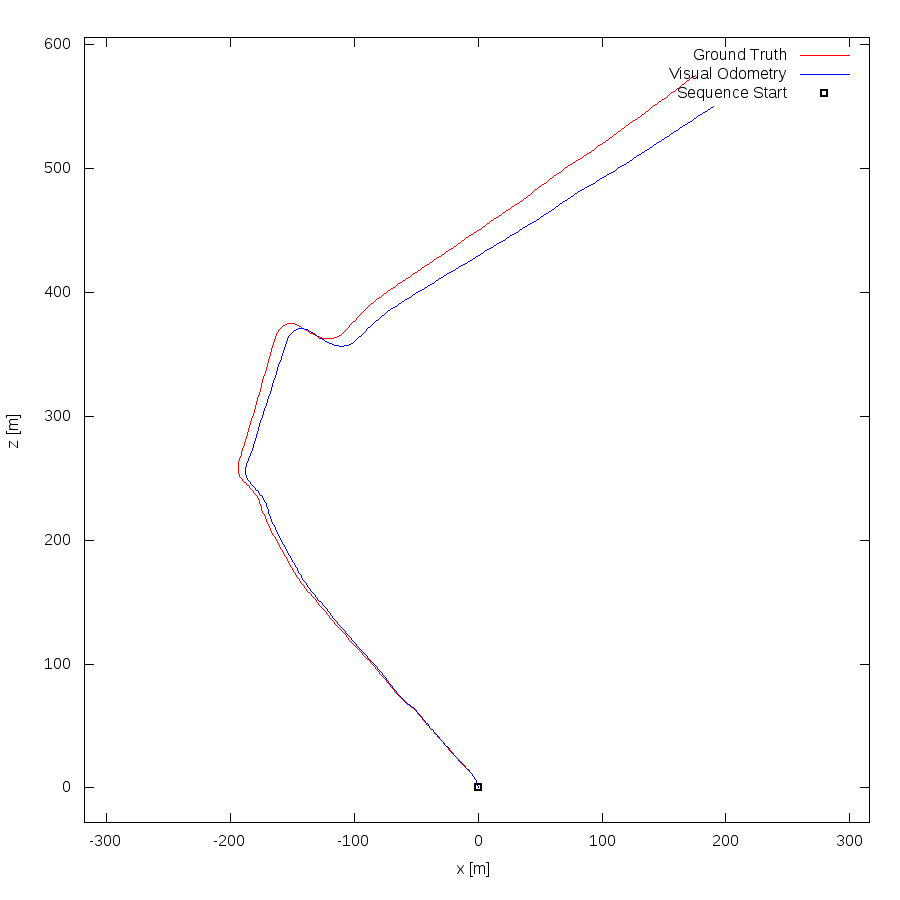

Sequence 11


This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot

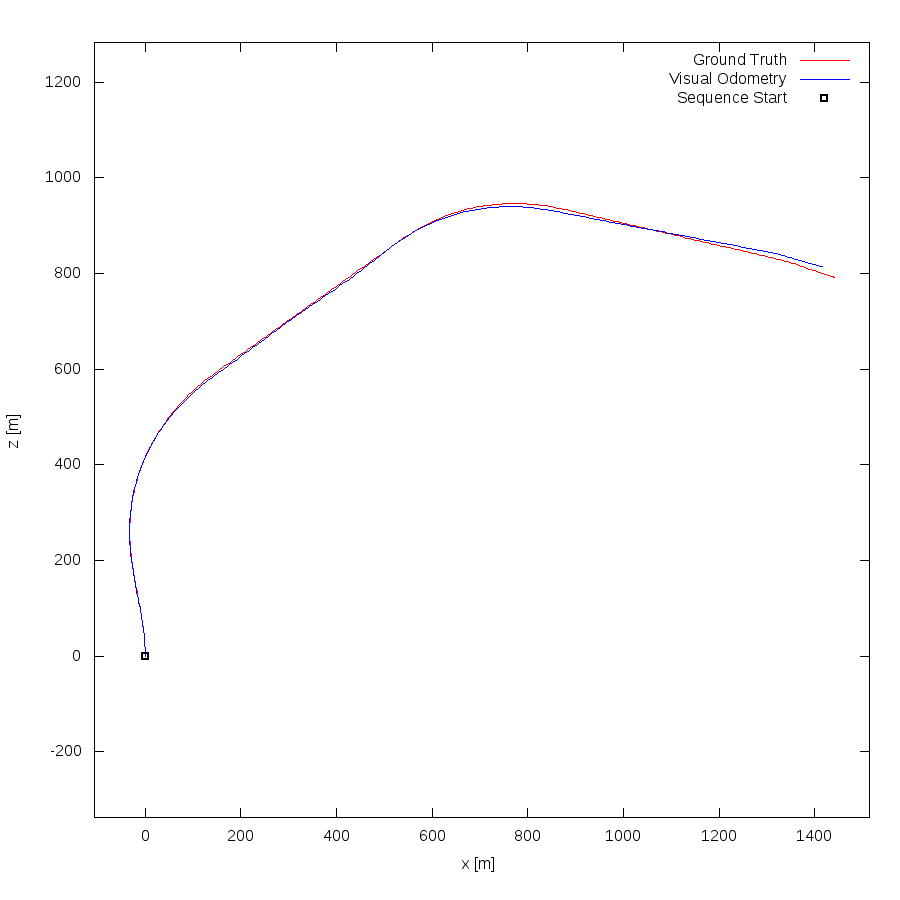

Sequence 12


This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot

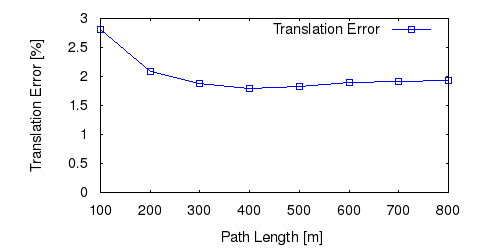

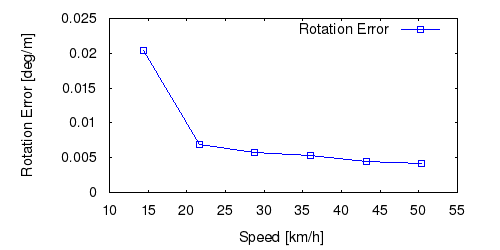

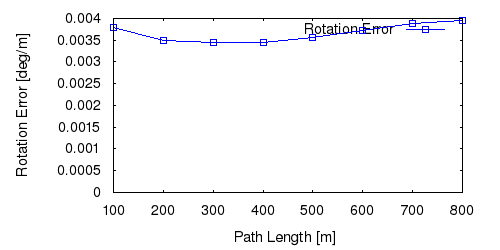

Sequence 13


This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot

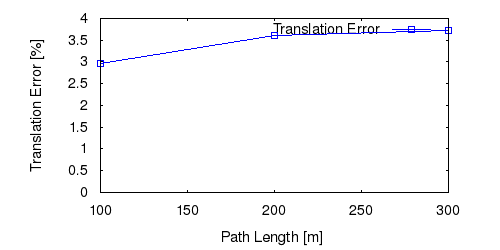

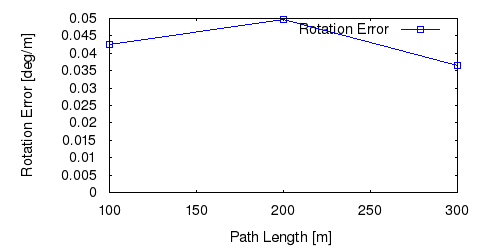

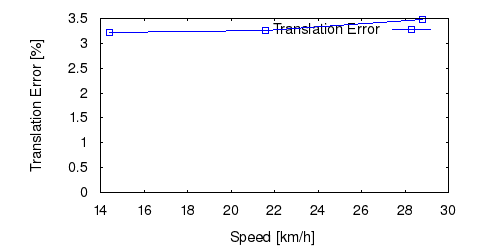

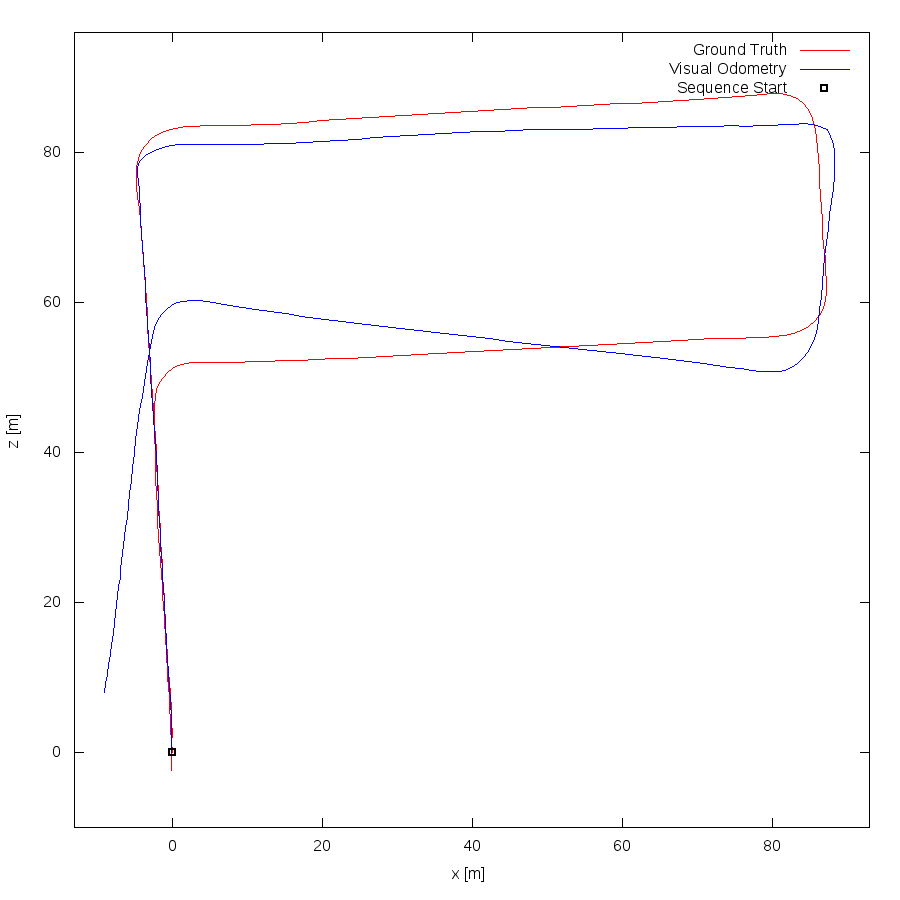

Sequence 14


This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot

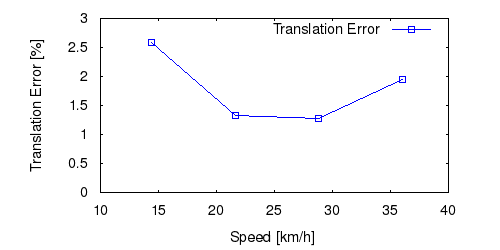

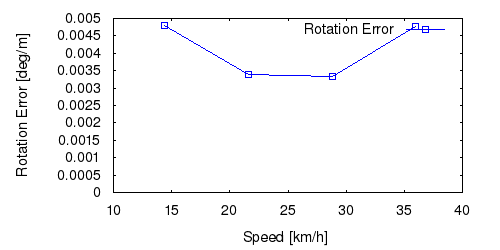

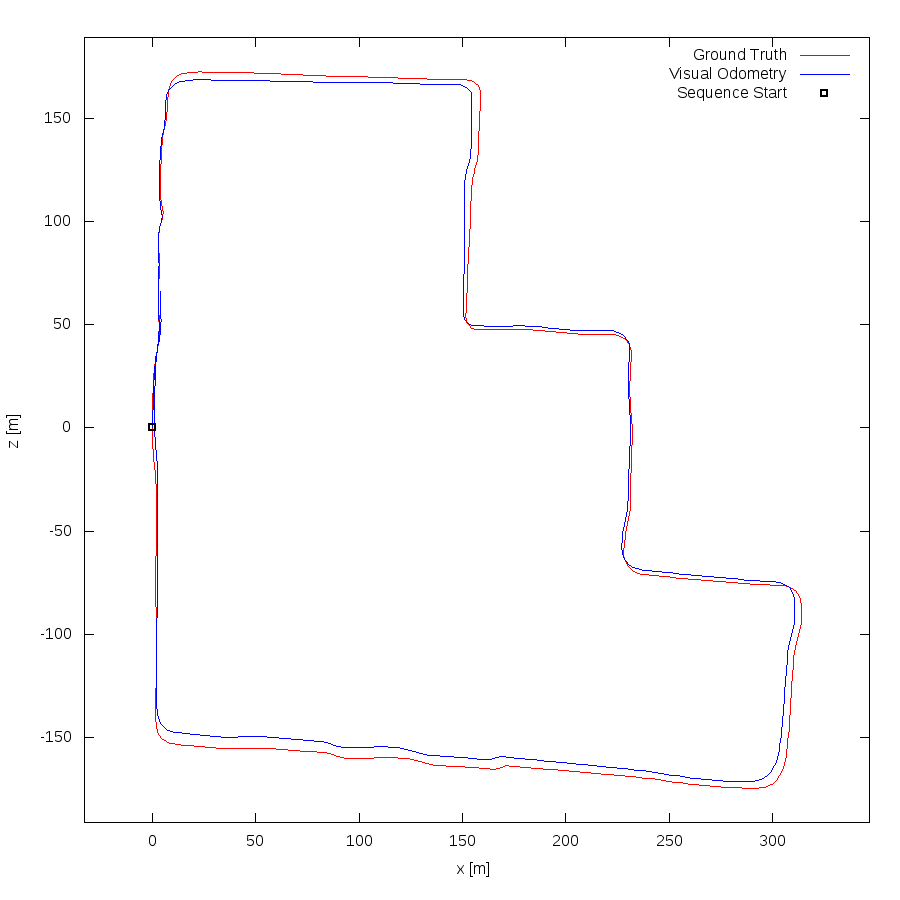

Sequence 15


This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot



This figure as: png eps pdf txt gnuplot
