SemanticVoxels [SemanticVoxels]

Submitted on 30 Sep. 2020 16:53 by
Juncong Fei (Karlsruhe Institute of Technology (KIT))

Running time:0.04 s
Environment:GPU @ 2.5 Ghz (Python + C/C++)

Method Description:
3D pedestrian detection is a challenging task
in automated driving because pedestrians are
relatively small, frequently occluded and
easily confused with narrow vertical objects.
LiDAR and camera are two commonly used sensor
modalities for this task, which should provide
complementary information. Unexpectedly, LiDAR-
only detection methods tend to outperform
multisensor fusion methods in public
benchmarks. Recently, PointPainting has been
presented to eliminate this performance drop by
effectively fusing the output of a semantic
segmentation network instead of the raw image
information. In this paper, we propose a
generalization of PointPainting to be able to
apply fusion at different levels. After the
semantic augmentation of the point cloud, we
encode raw point data in pillars to get
geometric features and semantic point data in
voxels to get semantic features and fuse them
in an effective way.
See the paper
Latex Bibtex:
title={SemanticVoxels: Sequential Fusion for 3D
Pedestrian Detection using LiDAR Point Cloud
and Semantic Segmentation},
author={Juncong Fei and Wenbo Chen and Philipp
Heidenreich and Sascha Wirges and Christoph

Detailed Results

Object detection and orientation estimation results. Results for object detection are given in terms of average precision (AP) and results for joint object detection and orientation estimation are provided in terms of average orientation similarity (AOS).

Benchmark Easy Moderate Hard
Pedestrian (Detection) 67.62 % 57.22 % 54.90 %
Pedestrian (Orientation) 45.59 % 38.95 % 37.21 %
Pedestrian (3D Detection) 50.90 % 42.19 % 39.52 %
Pedestrian (Bird's Eye View) 58.91 % 49.93 % 47.31 %
This table as LaTeX

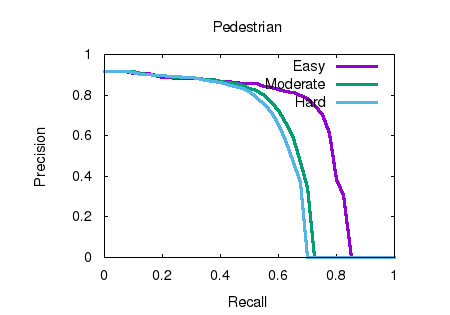

2D object detection results.
This figure as: png eps pdf txt gnuplot

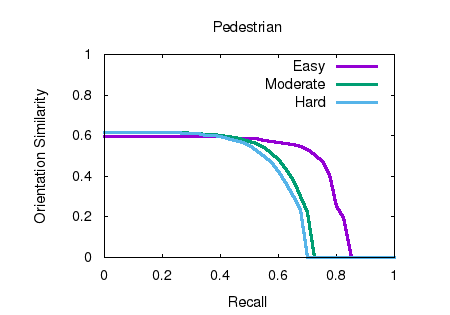

Orientation estimation results.
This figure as: png eps pdf txt gnuplot

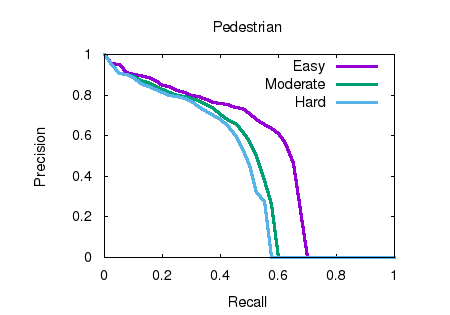

3D object detection results.
This figure as: png eps pdf txt gnuplot

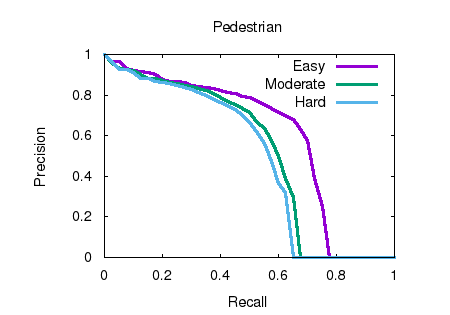

Bird's eye view results.
This figure as: png eps pdf txt gnuplot
