Method

Point-GNN [la] [Point-GNN]
https://github.com/WeijingShi/Point-GNN

Submitted on 12 Nov. 2019 07:47 by
Weijing Shi (CMU)

Running time:0.6 s
Environment:GPU @ 2.5 Ghz (Python)

Method Description:
1070ti
Parameters:
1070ti
Latex Bibtex:
@misc{shi2020pointgnn,
title={Point-GNN: Graph Neural Network for 3D
Object Detection in a Point Cloud},
author={Weijing Shi and Ragunathan (Raj)
Rajkumar},
year={2020},
booktitle = {CVPR}
}

Detailed Results

Object detection and orientation estimation results. Results for object detection are given in terms of average precision (AP) and results for joint object detection and orientation estimation are provided in terms of average orientation similarity (AOS).


Benchmark Easy Moderate Hard
Car (Detection) 96.58 % 93.50 % 88.35 %
Car (Orientation) 38.66 % 37.20 % 36.29 %
Car (3D Detection) 88.33 % 79.47 % 72.29 %
Car (Bird's Eye View) 93.11 % 89.17 % 83.90 %
Pedestrian (Detection) 71.59 % 58.20 % 54.06 %
Pedestrian (Orientation) 39.16 % 31.86 % 29.65 %
Pedestrian (3D Detection) 51.92 % 43.77 % 40.14 %
Pedestrian (Bird's Eye View) 55.36 % 47.07 % 44.61 %
Cyclist (Detection) 85.75 % 75.08 % 68.69 %
Cyclist (Orientation) 36.29 % 32.37 % 29.81 %
Cyclist (3D Detection) 78.60 % 63.48 % 57.08 %
Cyclist (Bird's Eye View) 81.17 % 67.28 % 59.67 %
This table as LaTeX

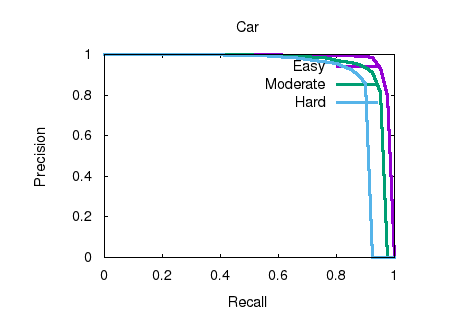

2D object detection results.
This figure as: png eps pdf txt gnuplot

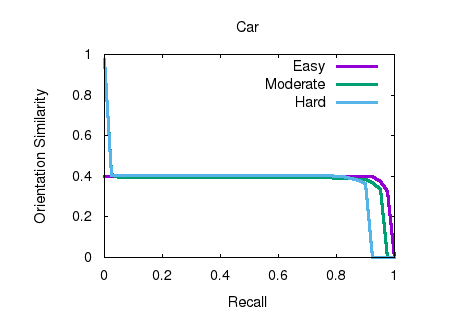

Orientation estimation results.
This figure as: png eps pdf txt gnuplot

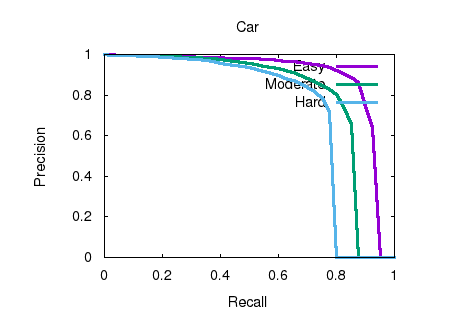

3D object detection results.
This figure as: png eps pdf txt gnuplot



Bird's eye view results.
This figure as: png eps pdf txt gnuplot

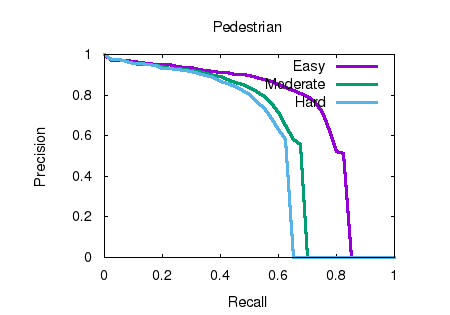

2D object detection results.
This figure as: png eps pdf txt gnuplot



Orientation estimation results.
This figure as: png eps pdf txt gnuplot

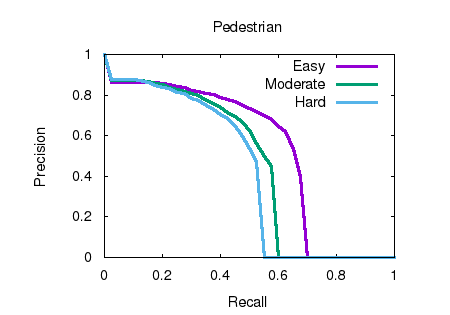

3D object detection results.
This figure as: png eps pdf txt gnuplot

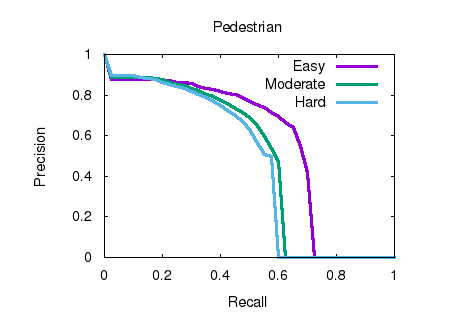

Bird's eye view results.
This figure as: png eps pdf txt gnuplot

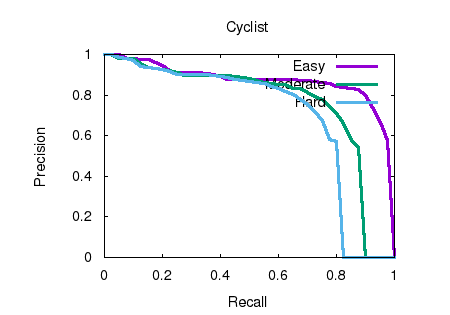

2D object detection results.
This figure as: png eps pdf txt gnuplot



Orientation estimation results.
This figure as: png eps pdf txt gnuplot



3D object detection results.
This figure as: png eps pdf txt gnuplot

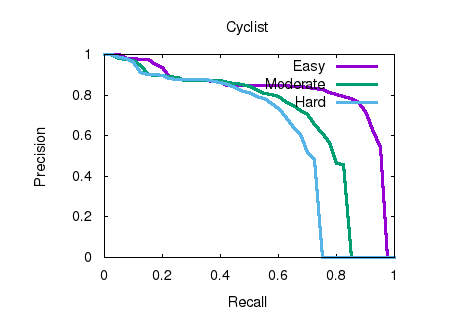

Bird's eye view results.
This figure as: png eps pdf txt gnuplot
