Method

DesNet: Decomposed Scale-Consistent Network for Unsupervised Depth Completion [DesNet]


Submitted on 1 Aug. 2022 10:49 by
Yan zhiqiang (NJUST)

Running time:0.01 s
Environment:GPU @ 2.5 Ghz (Python)

Method Description:
Although depth measurement obtained from LiDAR is
usually sparse, it contains valid and real
distance information, i.e., scale-consistent
absolute depth values. Meanwhile, scale-agnostic
counterparts seek to estimate relative depth and
have achieved impressive performance. To leverage
both the inherent characteristics, we thus suggest
to model scale-consistent depth upon unsupervised
scale-agnostic frameworks. Specifically, we
propose the decomposed scale-consistent learning
(DSCL) strategy, which disintegrates the absolute
depth into relative depth prediction and global
scale estimation, contributing to individual
learning benefits. But unfortunately, most
existing unsupervised scale-agnostic frameworks
heavily suffer from depth holes due to the
extremely sparse depth input and weak supervisory
signal. To tackle this issue, we introduce the
global depth guidance (GDG) module, which
attentively propagates dense depth reference into
the sparse target via novel dense-to-sparse
attention.
Parameters:
http://arxiv.org/abs/2211.10994
Latex Bibtex:
@inproceedings{yan2023desnet,
title={Desnet: Decomposed Scale-Consistent
Network for Unsupervised Depth Completion},
author={Yan, Zhiqiang and Wang, Kun and Li,
Xiang and Zhang, Zhenyu and Li, Jun and Yang,
Jian},
booktitle={AAAI (oral)},
volume={37},
number={3},
pages={3109--3117},
year={2023}
}

Detailed Results

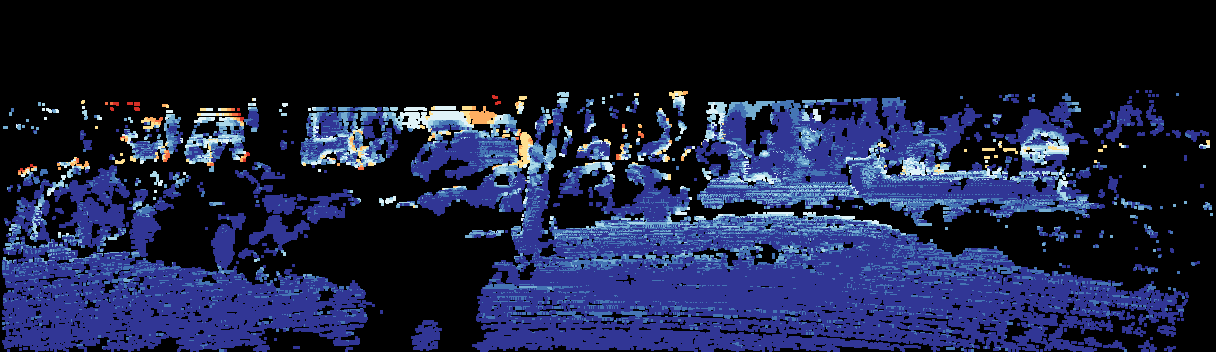

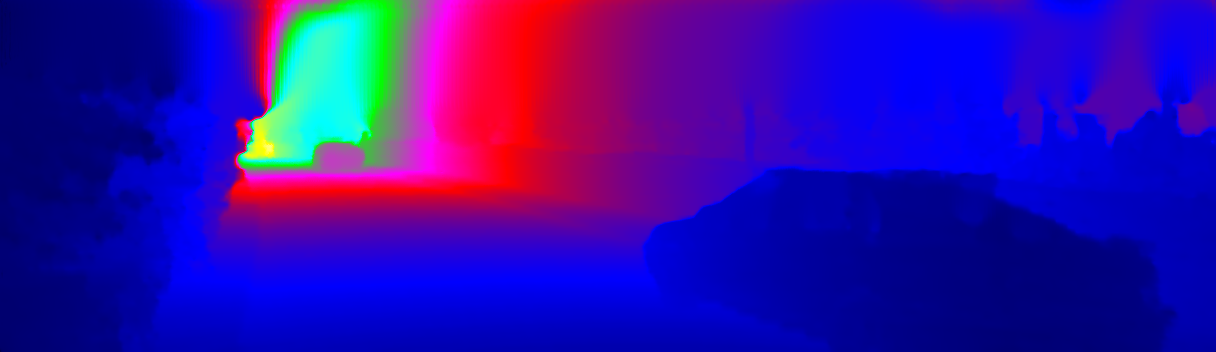

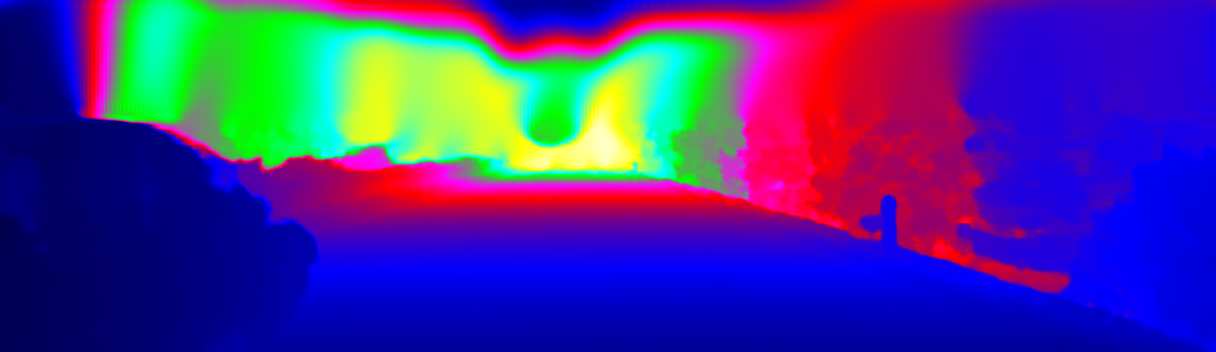

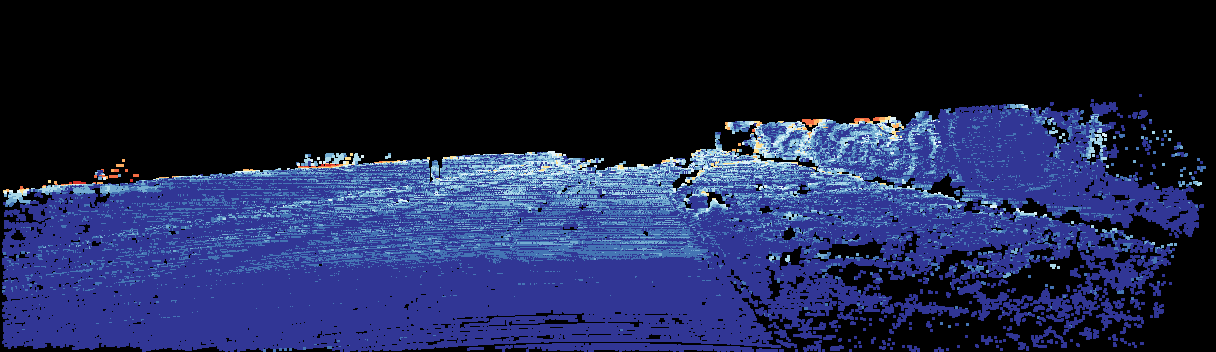

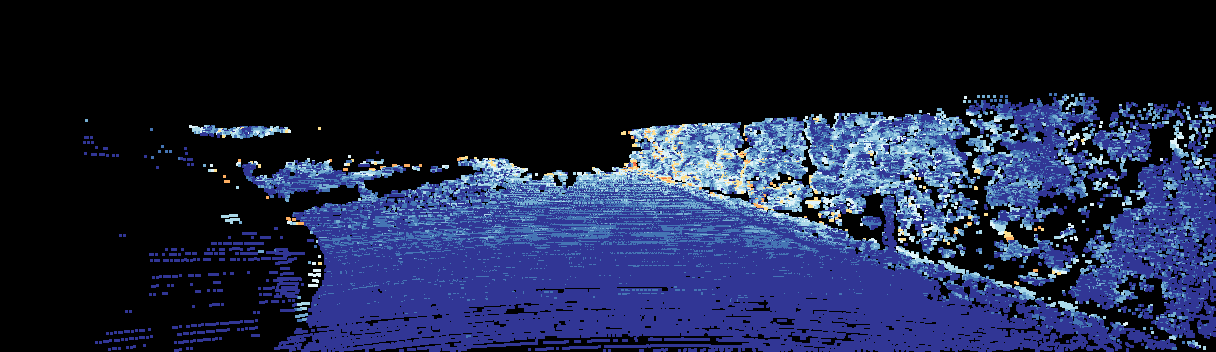

This page provides detailed results for the method(s) selected. For the first 20 test images, the percentage of erroneous pixels is depicted in the table. We use the error metric described in Sparsity Invariant CNNs (THREEDV 2017), which considers a pixel to be correctly estimated if the disparity or flow end-point error is <3px or <5% (for scene flow this criterion needs to be fulfilled for both disparity maps and the flow map). Underneath, the left input image, the estimated results and the error maps are shown (for disp_0/disp_1/flow/scene_flow, respectively). The error map uses the log-color scale described in Sparsity Invariant CNNs (THREEDV 2017), depicting correct estimates (<3px or <5% error) in blue and wrong estimates in red color tones. Dark regions in the error images denote the occluded pixels which fall outside the image boundaries. The false color maps of the results are scaled to the largest ground truth disparity values / flow magnitudes.

Test Set Average

iRMSE iMAE RMSE MAE
Error 2.95 1.13 938.45 266.24
This table as LaTeX

Test Image 0

iRMSE iMAE RMSE MAE
Error 2.70 0.86 1014.38 228.36
This table as LaTeX

Input Image

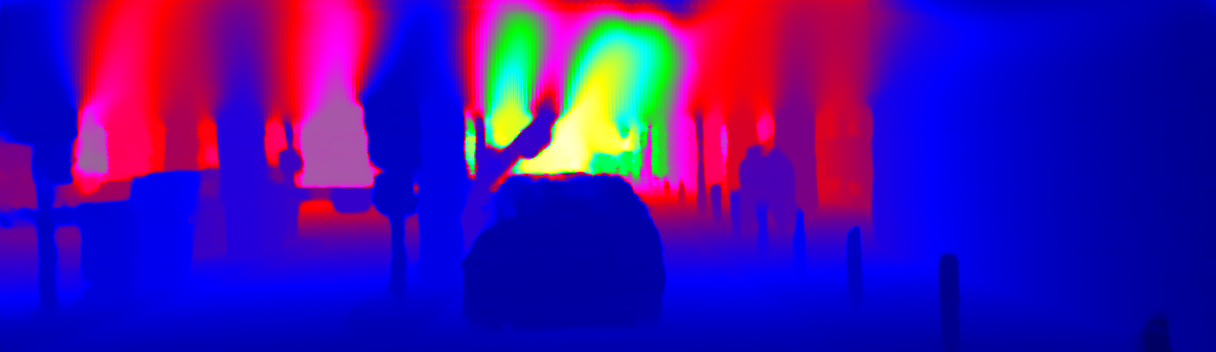

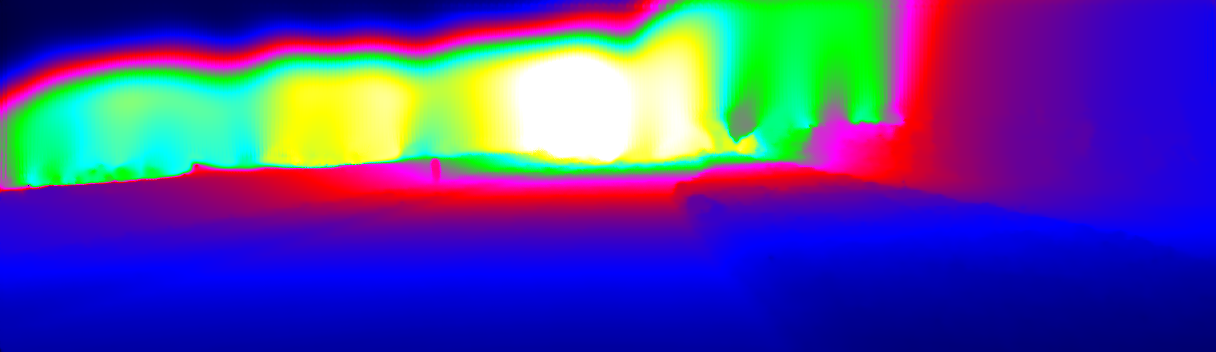

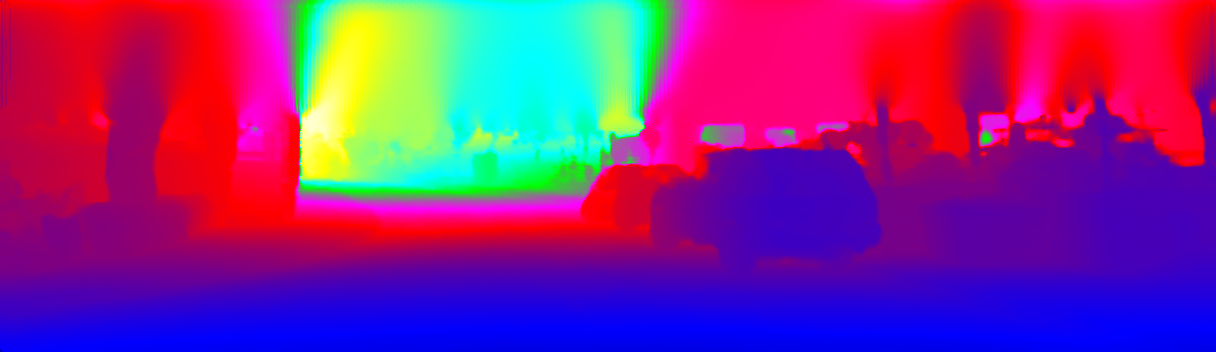

D1 Result

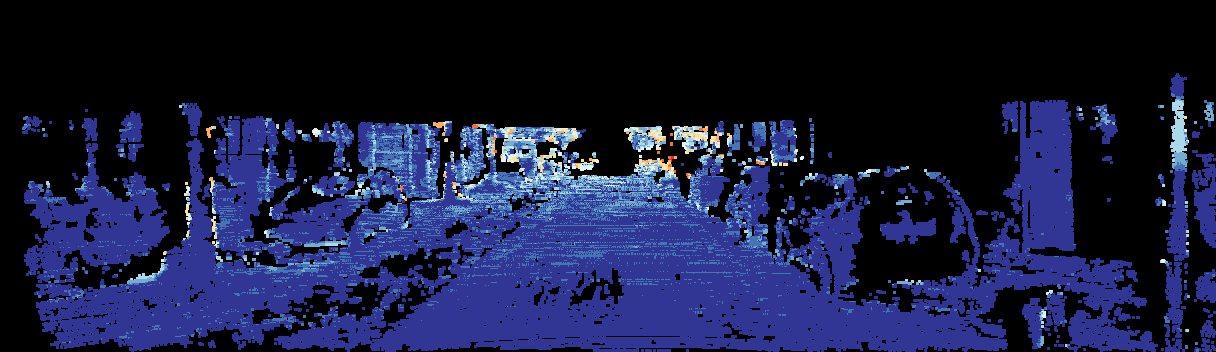

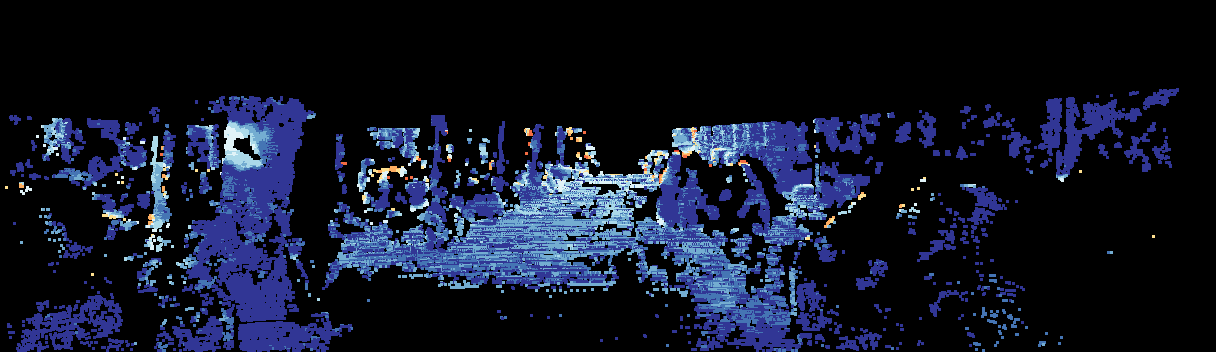

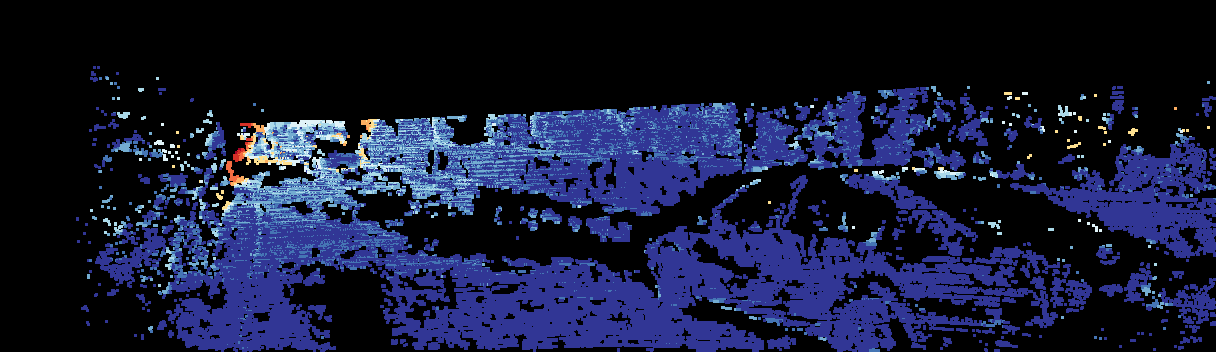

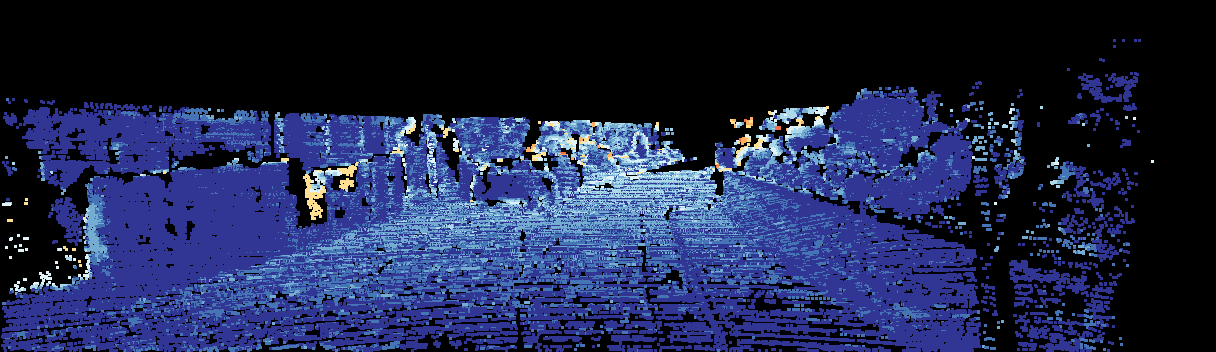

D1 Error


Test Image 1

iRMSE iMAE RMSE MAE
Error 3.17 1.07 856.08 128.89
This table as LaTeX

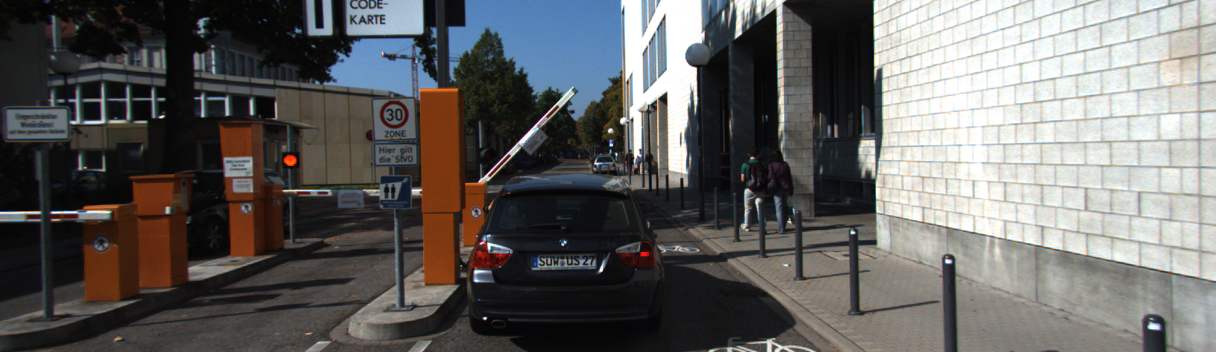

Input Image

D1 Result

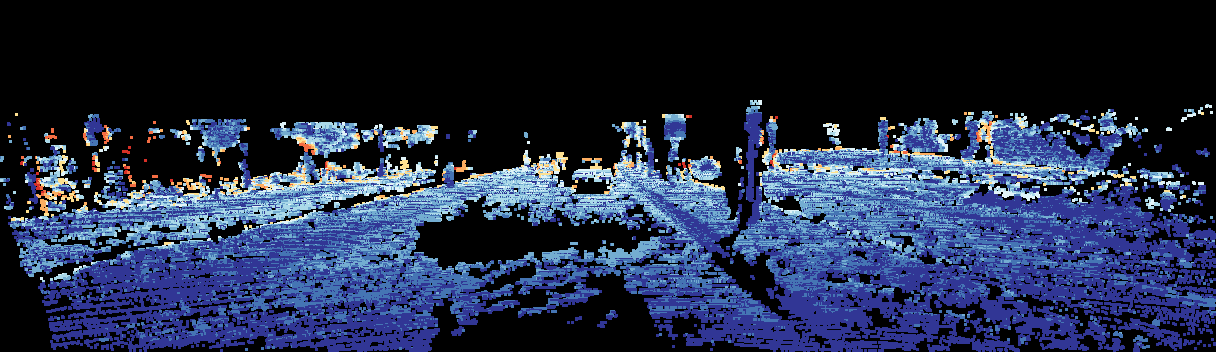

D1 Error


Test Image 2

iRMSE iMAE RMSE MAE
Error 2.38 1.61 1474.18 514.83
This table as LaTeX

Input Image

D1 Result

D1 Error


Test Image 3

iRMSE iMAE RMSE MAE
Error 4.25 1.82 724.88 285.74
This table as LaTeX

Input Image

D1 Result

D1 Error


Test Image 4

iRMSE iMAE RMSE MAE
Error 3.25 1.70 598.34 249.63
This table as LaTeX

Input Image

D1 Result

D1 Error


Test Image 5

iRMSE iMAE RMSE MAE
Error 4.62 1.18 861.24 213.09
This table as LaTeX

Input Image

D1 Result

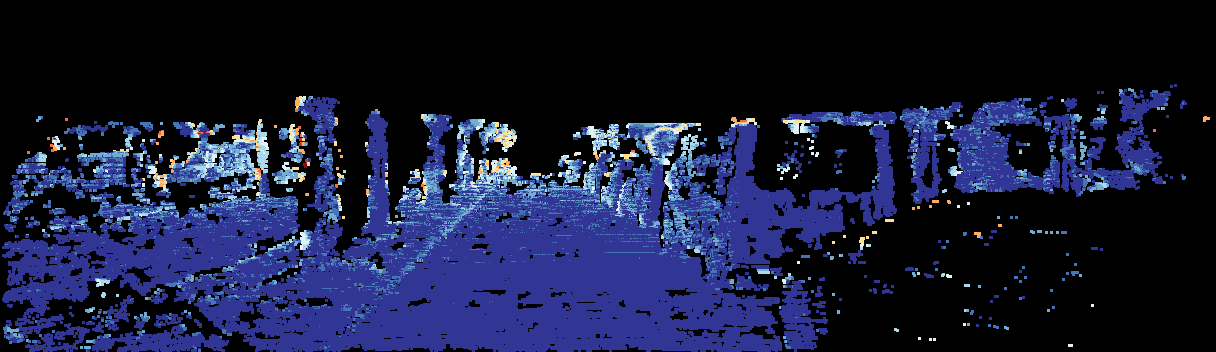

D1 Error


Test Image 6

iRMSE iMAE RMSE MAE
Error 9.34 1.92 1378.82 264.53
This table as LaTeX

Input Image

D1 Result

D1 Error


Test Image 7

iRMSE iMAE RMSE MAE
Error 4.51 1.59 1155.51 215.29
This table as LaTeX

Input Image

D1 Result

D1 Error


Test Image 8

iRMSE iMAE RMSE MAE
Error 2.05 0.79 914.41 208.47
This table as LaTeX

Input Image

D1 Result

D1 Error


Test Image 9

iRMSE iMAE RMSE MAE
Error 2.31 1.24 1175.78 300.14
This table as LaTeX

Input Image

D1 Result

D1 Error


Test Image 10

iRMSE iMAE RMSE MAE
Error 1.91 1.37 836.49 431.90
This table as LaTeX

Input Image

D1 Result

D1 Error


Test Image 11

iRMSE iMAE RMSE MAE
Error 2.93 1.27 1383.25 489.93
This table as LaTeX

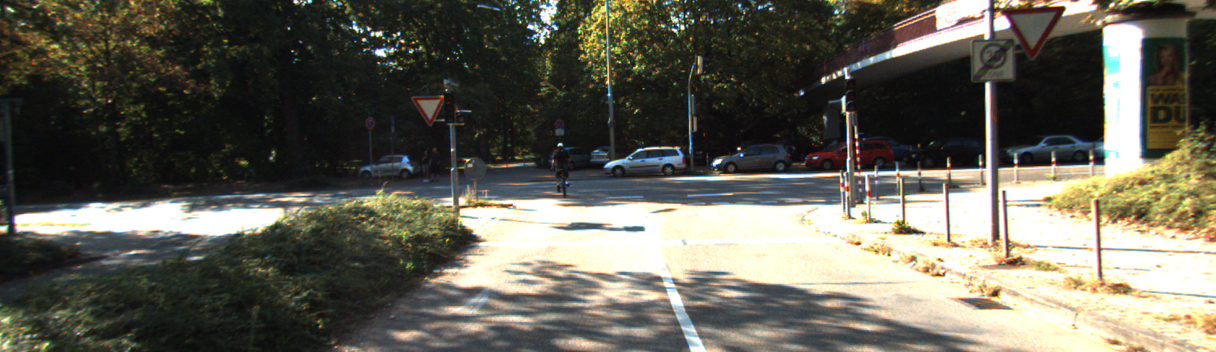

Input Image

D1 Result

D1 Error

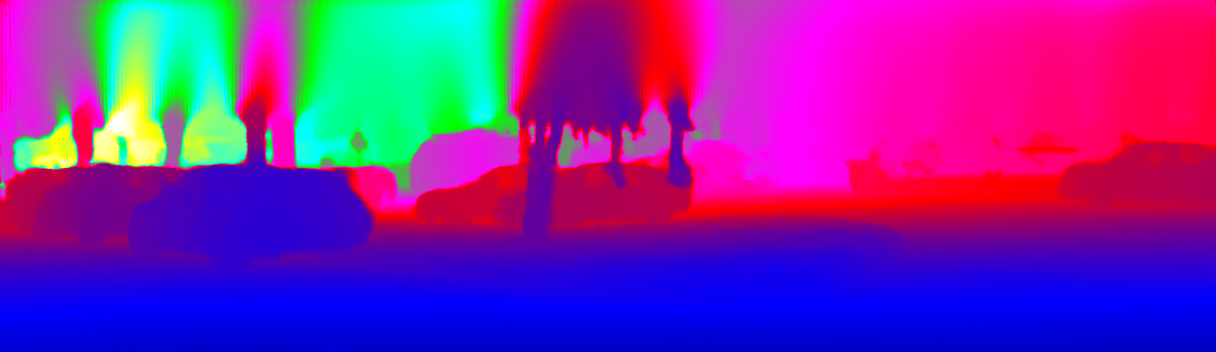

Test Image 12

iRMSE iMAE RMSE MAE
Error 6.11 2.40 1004.89 331.86
This table as LaTeX

Input Image

D1 Result

D1 Error


Test Image 13

iRMSE iMAE RMSE MAE
Error 1.40 0.87 847.69 232.74
This table as LaTeX

Input Image

D1 Result

D1 Error


Test Image 14

iRMSE iMAE RMSE MAE
Error 3.34 1.08 718.82 191.07
This table as LaTeX

Input Image

D1 Result

D1 Error


Test Image 15

iRMSE iMAE RMSE MAE
Error 4.71 1.77 628.53 219.18
This table as LaTeX

Input Image

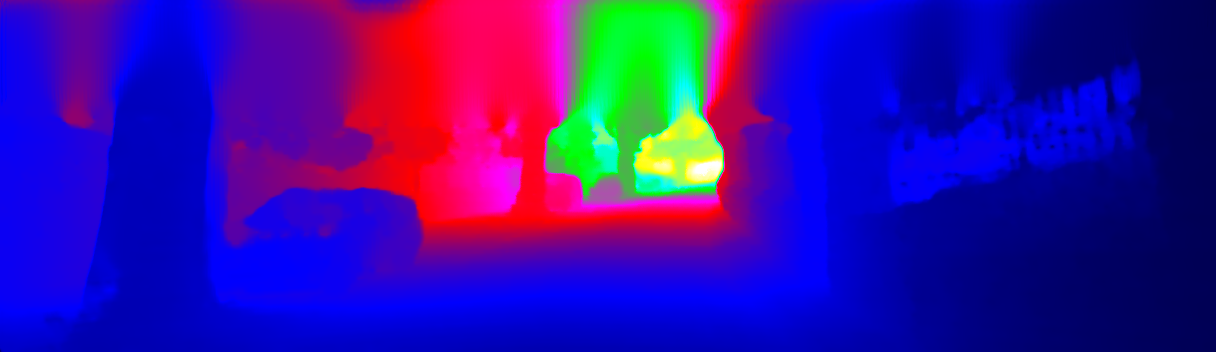

D1 Result

D1 Error


Test Image 16

iRMSE iMAE RMSE MAE
Error 1.49 0.77 672.24 210.60
This table as LaTeX

Input Image

D1 Result

D1 Error


Test Image 17

iRMSE iMAE RMSE MAE
Error 1.70 0.80 797.13 224.00
This table as LaTeX

Input Image

D1 Result

D1 Error


Test Image 18

iRMSE iMAE RMSE MAE
Error 2.12 1.00 694.39 291.96
This table as LaTeX

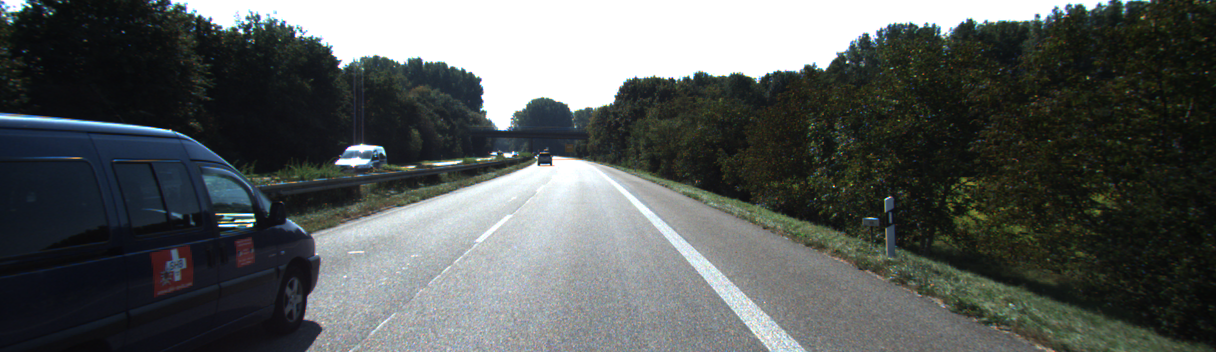

Input Image

D1 Result

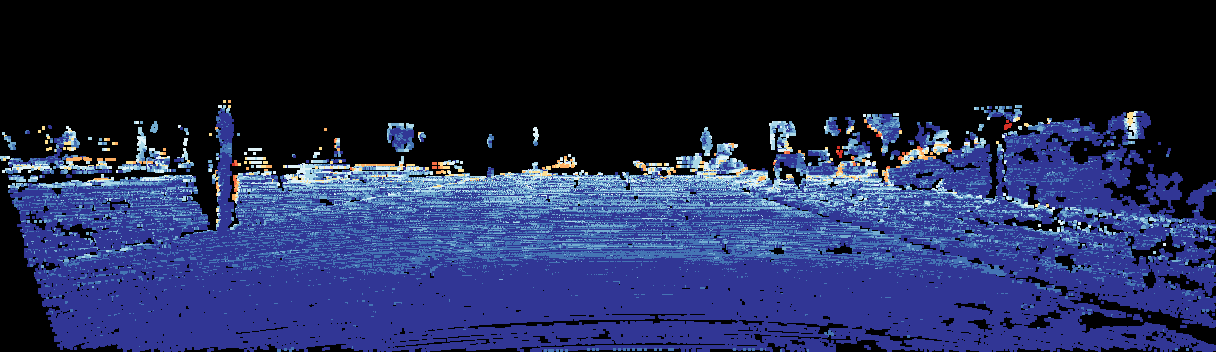

D1 Error


Test Image 19

iRMSE iMAE RMSE MAE
Error 1.37 0.91 877.65 261.87
This table as LaTeX

Input Image

D1 Result

D1 Error
