Method

Alternating Minimization + TGV [ATGV]


Submitted on 16 Jan. 2013 17:32 by
Rene Ranftl (Intel Labs)

Running time:6 min
Environment:>8 cores @ 3.0 Ghz (Matlab + C/C++)

Method Description:
Alternating Minimization + Image-Driven TGV and
Census-based data term.
Parameters:
\lamda = 6
\alpha = 16
\theta = 0.5
inner_iterations = 2000
outer_iterations = 10
Latex Bibtex:
@inproceedings{Ranftl2013,
author = {Rene Ranftl and Thomas Pock and Horst Bischof},
title = {{Minimizing TGV-based Variational Models with Non-Convex Data terms}},
booktitle = {ICSSVM},
year = {2013},
note = {to appear}
}

Detailed Results

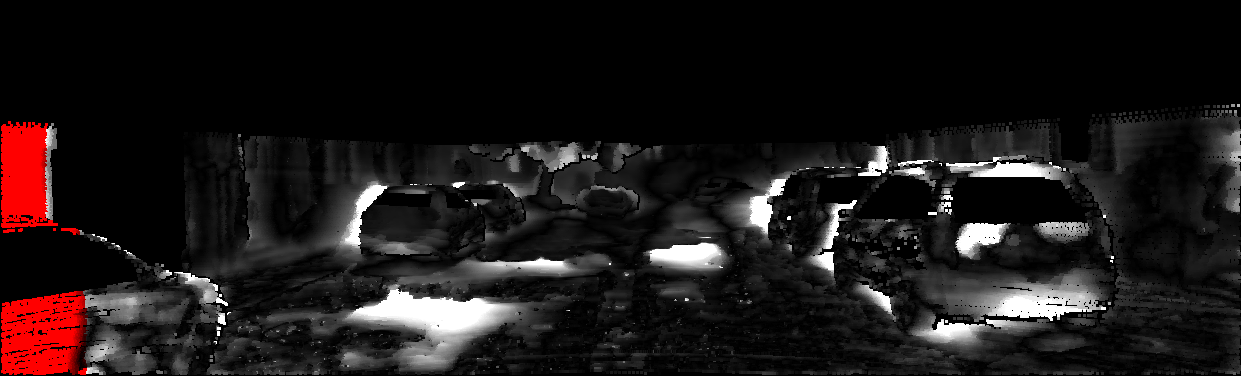

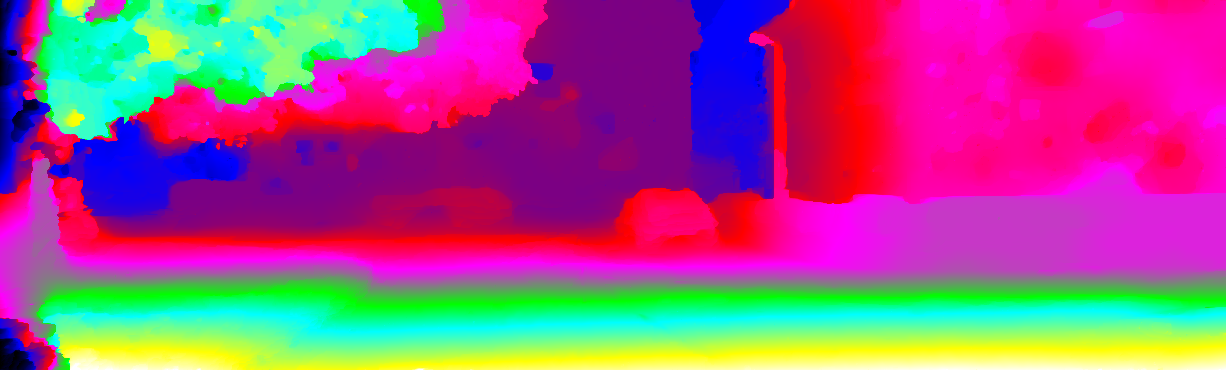

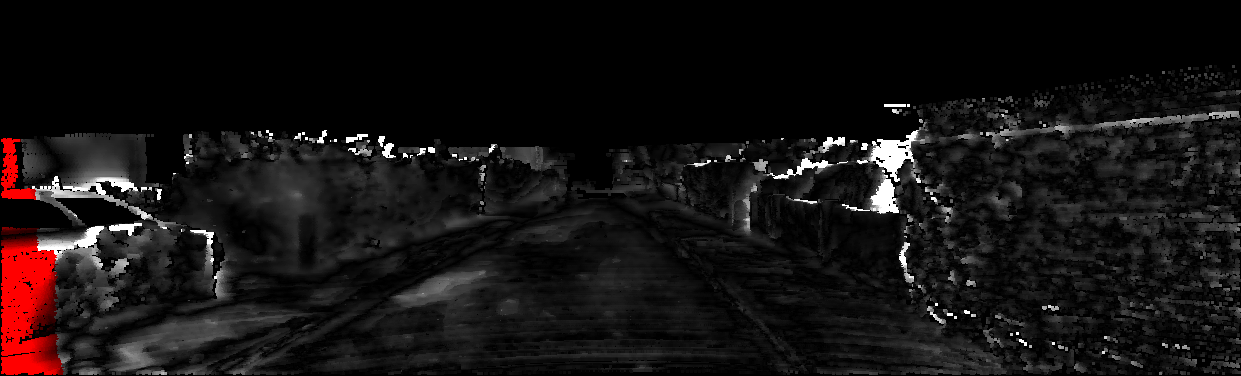

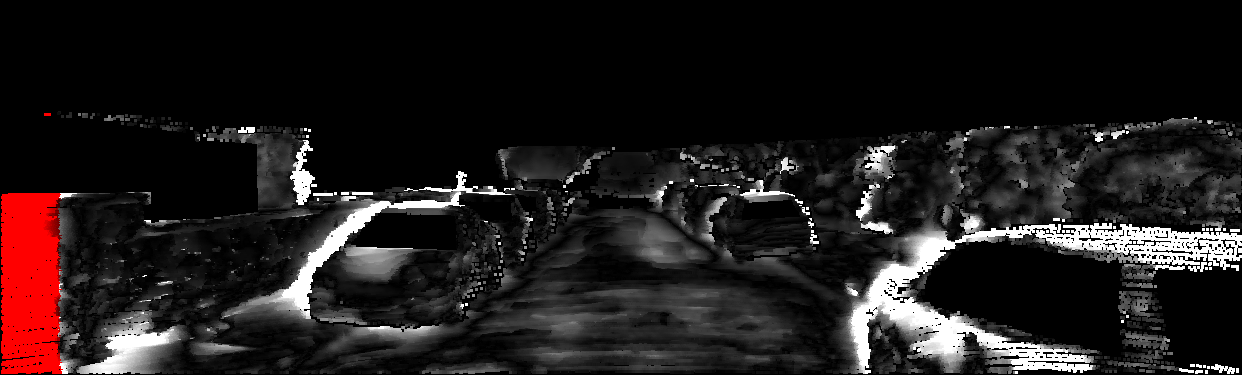

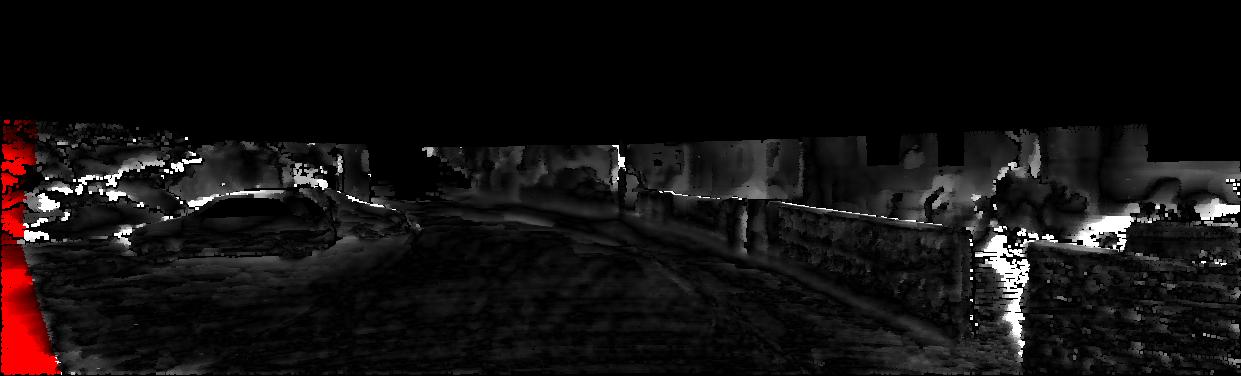

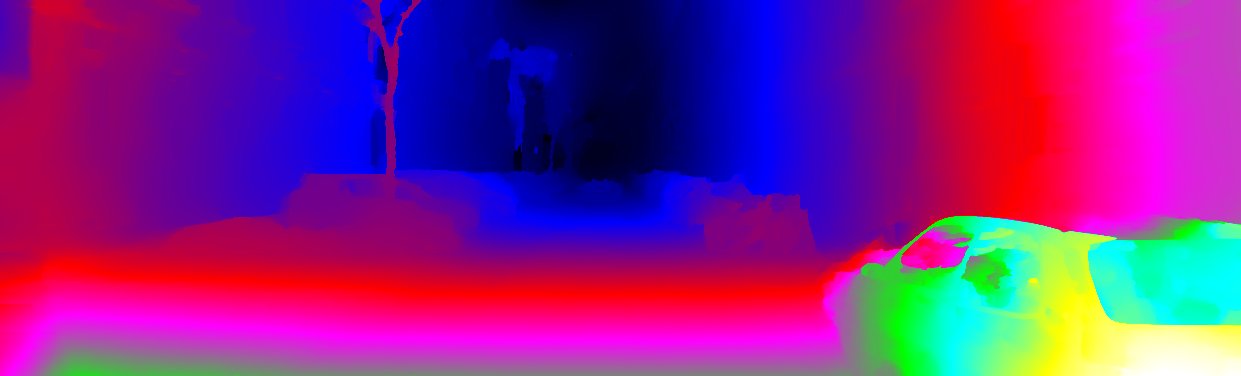

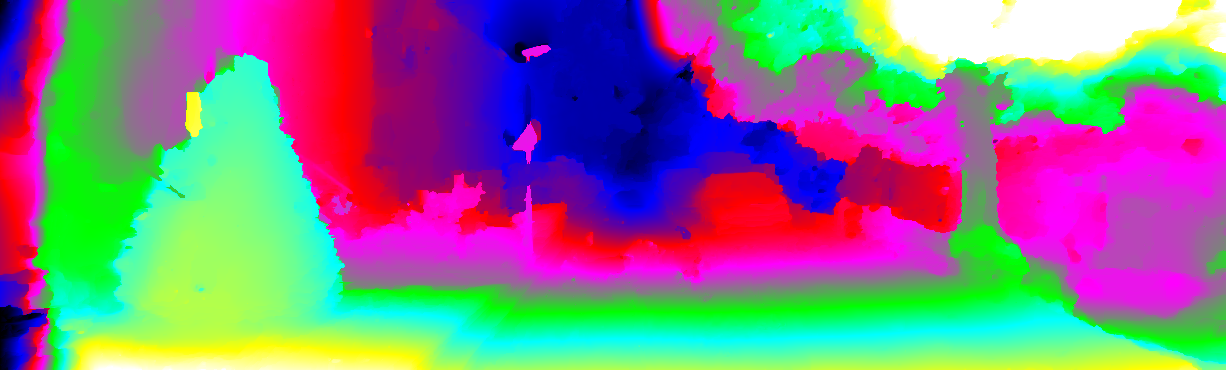

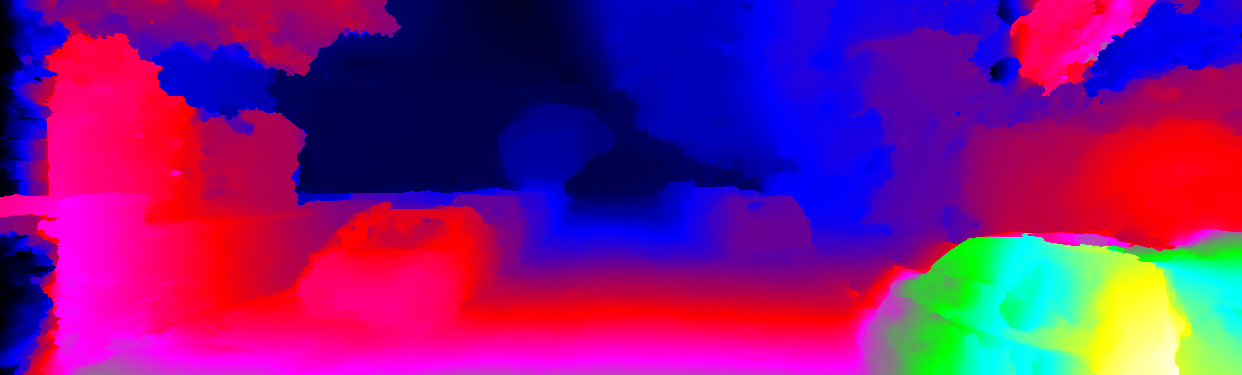

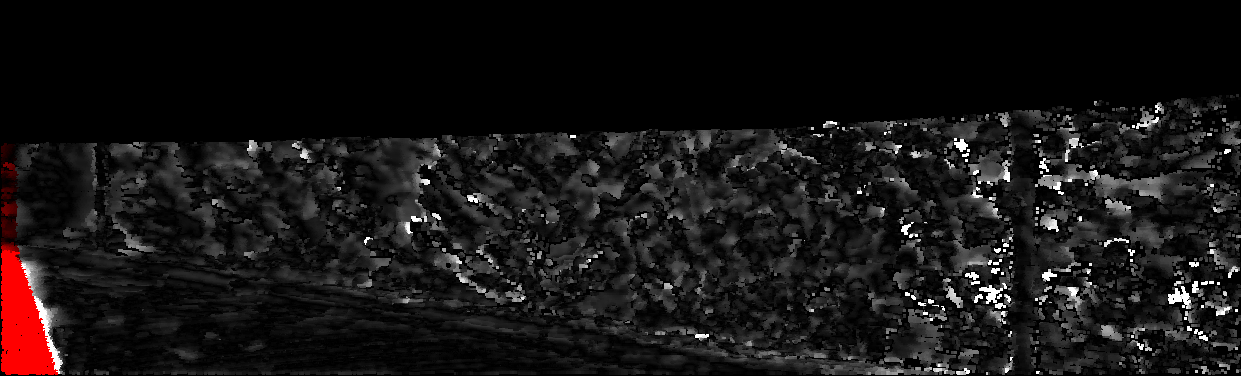

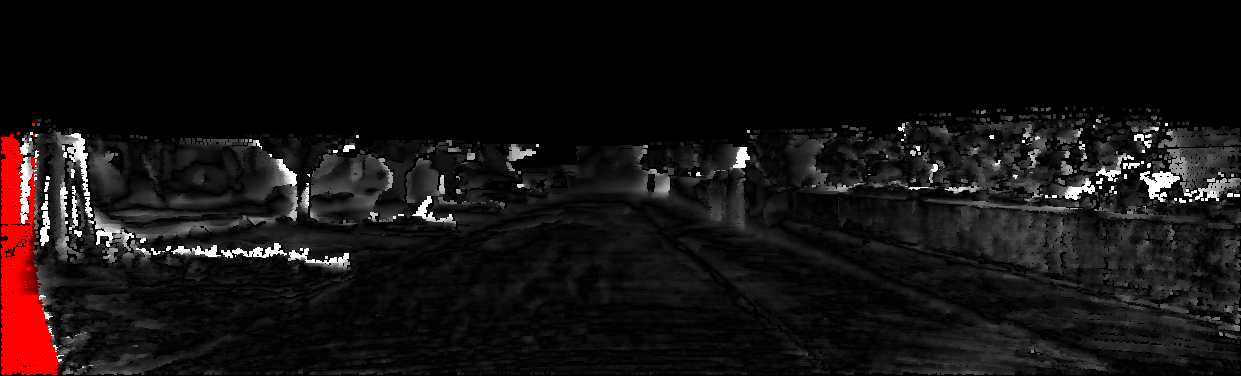

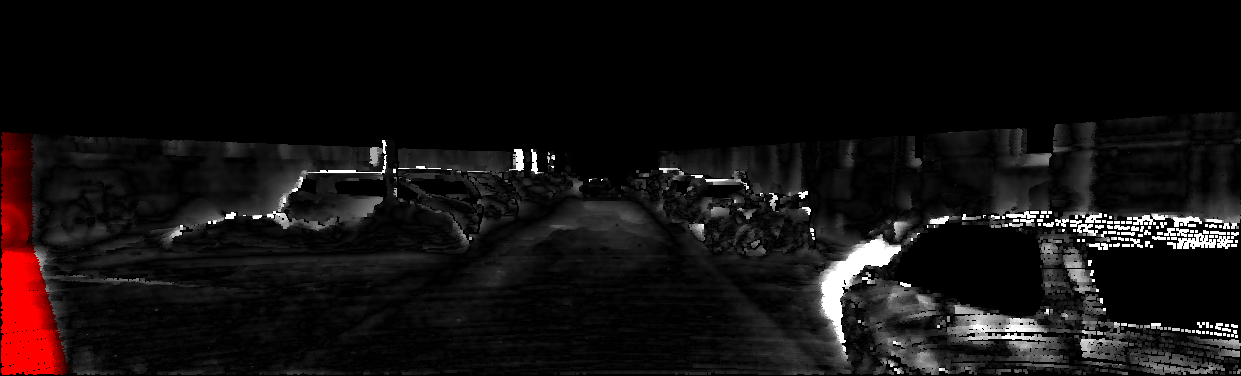

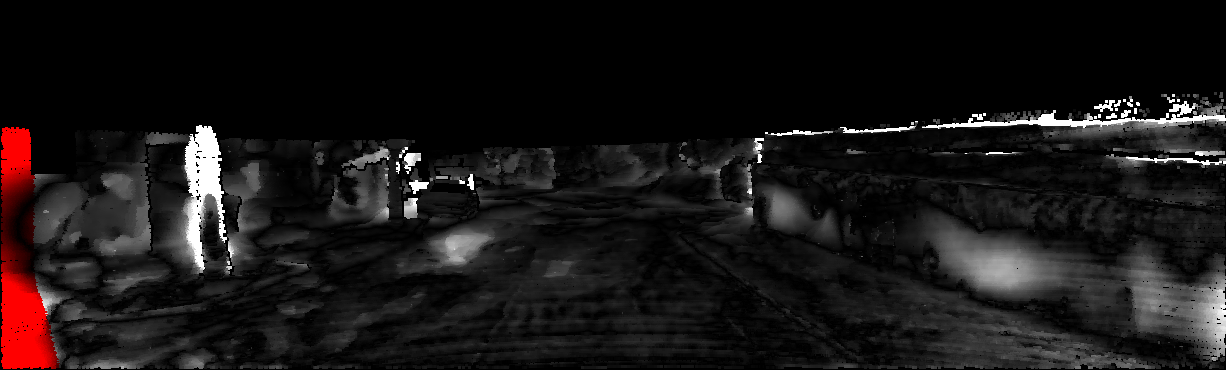

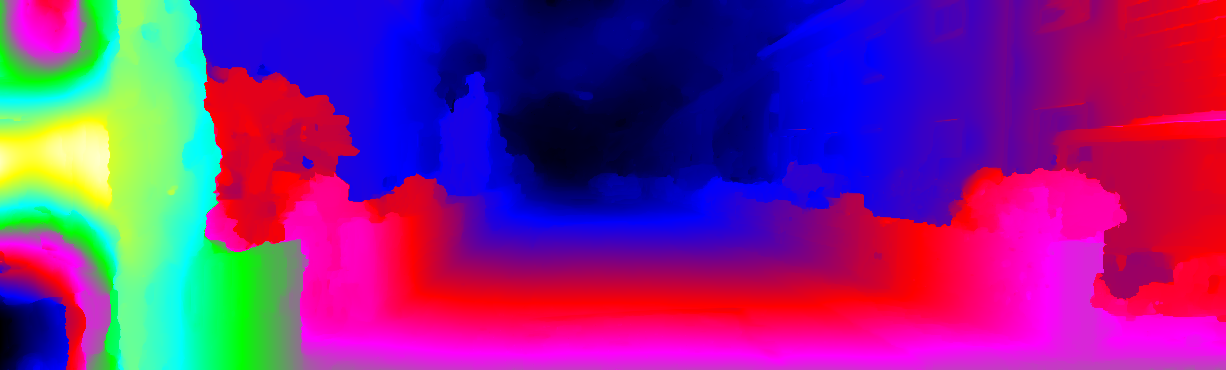

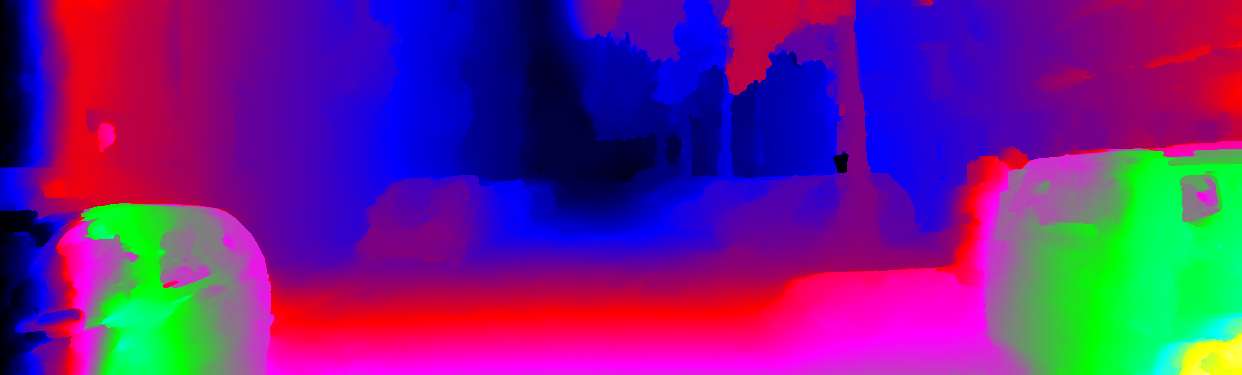

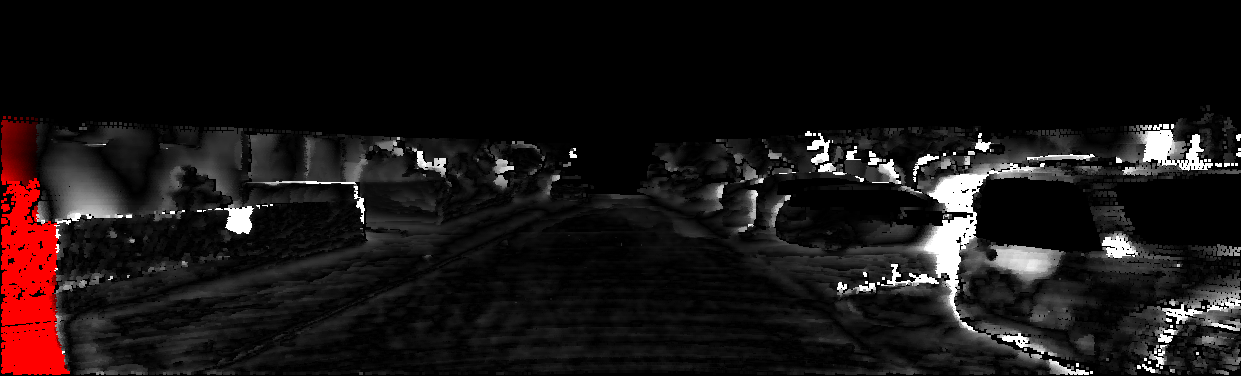

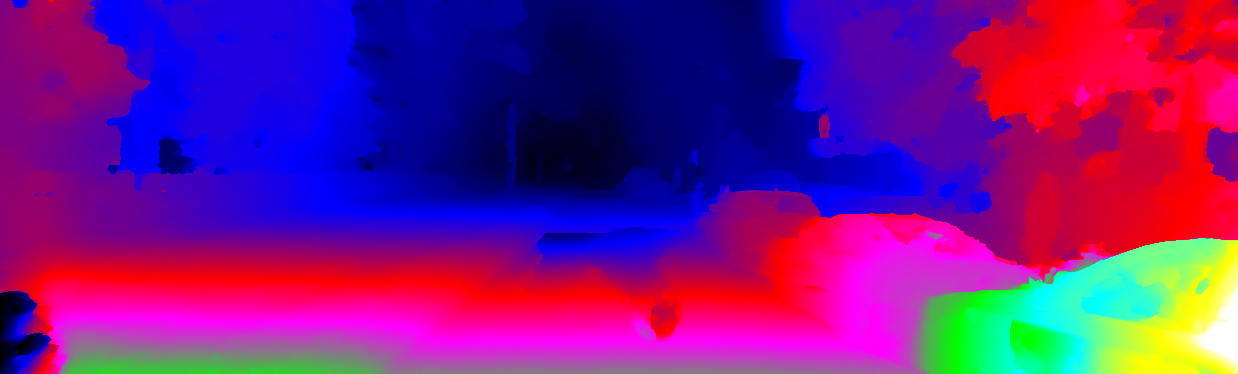

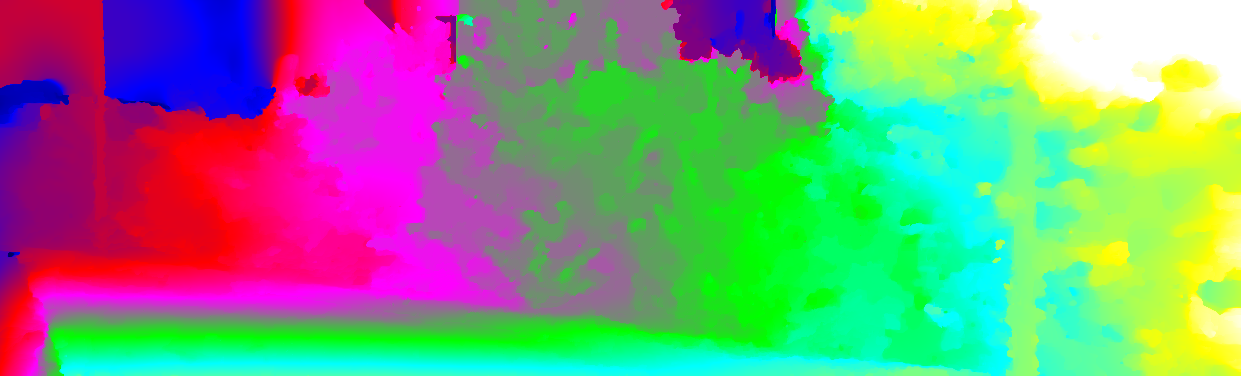

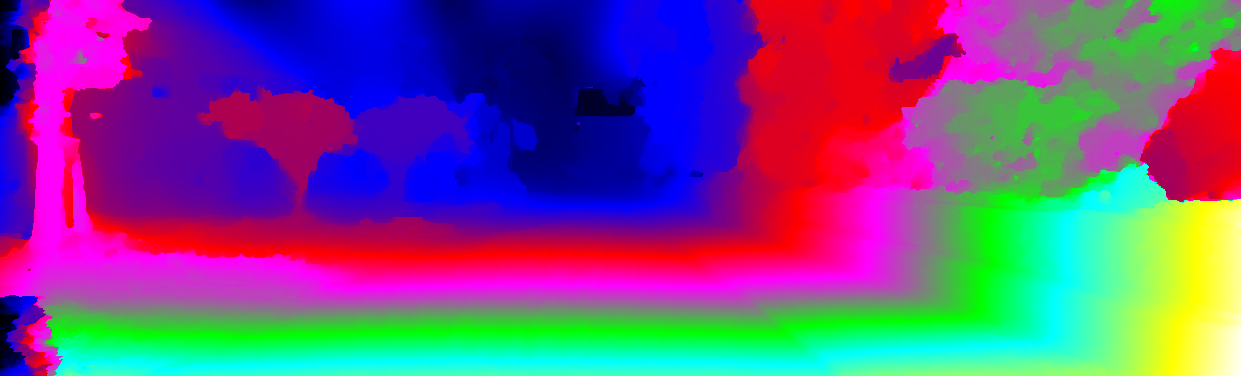

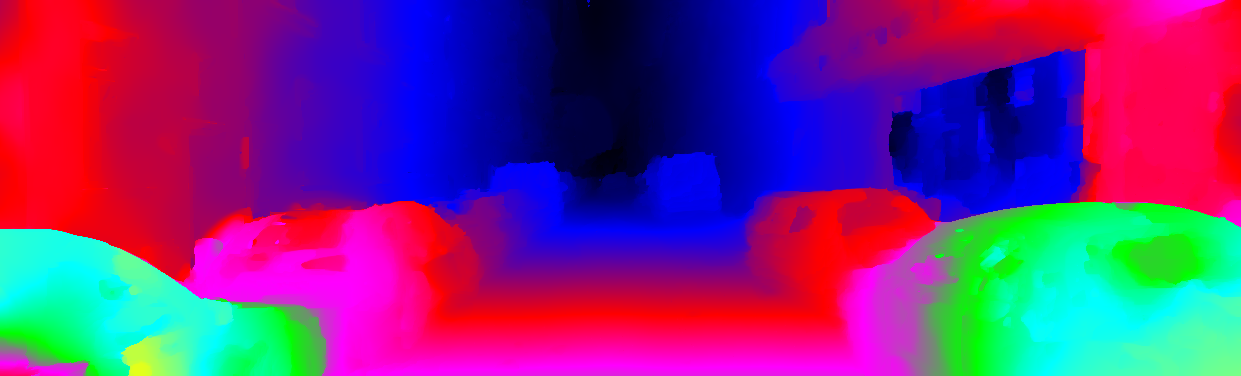

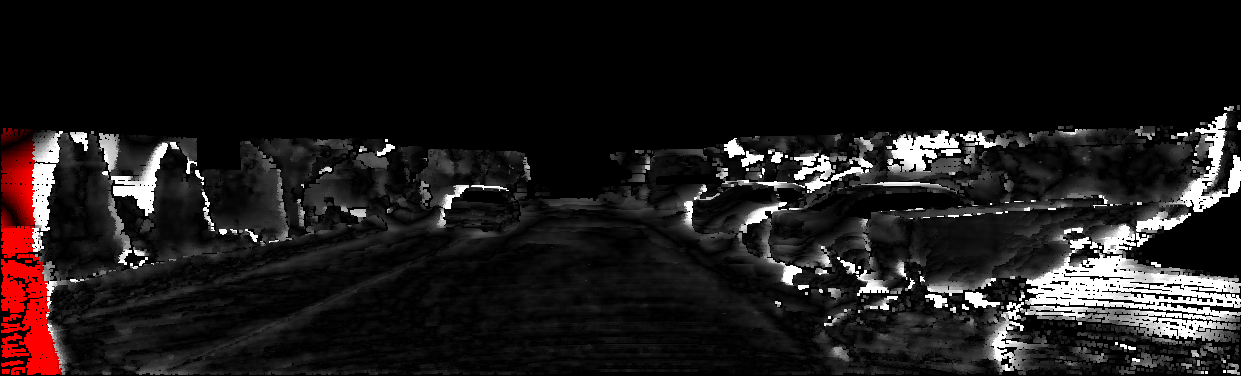

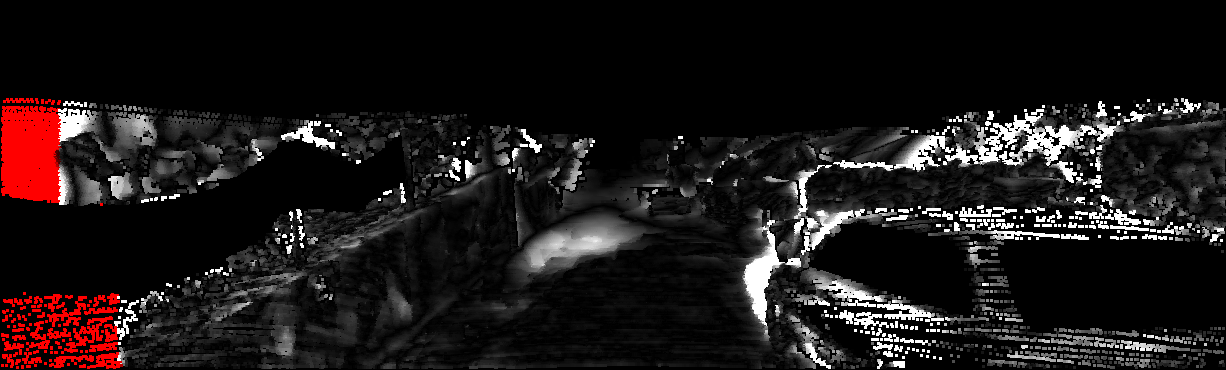

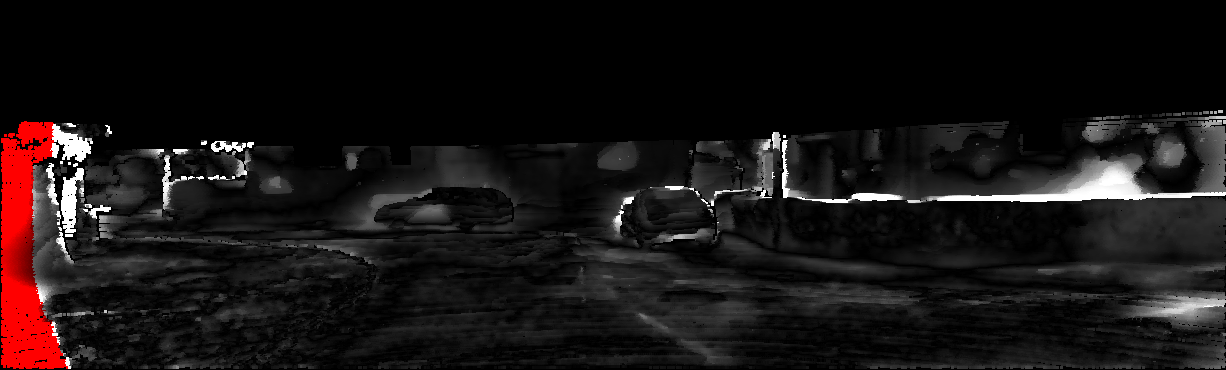

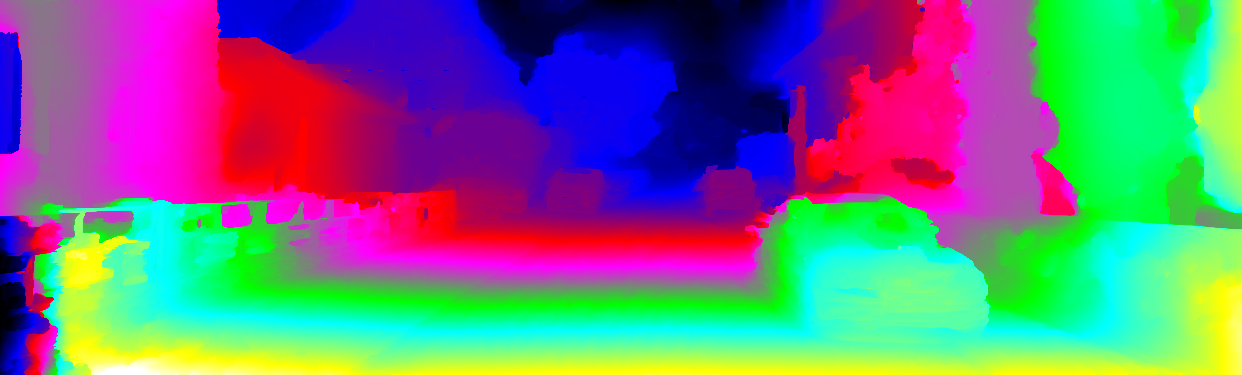

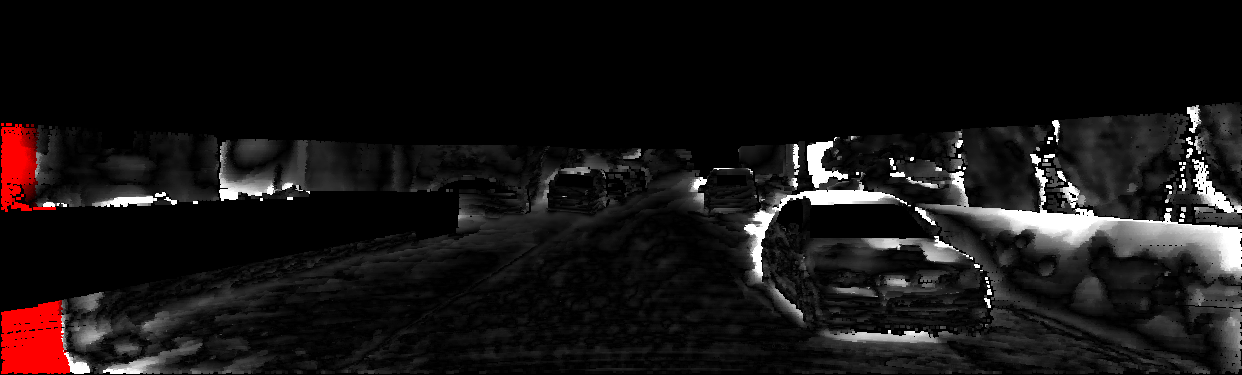

This page provides detailed results for the method(s) selected. For each of the first 20 test images, the number of erroneous pixels at all thresholds is depicted in the table. Underneath, the left input image, the disparity / end-point error map and the estimated (and interpolated) disparity / optical flow map are shown. The error map scales linearly between 0 (black) and >=5 (white) pixels error. Red denotes all occluded pixels, falling outside the image boundaries. The false color map is scaled to the largest ground truth disparity / flow value.

Test Set Average

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 7.08 % 9.05 % 1.0 px 1.6 px
3 pixels 5.02 % 6.88 % 1.0 px 1.6 px
4 pixels 3.99 % 5.76 % 1.0 px 1.6 px
5 pixels 3.33 % 5.01 % 1.0 px 1.6 px
This table as LaTeX

Reflective Regions

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 30.48 % 34.18 % 3.3 px 5.3 px
3 pixels 22.85 % 26.81 % 3.3 px 5.3 px
4 pixels 18.43 % 22.49 % 3.3 px 5.3 px
5 pixels 15.44 % 19.53 % 3.3 px 5.3 px
This table as LaTeX

Test Image 0

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 5.64 % 7.97 % 0.8 px 1.7 px
3 pixels 3.95 % 6.13 % 0.8 px 1.7 px
4 pixels 2.89 % 5.04 % 0.8 px 1.7 px
5 pixels 2.34 % 4.46 % 0.8 px 1.7 px
This table as LaTeX





Test Image 1

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 8.35 % 12.03 % 0.9 px 2.1 px
3 pixels 5.61 % 9.38 % 0.9 px 2.1 px
4 pixels 3.89 % 7.71 % 0.9 px 2.1 px
5 pixels 2.68 % 6.51 % 0.9 px 2.1 px
This table as LaTeX





Test Image 2

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 7.34 % 8.98 % 0.8 px 1.3 px
3 pixels 5.09 % 6.72 % 0.8 px 1.3 px
4 pixels 3.45 % 5.00 % 0.8 px 1.3 px
5 pixels 2.48 % 3.95 % 0.8 px 1.3 px
This table as LaTeX





Test Image 3

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 10.98 % 13.35 % 0.9 px 1.5 px
3 pixels 7.20 % 9.62 % 0.9 px 1.5 px
4 pixels 5.04 % 7.44 % 0.9 px 1.5 px
5 pixels 3.66 % 5.98 % 0.9 px 1.5 px
This table as LaTeX





Test Image 4

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 3.48 % 5.71 % 0.6 px 1.1 px
3 pixels 2.29 % 4.40 % 0.6 px 1.1 px
4 pixels 1.76 % 3.69 % 0.6 px 1.1 px
5 pixels 1.15 % 2.89 % 0.6 px 1.1 px
This table as LaTeX





Test Image 5

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 2.50 % 4.12 % 0.5 px 0.6 px
3 pixels 1.56 % 2.87 % 0.5 px 0.6 px
4 pixels 1.17 % 2.22 % 0.5 px 0.6 px
5 pixels 0.99 % 1.81 % 0.5 px 0.6 px
This table as LaTeX





Test Image 6

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 10.67 % 13.19 % 1.1 px 2.1 px
3 pixels 7.04 % 9.66 % 1.1 px 2.1 px
4 pixels 4.85 % 7.51 % 1.1 px 2.1 px
5 pixels 3.97 % 6.65 % 1.1 px 2.1 px
This table as LaTeX





Test Image 7

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 11.07 % 13.28 % 1.5 px 2.9 px
3 pixels 7.66 % 9.96 % 1.5 px 2.9 px
4 pixels 6.13 % 8.46 % 1.5 px 2.9 px
5 pixels 5.38 % 7.73 % 1.5 px 2.9 px
This table as LaTeX





Test Image 8

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 2.52 % 4.49 % 0.5 px 1.0 px
3 pixels 1.59 % 3.48 % 0.5 px 1.0 px
4 pixels 1.15 % 2.97 % 0.5 px 1.0 px
5 pixels 0.94 % 2.69 % 0.5 px 1.0 px
This table as LaTeX





Test Image 9

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 13.21 % 15.07 % 1.3 px 1.5 px
3 pixels 8.68 % 10.22 % 1.3 px 1.5 px
4 pixels 6.41 % 7.77 % 1.3 px 1.5 px
5 pixels 4.70 % 5.92 % 1.3 px 1.5 px
This table as LaTeX





Test Image 10

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 2.63 % 4.18 % 0.6 px 0.7 px
3 pixels 1.66 % 3.05 % 0.6 px 0.7 px
4 pixels 1.22 % 2.47 % 0.6 px 0.7 px
5 pixels 0.98 % 2.02 % 0.6 px 0.7 px
This table as LaTeX





Test Image 11

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 11.23 % 14.46 % 1.6 px 2.9 px
3 pixels 7.77 % 11.03 % 1.6 px 2.9 px
4 pixels 6.24 % 9.47 % 1.6 px 2.9 px
5 pixels 4.94 % 8.15 % 1.6 px 2.9 px
This table as LaTeX





Test Image 12

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 5.72 % 7.98 % 1.0 px 1.9 px
3 pixels 3.89 % 6.14 % 1.0 px 1.9 px
4 pixels 3.22 % 5.41 % 1.0 px 1.9 px
5 pixels 2.90 % 5.05 % 1.0 px 1.9 px
This table as LaTeX





Test Image 13

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 8.76 % 10.06 % 1.0 px 1.2 px
3 pixels 5.46 % 6.78 % 1.0 px 1.2 px
4 pixels 4.05 % 5.36 % 1.0 px 1.2 px
5 pixels 3.51 % 4.81 % 1.0 px 1.2 px
This table as LaTeX





Test Image 14

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 4.91 % 6.32 % 0.7 px 0.8 px
3 pixels 2.45 % 3.72 % 0.7 px 0.8 px
4 pixels 1.69 % 2.81 % 0.7 px 0.8 px
5 pixels 1.47 % 2.41 % 0.7 px 0.8 px
This table as LaTeX





Test Image 15

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 11.83 % 13.51 % 1.2 px 1.7 px
3 pixels 8.97 % 10.49 % 1.2 px 1.7 px
4 pixels 7.18 % 8.66 % 1.2 px 1.7 px
5 pixels 5.63 % 7.03 % 1.2 px 1.7 px
This table as LaTeX





Test Image 16

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 3.15 % 4.53 % 0.6 px 0.8 px
3 pixels 1.30 % 2.67 % 0.6 px 0.8 px
4 pixels 0.80 % 2.17 % 0.6 px 0.8 px
5 pixels 0.51 % 1.89 % 0.6 px 0.8 px
This table as LaTeX





Test Image 17

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 7.35 % 8.81 % 0.9 px 1.3 px
3 pixels 5.86 % 7.16 % 0.9 px 1.3 px
4 pixels 4.82 % 5.95 % 0.9 px 1.3 px
5 pixels 3.78 % 4.78 % 0.9 px 1.3 px
This table as LaTeX





Test Image 18

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 5.15 % 6.11 % 0.7 px 0.9 px
3 pixels 3.96 % 4.75 % 0.7 px 0.9 px
4 pixels 3.17 % 3.87 % 0.7 px 0.9 px
5 pixels 2.51 % 3.19 % 0.7 px 0.9 px
This table as LaTeX





Test Image 19

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 3.79 % 5.87 % 0.7 px 0.8 px
3 pixels 2.43 % 4.09 % 0.7 px 0.8 px
4 pixels 1.79 % 3.18 % 0.7 px 0.8 px
5 pixels 1.52 % 2.68 % 0.7 px 0.8 px
This table as LaTeX
