Method

Computing the Stereo Matching Cost with a Convolutional Neural Network [MC-CNN]


Submitted on 31 Aug. 2014 22:25 by
Jure Zbontar (NYU)

Running time:100 s
Environment:Nvidia GTX Titan (CUDA, Lua/Torch7)

Method Description:
We train a convolutional neural network to predict
how well two image patches match and use it to
compute the stereo matching cost. The cost is
refined by cross-based cost aggregation and
semiglobal matching, followed by a left-right
consistency check to eliminate errors in the
occluded regions.
Parameters:
See paper.
Latex Bibtex:
@inproceedings{Zbontar2015CVPR,
title={Computing the Stereo Matching Cost with a
Convolutional Neural Network},
author={Zbontar, Jure and LeCun, Yann},
booktitle = {Conference on Computer Vision and
Pattern Recognition (CVPR)},
year={2015}
}

Detailed Results

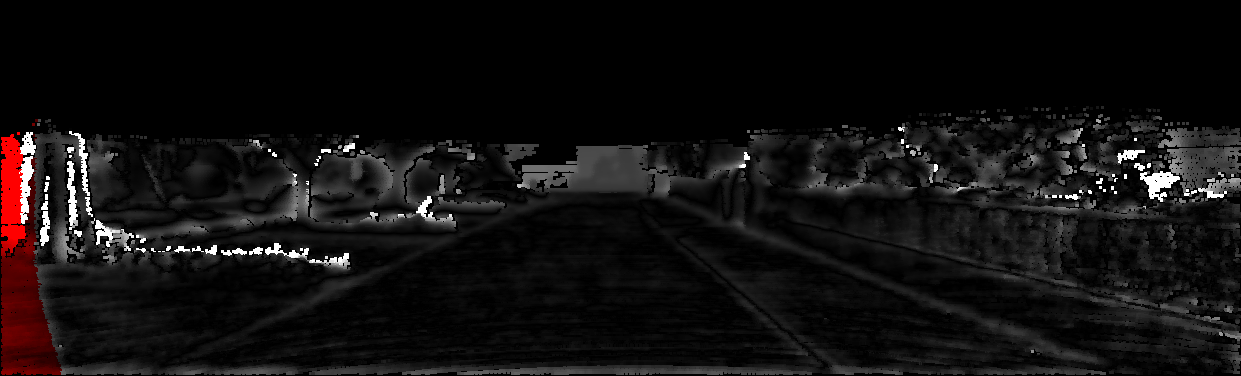

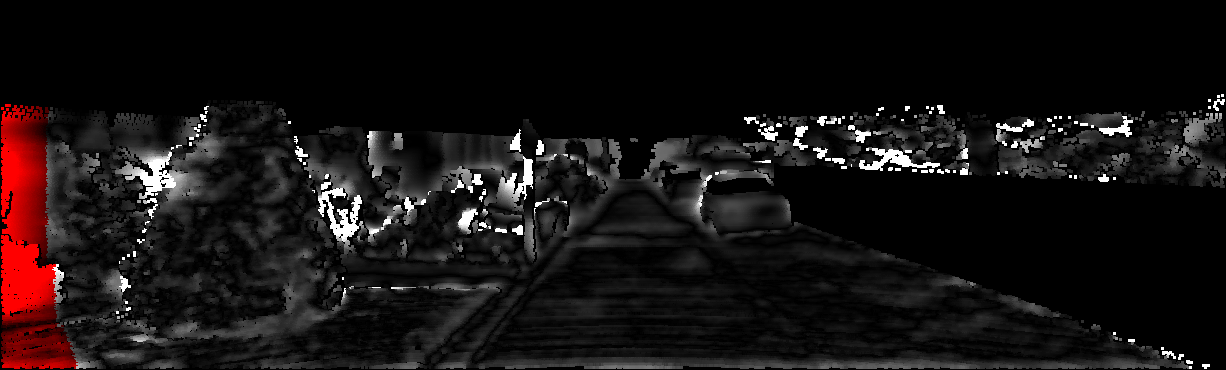

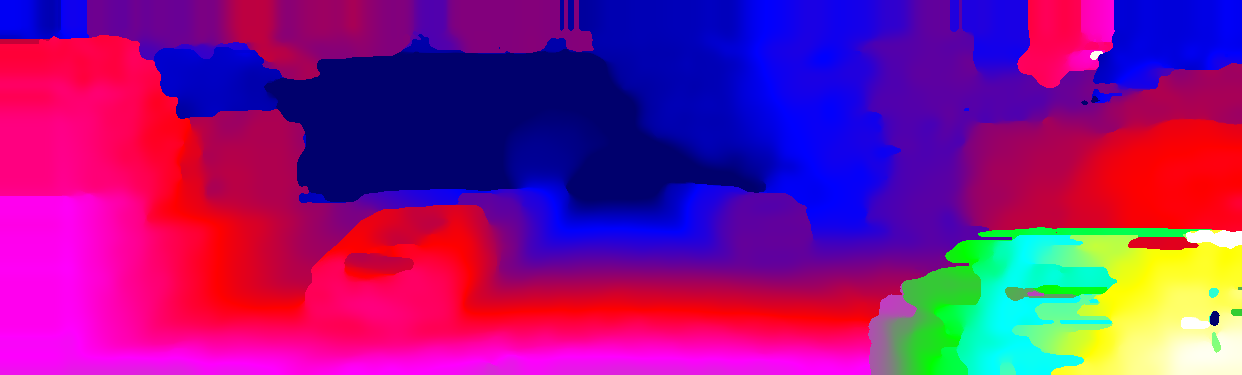

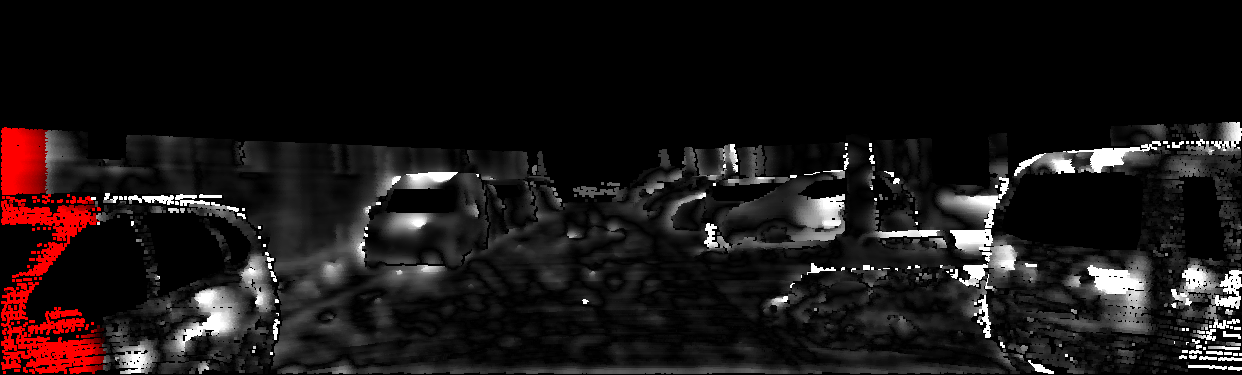

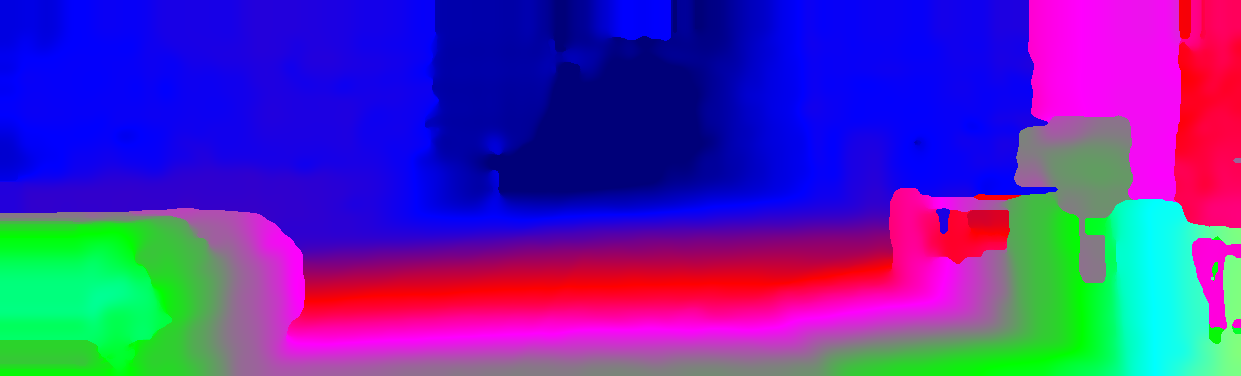

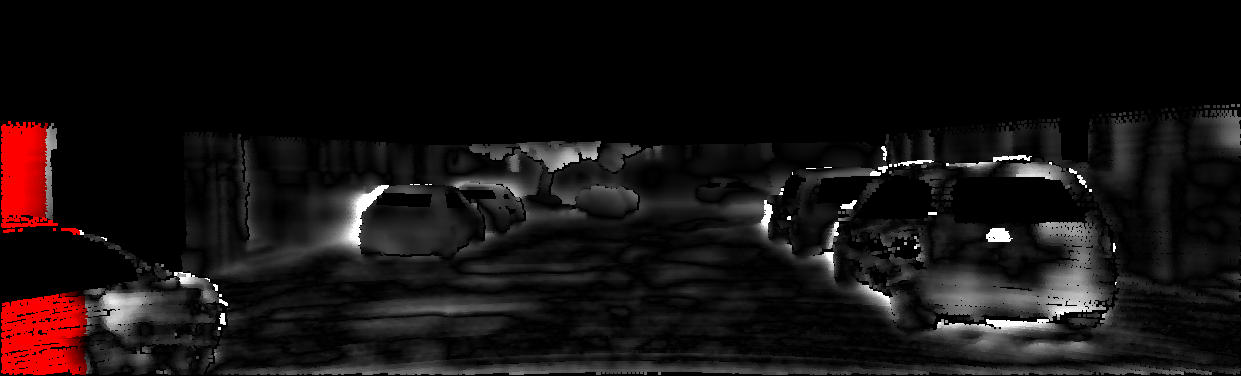

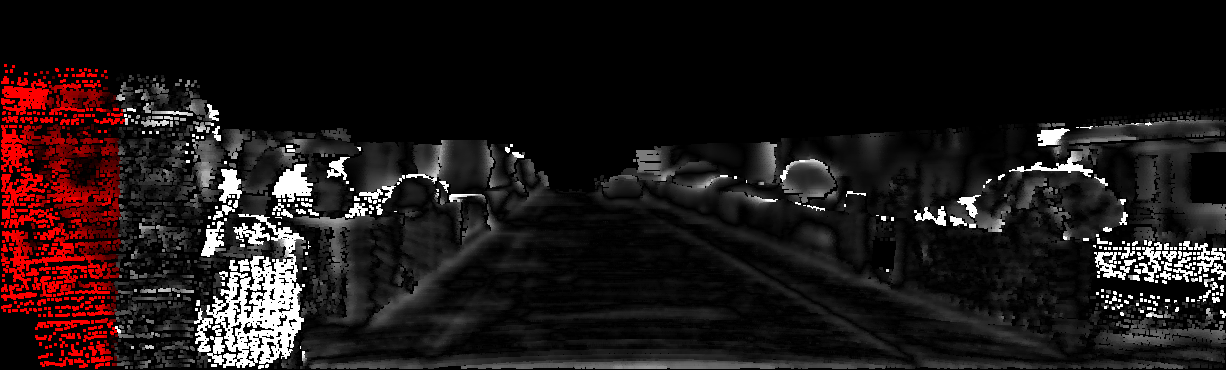

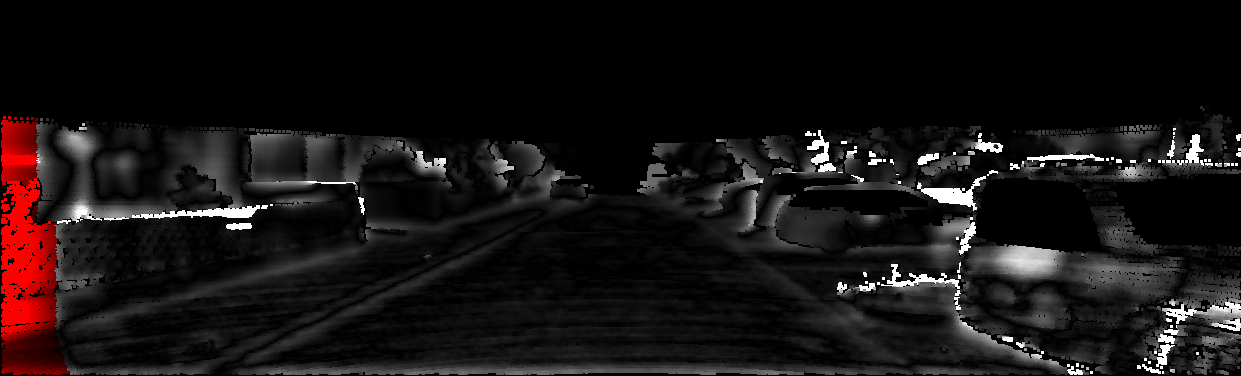

This page provides detailed results for the method(s) selected. For each of the first 20 test images, the number of erroneous pixels at all thresholds is depicted in the table. Underneath, the left input image, the disparity / end-point error map and the estimated (and interpolated) disparity / optical flow map are shown. The error map scales linearly between 0 (black) and >=5 (white) pixels error. Red denotes all occluded pixels, falling outside the image boundaries. The false color map is scaled to the largest ground truth disparity / flow value.

Test Set Average

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 4.34 % 5.90 % 0.8 px 1.0 px
3 pixels 2.61 % 3.84 % 0.8 px 1.0 px
4 pixels 2.04 % 3.01 % 0.8 px 1.0 px
5 pixels 1.75 % 2.52 % 0.8 px 1.0 px
This table as LaTeX

Reflective Regions

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 25.71 % 29.23 % 3.5 px 4.3 px
3 pixels 18.45 % 21.96 % 3.5 px 4.3 px
4 pixels 14.93 % 18.22 % 3.5 px 4.3 px
5 pixels 12.81 % 15.85 % 3.5 px 4.3 px
This table as LaTeX

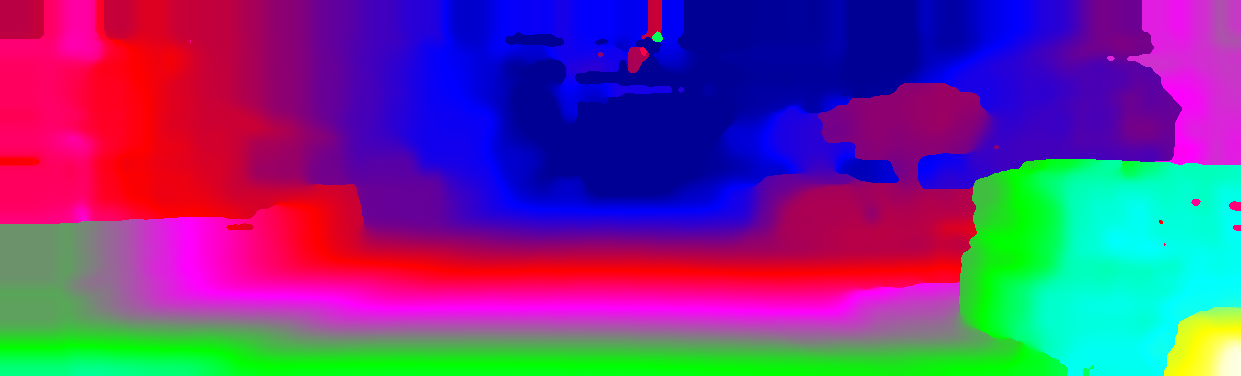

Test Image 0

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 4.22 % 6.42 % 0.7 px 0.8 px
3 pixels 2.39 % 4.11 % 0.7 px 0.8 px
4 pixels 1.75 % 2.98 % 0.7 px 0.8 px
5 pixels 1.47 % 2.39 % 0.7 px 0.8 px
This table as LaTeX





Test Image 1

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 3.97 % 7.15 % 0.7 px 0.9 px
3 pixels 2.25 % 4.52 % 0.7 px 0.9 px
4 pixels 1.81 % 3.37 % 0.7 px 0.9 px
5 pixels 1.63 % 2.62 % 0.7 px 0.9 px
This table as LaTeX

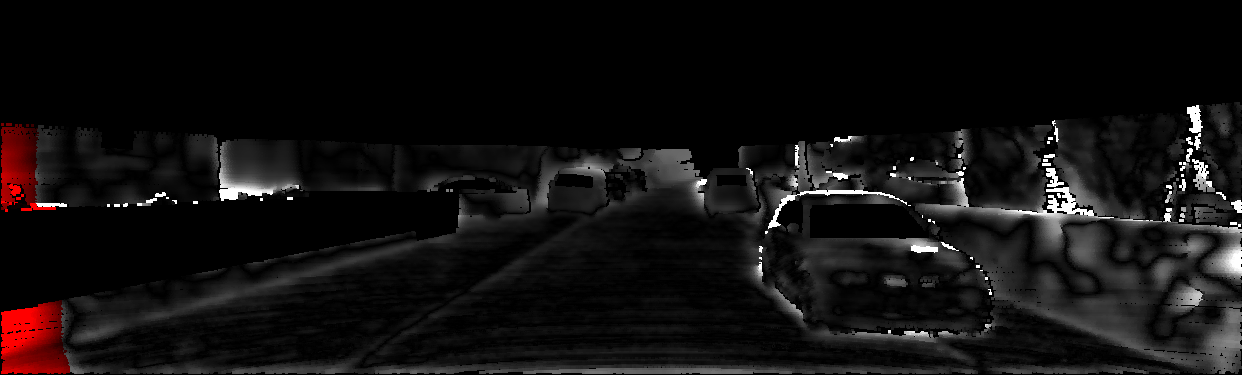

Test Image 2

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 3.26 % 4.58 % 0.6 px 0.6 px
3 pixels 1.42 % 2.18 % 0.6 px 0.6 px
4 pixels 0.98 % 1.40 % 0.6 px 0.6 px
5 pixels 0.79 % 1.08 % 0.6 px 0.6 px
This table as LaTeX





Test Image 3

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 4.40 % 6.97 % 0.6 px 0.8 px
3 pixels 1.83 % 4.36 % 0.6 px 0.8 px
4 pixels 0.88 % 3.11 % 0.6 px 0.8 px
5 pixels 0.57 % 2.31 % 0.6 px 0.8 px
This table as LaTeX

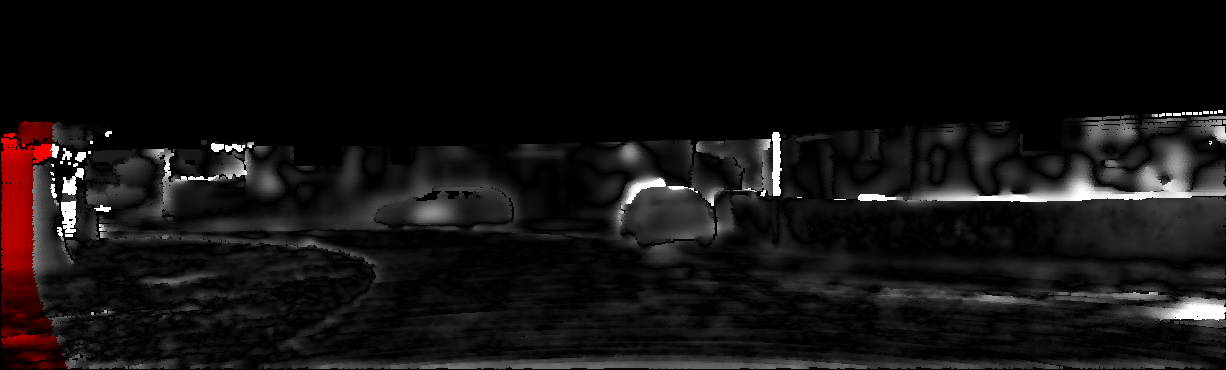

Test Image 4

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 3.53 % 4.83 % 0.6 px 0.6 px
3 pixels 1.79 % 2.72 % 0.6 px 0.6 px
4 pixels 1.27 % 1.36 % 0.6 px 0.6 px
5 pixels 0.78 % 0.84 % 0.6 px 0.6 px
This table as LaTeX





Test Image 5

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 1.42 % 1.89 % 0.4 px 0.5 px
3 pixels 0.76 % 0.90 % 0.4 px 0.5 px
4 pixels 0.59 % 0.67 % 0.4 px 0.5 px
5 pixels 0.53 % 0.55 % 0.4 px 0.5 px
This table as LaTeX

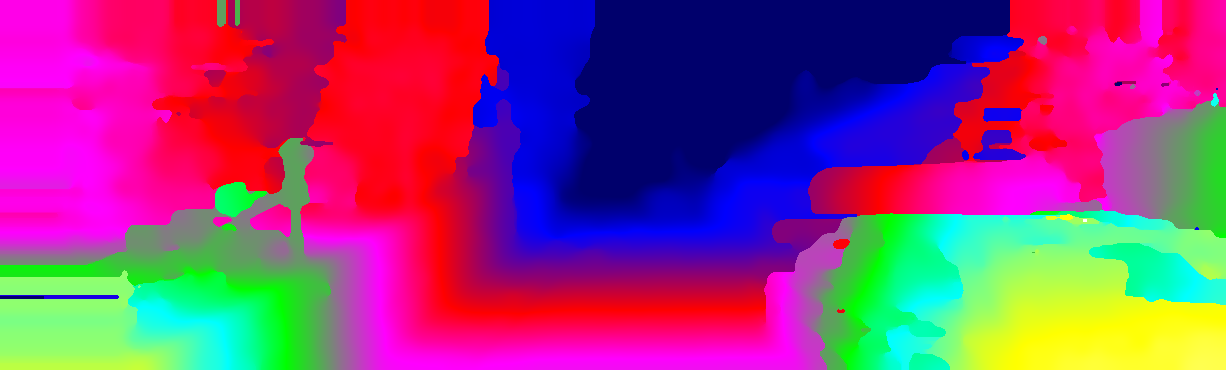

Test Image 6

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 5.41 % 7.49 % 0.9 px 1.0 px
3 pixels 3.04 % 4.72 % 0.9 px 1.0 px
4 pixels 2.37 % 3.44 % 0.9 px 1.0 px
5 pixels 2.00 % 2.61 % 0.9 px 1.0 px
This table as LaTeX

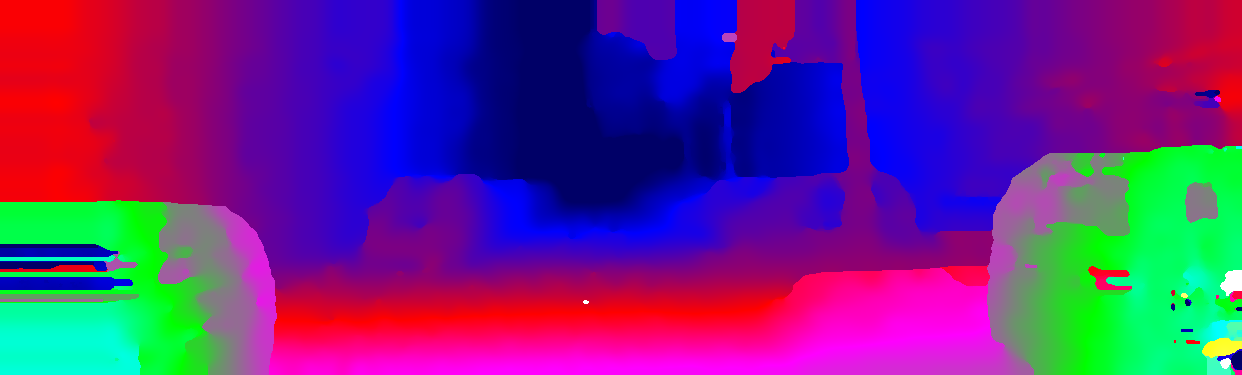

Test Image 7

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 8.02 % 10.28 % 1.2 px 1.5 px
3 pixels 5.22 % 7.40 % 1.2 px 1.5 px
4 pixels 3.77 % 5.65 % 1.2 px 1.5 px
5 pixels 2.69 % 4.21 % 1.2 px 1.5 px
This table as LaTeX





Test Image 8

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 1.74 % 2.35 % 0.5 px 0.5 px
3 pixels 0.92 % 1.38 % 0.5 px 0.5 px
4 pixels 0.82 % 1.27 % 0.5 px 0.5 px
5 pixels 0.77 % 1.20 % 0.5 px 0.5 px
This table as LaTeX





Test Image 9

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 8.65 % 10.91 % 1.3 px 1.7 px
3 pixels 5.09 % 7.43 % 1.3 px 1.7 px
4 pixels 3.87 % 6.18 % 1.3 px 1.7 px
5 pixels 3.30 % 5.33 % 1.3 px 1.7 px
This table as LaTeX

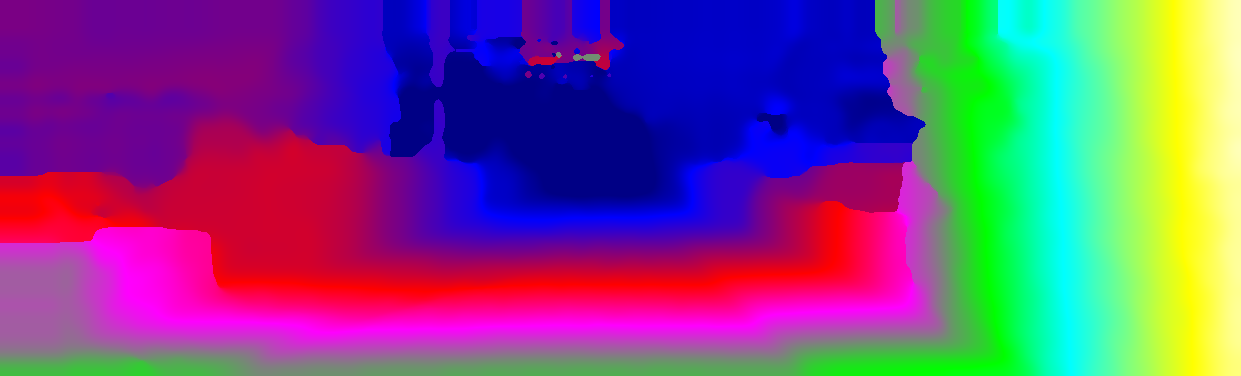

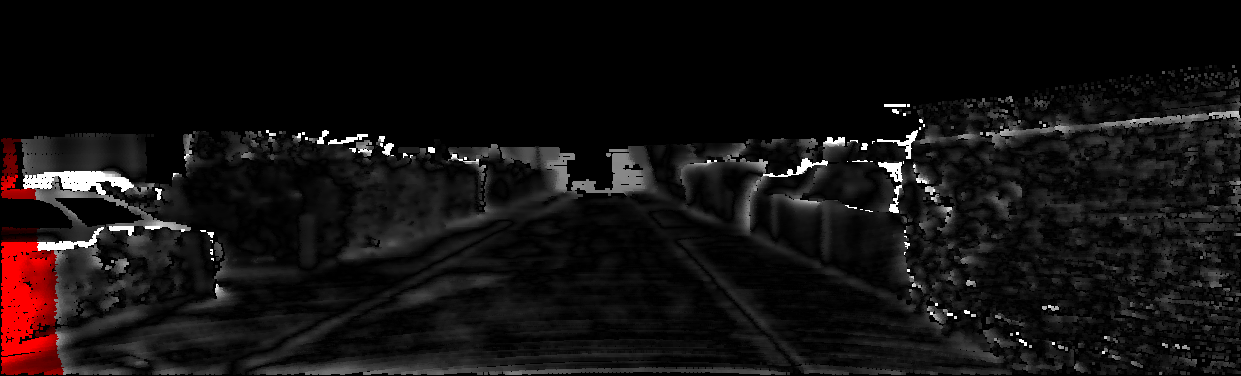

Test Image 10

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 2.42 % 3.93 % 0.5 px 0.6 px
3 pixels 1.19 % 2.40 % 0.5 px 0.6 px
4 pixels 0.97 % 1.83 % 0.5 px 0.6 px
5 pixels 0.91 % 1.55 % 0.5 px 0.6 px
This table as LaTeX





Test Image 11

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 6.83 % 10.21 % 1.1 px 1.3 px
3 pixels 4.14 % 7.19 % 1.1 px 1.3 px
4 pixels 3.39 % 5.89 % 1.1 px 1.3 px
5 pixels 2.88 % 4.82 % 1.1 px 1.3 px
This table as LaTeX





Test Image 12

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 5.05 % 7.12 % 1.3 px 1.4 px
3 pixels 3.69 % 5.36 % 1.3 px 1.4 px
4 pixels 3.40 % 4.74 % 1.3 px 1.4 px
5 pixels 3.29 % 4.39 % 1.3 px 1.4 px
This table as LaTeX

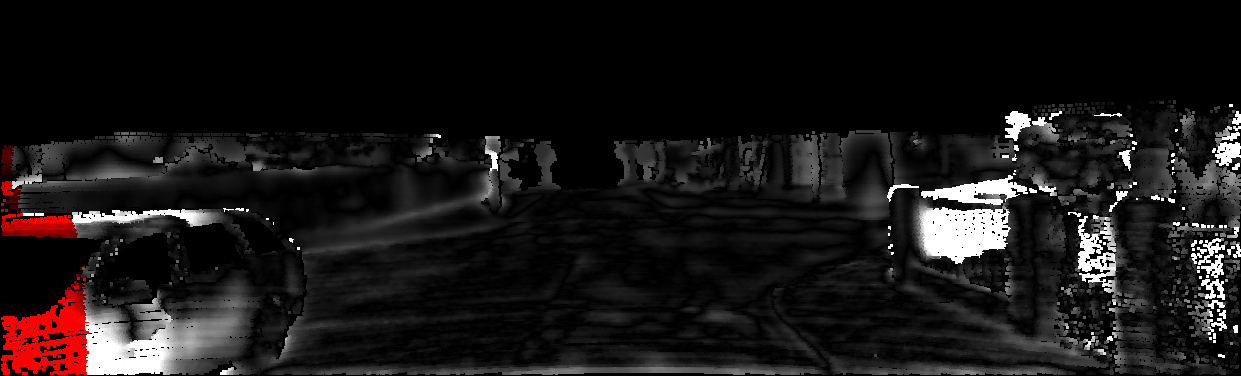

Test Image 13

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 5.84 % 7.14 % 1.0 px 1.2 px
3 pixels 4.06 % 5.25 % 1.0 px 1.2 px
4 pixels 3.43 % 4.42 % 1.0 px 1.2 px
5 pixels 2.96 % 3.87 % 1.0 px 1.2 px
This table as LaTeX

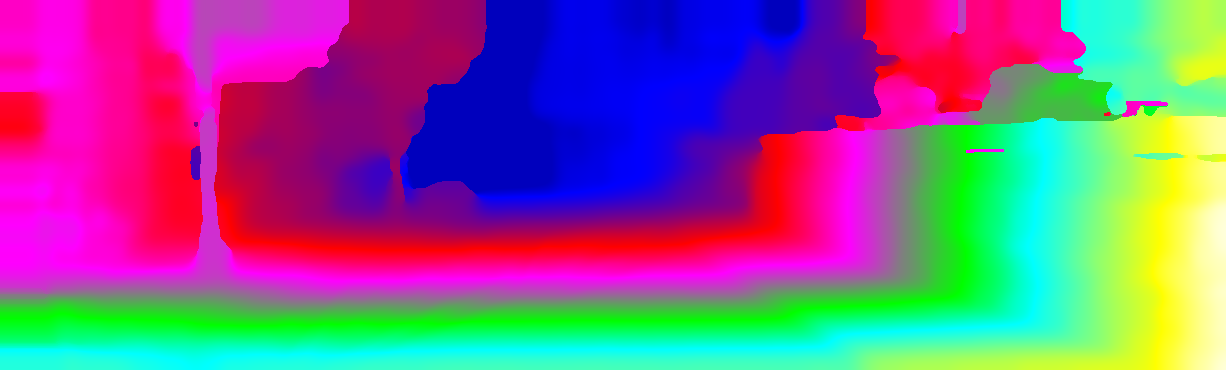

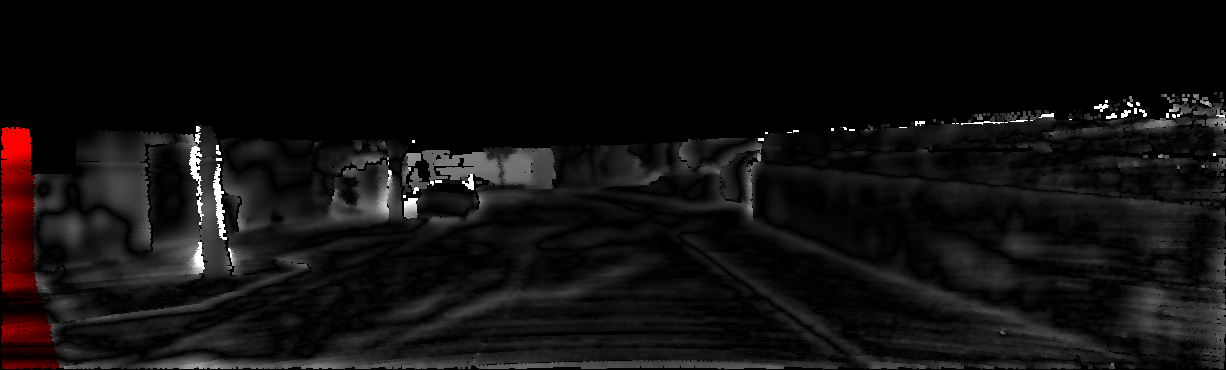

Test Image 14

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 1.51 % 2.32 % 0.5 px 0.5 px
3 pixels 0.51 % 0.80 % 0.5 px 0.5 px
4 pixels 0.41 % 0.62 % 0.5 px 0.5 px
5 pixels 0.36 % 0.53 % 0.5 px 0.5 px
This table as LaTeX

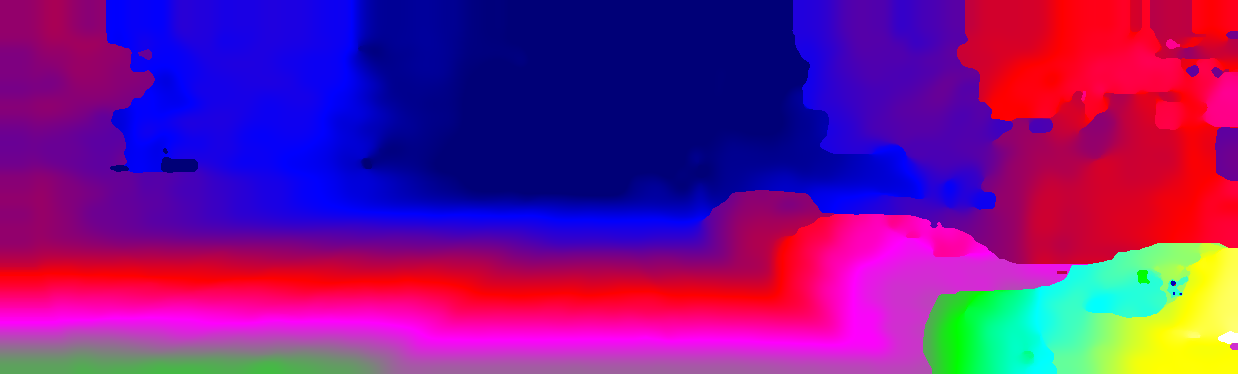

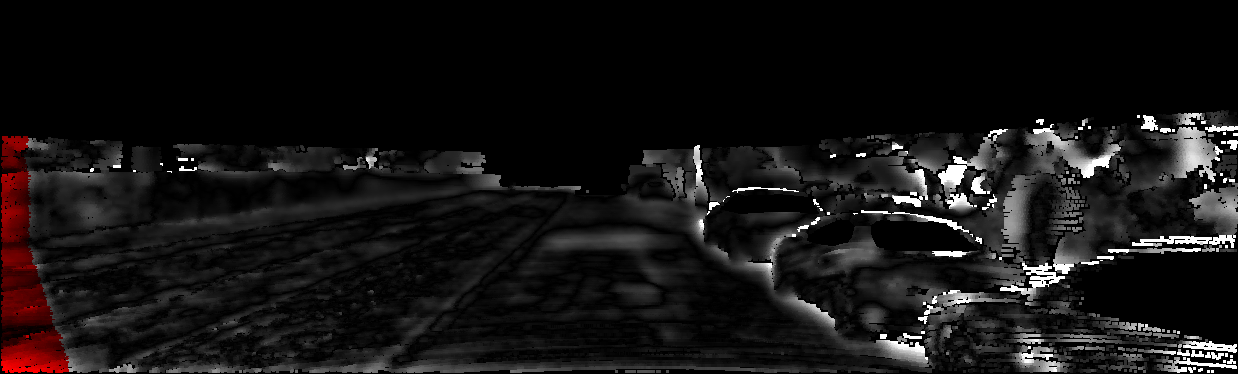

Test Image 15

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 4.81 % 5.68 % 0.7 px 0.8 px
3 pixels 2.62 % 2.82 % 0.7 px 0.8 px
4 pixels 1.67 % 1.74 % 0.7 px 0.8 px
5 pixels 1.22 % 1.21 % 0.7 px 0.8 px
This table as LaTeX

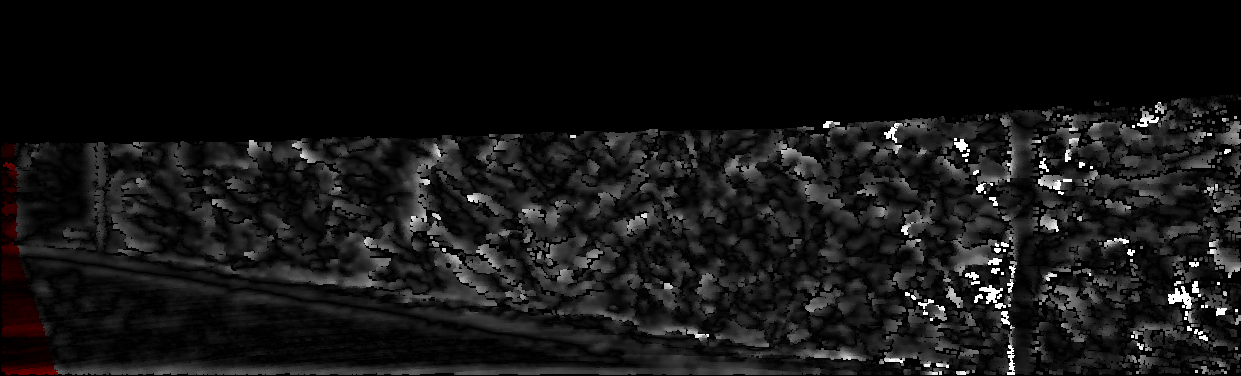

Test Image 16

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 2.98 % 2.93 % 0.6 px 0.6 px
3 pixels 0.95 % 0.93 % 0.6 px 0.6 px
4 pixels 0.56 % 0.55 % 0.6 px 0.6 px
5 pixels 0.41 % 0.40 % 0.6 px 0.6 px
This table as LaTeX

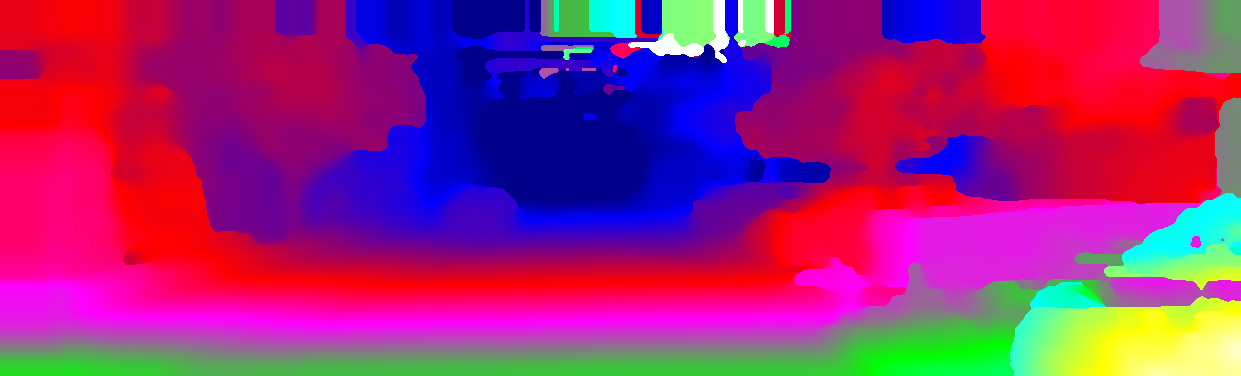

Test Image 17

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 6.35 % 7.44 % 1.0 px 1.1 px
3 pixels 4.57 % 5.17 % 1.0 px 1.1 px
4 pixels 3.72 % 4.04 % 1.0 px 1.1 px
5 pixels 2.91 % 3.18 % 1.0 px 1.1 px
This table as LaTeX

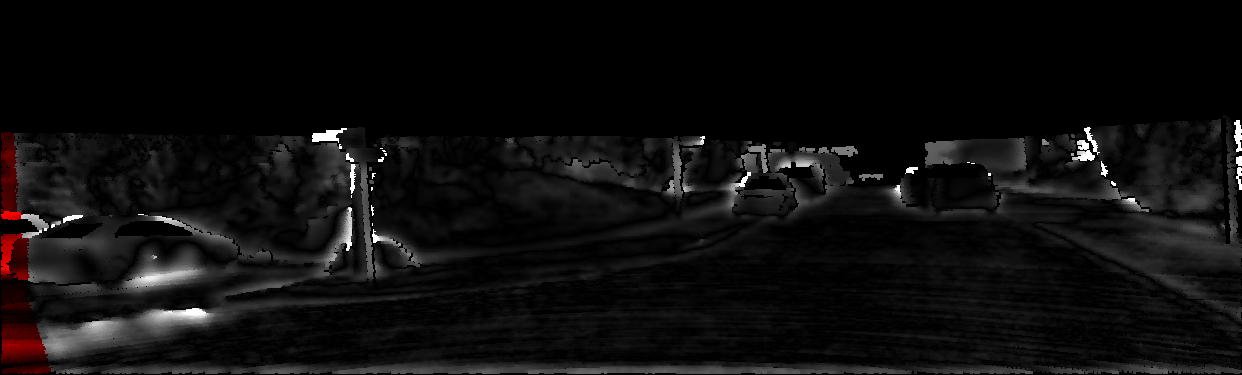

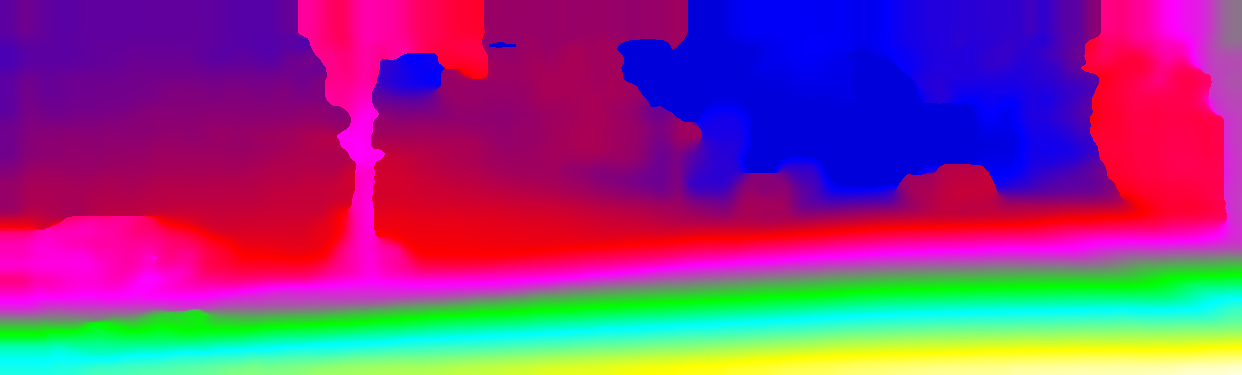

Test Image 18

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 1.99 % 2.23 % 0.4 px 0.4 px
3 pixels 0.91 % 1.00 % 0.4 px 0.4 px
4 pixels 0.47 % 0.52 % 0.4 px 0.4 px
5 pixels 0.31 % 0.33 % 0.4 px 0.4 px
This table as LaTeX





Test Image 19

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 1.61 % 3.12 % 0.5 px 0.5 px
3 pixels 0.81 % 1.21 % 0.5 px 0.5 px
4 pixels 0.59 % 0.77 % 0.5 px 0.5 px
5 pixels 0.49 % 0.60 % 0.5 px 0.5 px
This table as LaTeX
