Method

Large Displacement Optical Flow [LDOF]
http://lmb.informatik.uni-freiburg.de/resources/binaries/

Submitted on 22 Feb. 2012 18:13 by
Andreas Geiger (MPI Tübingen)

Running time:1 min
Environment:1 core @ 2.5 Ghz (C/C++)

Method Description:
Descriptor matching on regions provides a sparse
set of hypotheses for correspondences. These are
integrated into a variational approach and guide
the local optimization to large displacement
solutions. The variational optimization selects
among the hypotheses and provides dense and
subpixel accurate estimates, making use of
geometric constraints and all available image
information.
Parameters:
default parameters
Latex Bibtex:
@ARTICLE{Brox11,
author={Brox, T. and Malik, J.},
journal={PAMI},
title={Large Displacement Optical Flow:
Descriptor Matching in Variational Motion
Estimation},
year={2011},
month={March},
volume={33},
pages={500-513}
}

Detailed Results

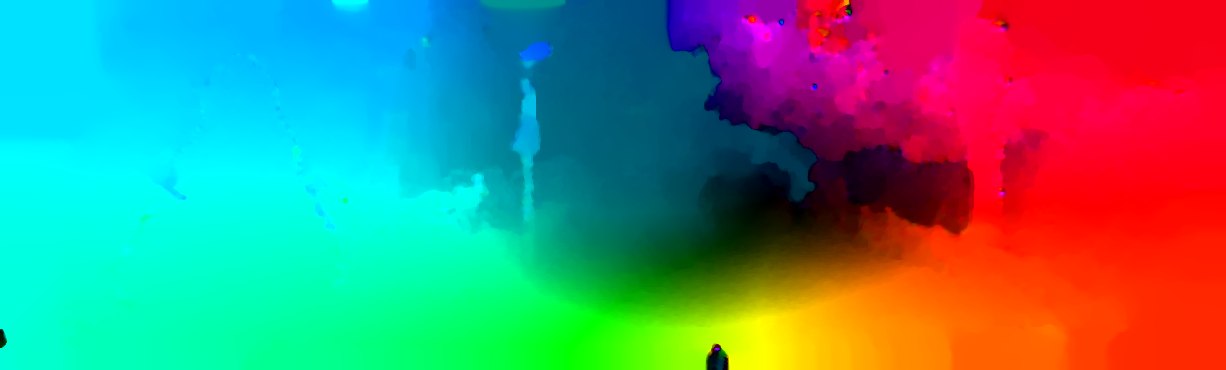

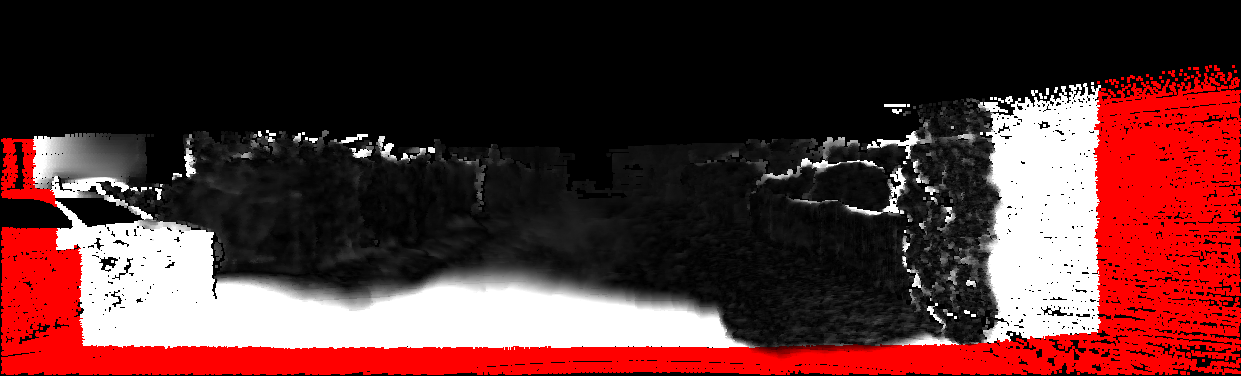

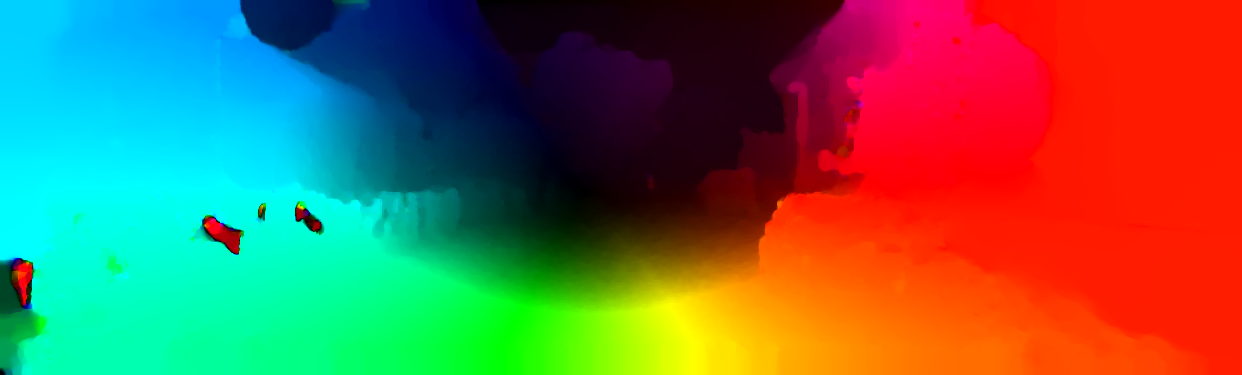

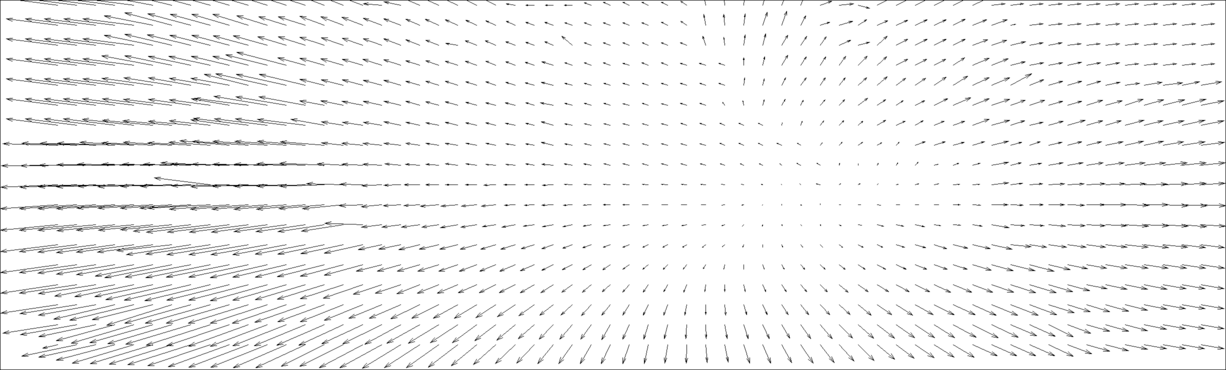

This page provides detailed results for the method(s) selected. For each of the first 20 test images, the number of erroneous pixels at all thresholds is depicted in the table. Underneath, the left input image, the disparity / end-point error map and the estimated (and interpolated) disparity / optical flow map are shown. The error map scales linearly between 0 (black) and >=5 (white) pixels error. Red denotes all occluded pixels, falling outside the image boundaries. The false color map is scaled to the largest ground truth disparity / flow value.

Test Set Average

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 24.43 % 33.89 % 5.6 px 12.4 px
3 pixels 21.93 % 31.39 % 5.6 px 12.4 px
4 pixels 20.22 % 29.58 % 5.6 px 12.4 px
5 pixels 18.83 % 28.07 % 5.6 px 12.4 px
This table as LaTeX

Reflective Regions

This table as LaTeX

Test Image 0

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 29.05 % 39.38 % 3.2 px 8.6 px
3 pixels 24.91 % 35.64 % 3.2 px 8.6 px
4 pixels 21.87 % 32.62 % 3.2 px 8.6 px
5 pixels 19.41 % 30.18 % 3.2 px 8.6 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 1

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 10.29 % 21.94 % 1.2 px 3.0 px
3 pixels 8.28 % 19.22 % 1.2 px 3.0 px
4 pixels 6.76 % 16.94 % 1.2 px 3.0 px
5 pixels 5.73 % 15.13 % 1.2 px 3.0 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

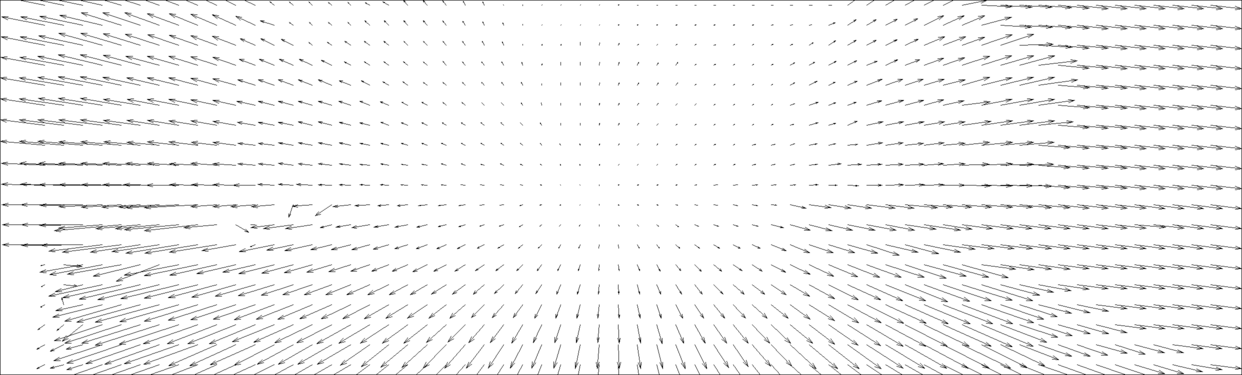

Test Image 2

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 23.26 % 35.24 % 4.8 px 9.6 px
3 pixels 21.36 % 33.14 % 4.8 px 9.6 px
4 pixels 20.11 % 31.52 % 4.8 px 9.6 px
5 pixels 18.81 % 29.83 % 4.8 px 9.6 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

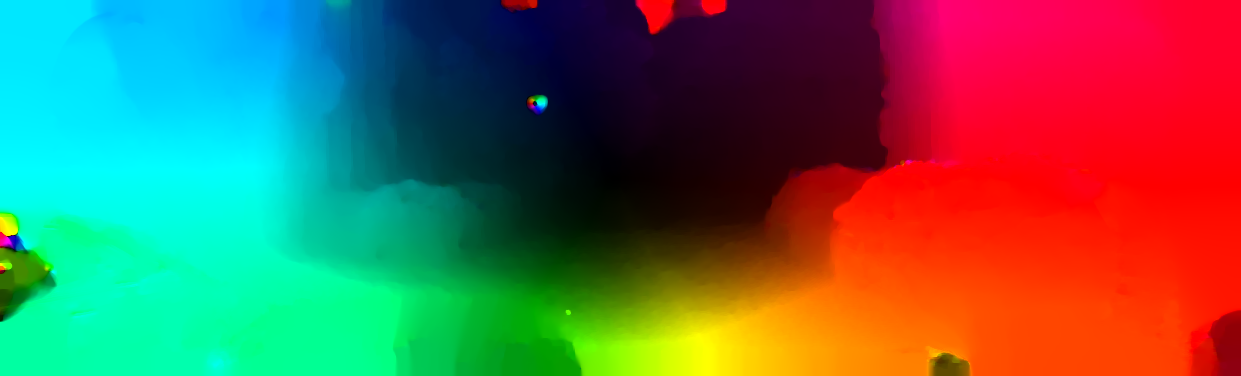

Test Image 3

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 19.69 % 32.65 % 2.1 px 6.6 px
3 pixels 16.06 % 29.19 % 2.1 px 6.6 px
4 pixels 13.41 % 26.47 % 2.1 px 6.6 px
5 pixels 11.61 % 24.52 % 2.1 px 6.6 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

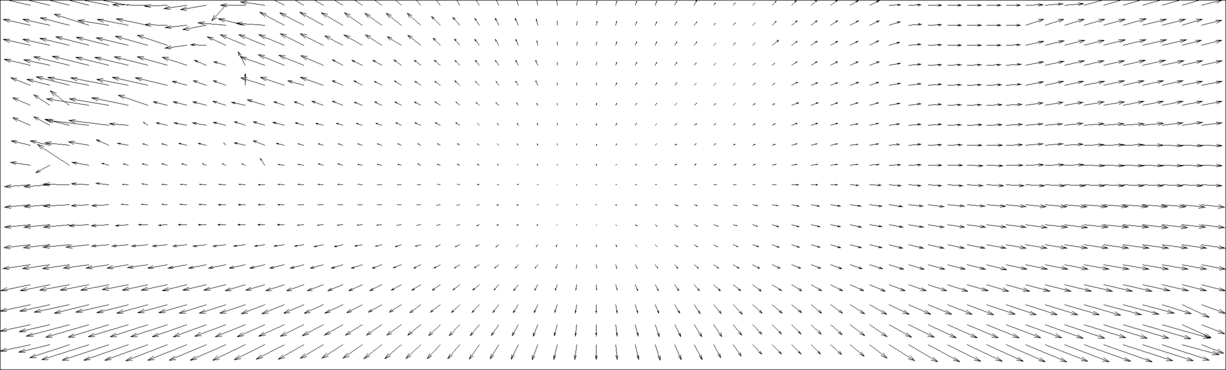

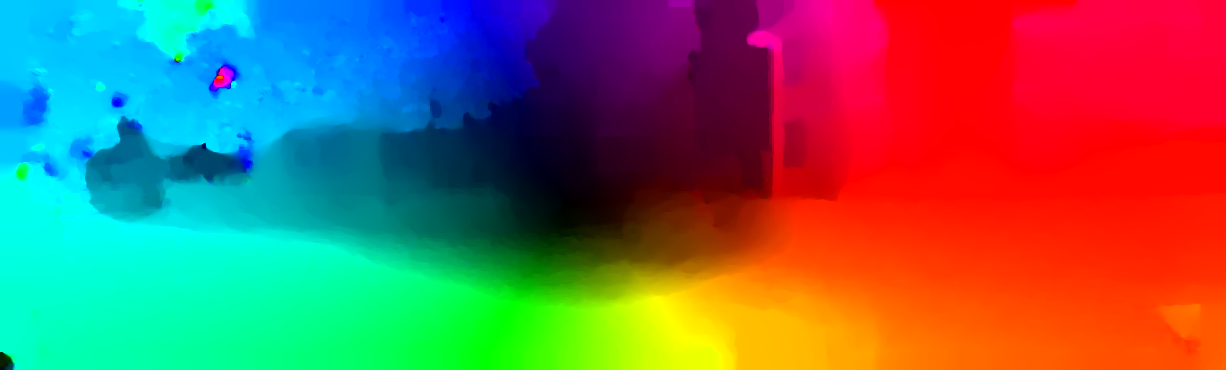

Test Image 4

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 8.93 % 15.63 % 0.9 px 1.6 px
3 pixels 6.65 % 12.22 % 0.9 px 1.6 px
4 pixels 5.07 % 9.73 % 0.9 px 1.6 px
5 pixels 4.03 % 7.91 % 0.9 px 1.6 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 5

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 30.78 % 41.80 % 8.7 px 17.6 px
3 pixels 28.27 % 39.60 % 8.7 px 17.6 px
4 pixels 26.73 % 38.26 % 8.7 px 17.6 px
5 pixels 25.44 % 37.12 % 8.7 px 17.6 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

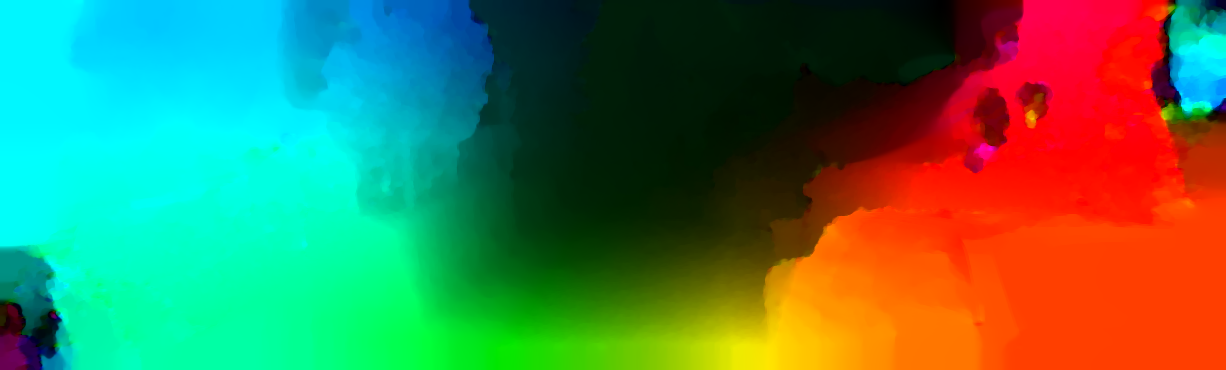

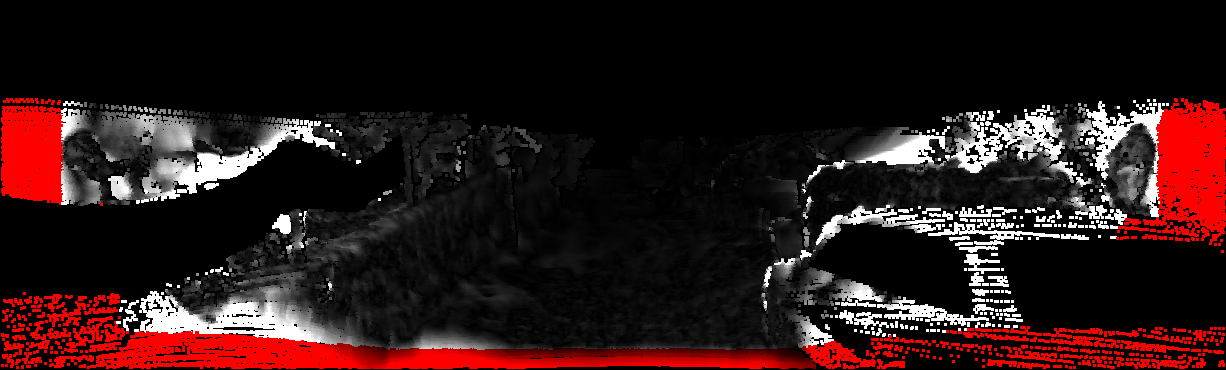

Test Image 6

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 12.49 % 23.28 % 1.5 px 5.6 px
3 pixels 9.76 % 20.11 % 1.5 px 5.6 px
4 pixels 7.70 % 17.35 % 1.5 px 5.6 px
5 pixels 6.41 % 15.08 % 1.5 px 5.6 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

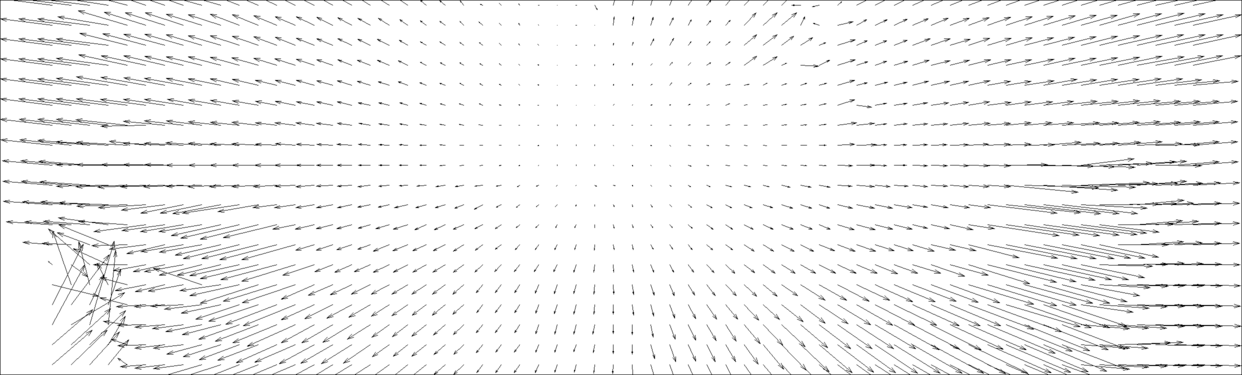

Test Image 7

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 30.97 % 41.99 % 5.4 px 13.9 px
3 pixels 27.45 % 38.72 % 5.4 px 13.9 px
4 pixels 24.78 % 36.13 % 5.4 px 13.9 px
5 pixels 22.49 % 33.84 % 5.4 px 13.9 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

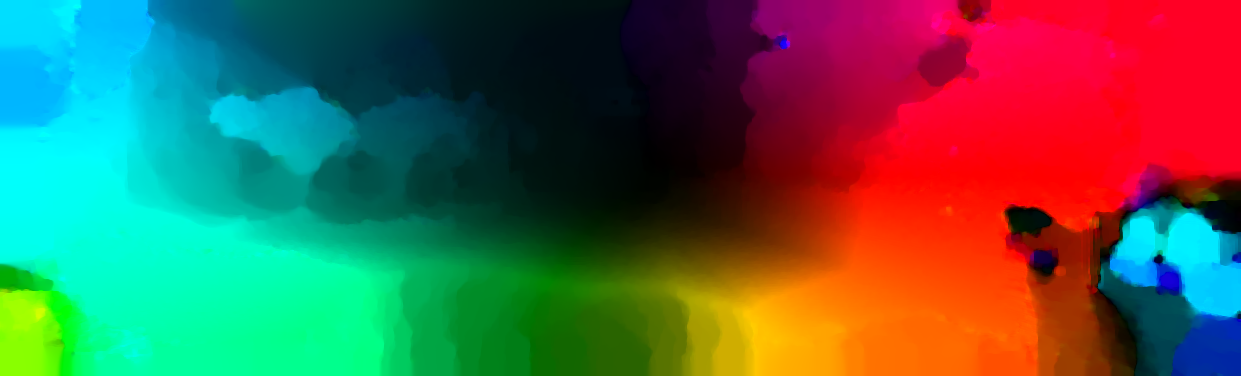

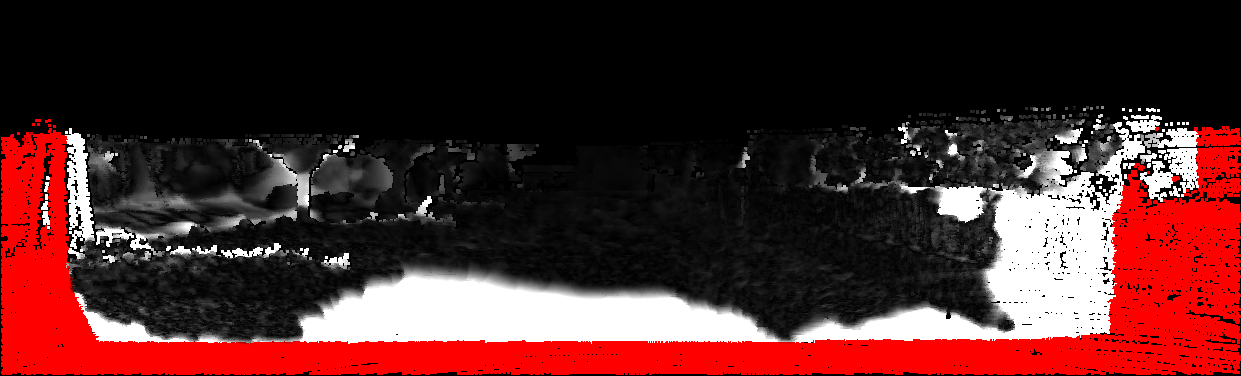

Test Image 8

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 26.15 % 39.40 % 6.6 px 19.5 px
3 pixels 23.74 % 37.44 % 6.6 px 19.5 px
4 pixels 21.93 % 35.92 % 6.6 px 19.5 px
5 pixels 20.48 % 34.65 % 6.6 px 19.5 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

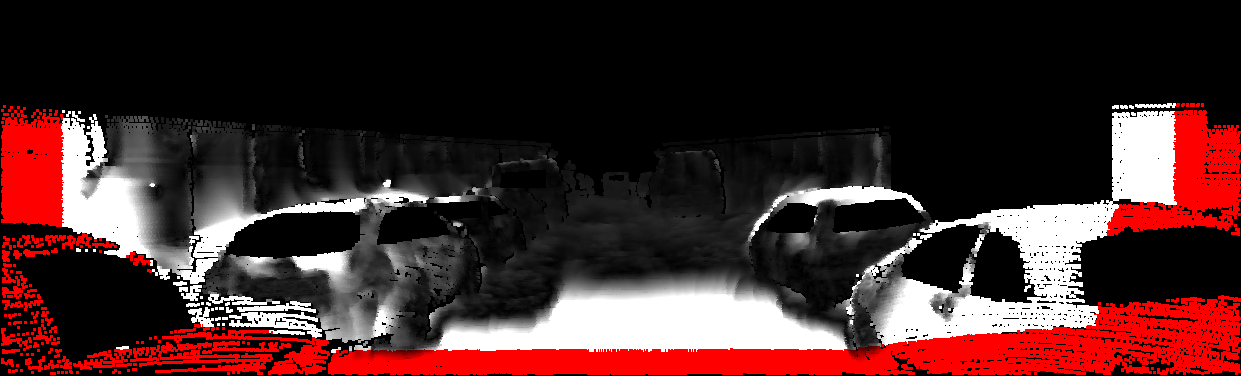

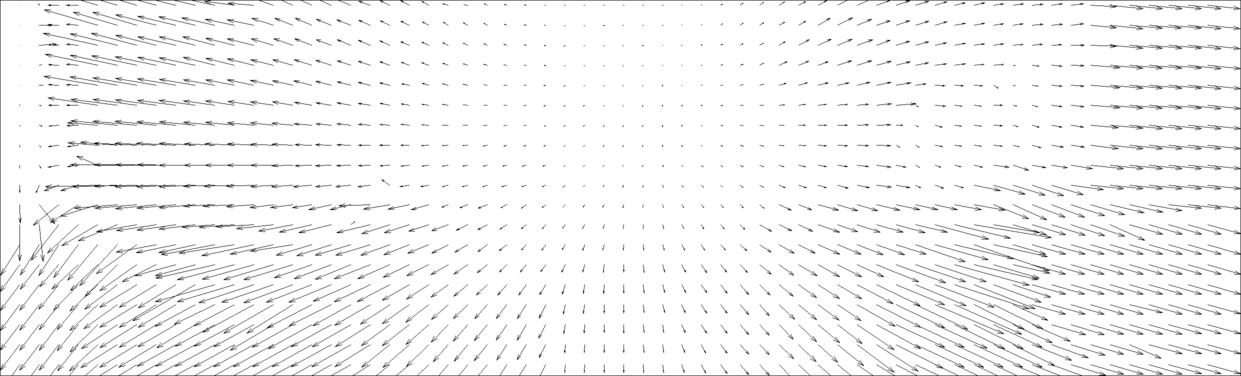

Test Image 9

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 35.58 % 45.52 % 6.5 px 14.2 px
3 pixels 30.42 % 41.05 % 6.5 px 14.2 px
4 pixels 26.97 % 37.97 % 6.5 px 14.2 px
5 pixels 24.44 % 35.59 % 6.5 px 14.2 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 10

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 33.53 % 45.18 % 9.7 px 24.2 px
3 pixels 31.00 % 42.99 % 9.7 px 24.2 px
4 pixels 29.18 % 41.40 % 9.7 px 24.2 px
5 pixels 27.49 % 39.88 % 9.7 px 24.2 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 11

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 13.58 % 26.64 % 2.2 px 8.8 px
3 pixels 10.74 % 23.36 % 2.2 px 8.8 px
4 pixels 9.32 % 21.41 % 2.2 px 8.8 px
5 pixels 8.34 % 19.71 % 2.2 px 8.8 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

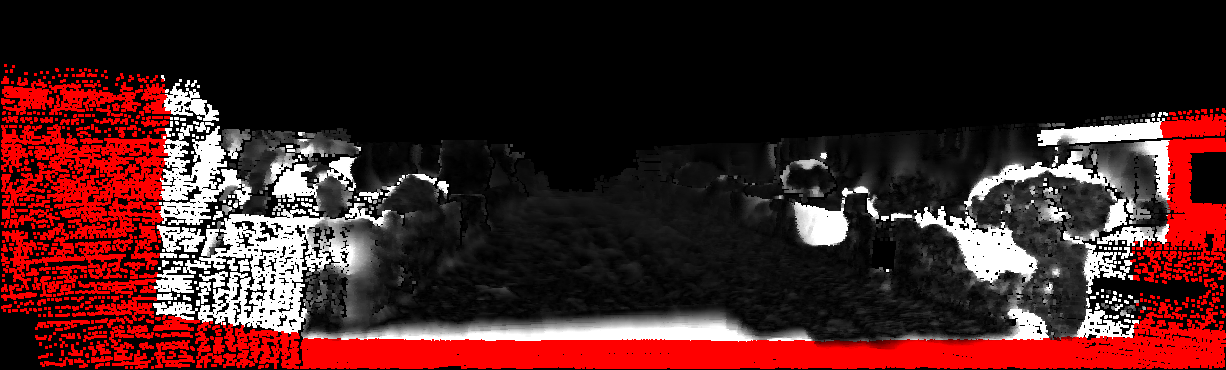

Test Image 12

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 17.76 % 30.80 % 4.0 px 13.1 px
3 pixels 14.89 % 28.25 % 4.0 px 13.1 px
4 pixels 12.86 % 26.32 % 4.0 px 13.1 px
5 pixels 11.06 % 24.64 % 4.0 px 13.1 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

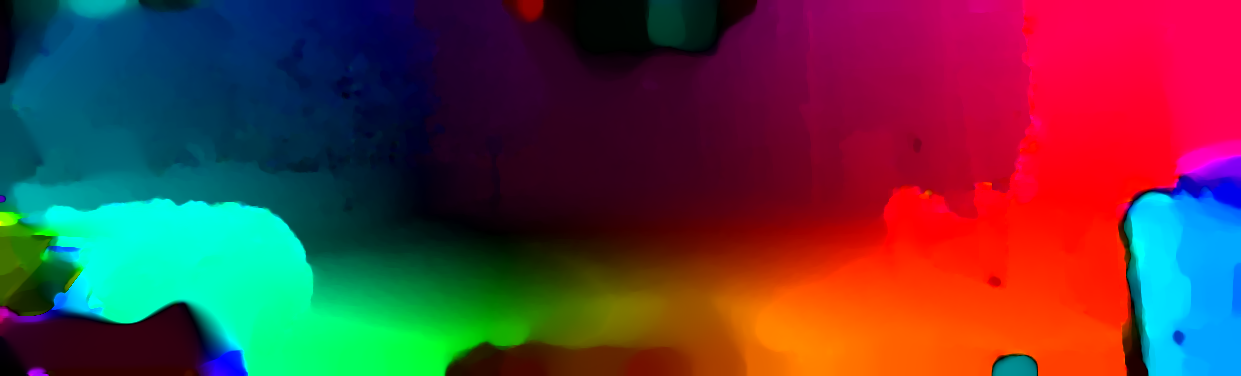

Test Image 13

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 20.72 % 30.37 % 4.1 px 12.1 px
3 pixels 18.04 % 27.91 % 4.1 px 12.1 px
4 pixels 16.28 % 26.16 % 4.1 px 12.1 px
5 pixels 14.90 % 24.69 % 4.1 px 12.1 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 14

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 43.20 % 52.86 % 11.4 px 23.4 px
3 pixels 40.93 % 50.98 % 11.4 px 23.4 px
4 pixels 39.10 % 49.45 % 11.4 px 23.4 px
5 pixels 37.52 % 48.15 % 11.4 px 23.4 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

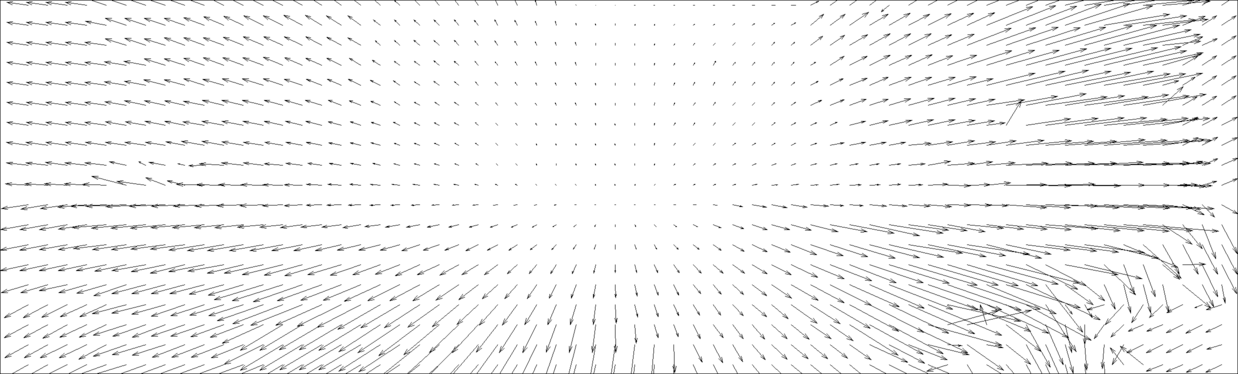

Test Image 15

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 33.14 % 44.81 % 6.4 px 18.5 px
3 pixels 29.91 % 42.06 % 6.4 px 18.5 px
4 pixels 27.66 % 40.07 % 6.4 px 18.5 px
5 pixels 25.61 % 38.23 % 6.4 px 18.5 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

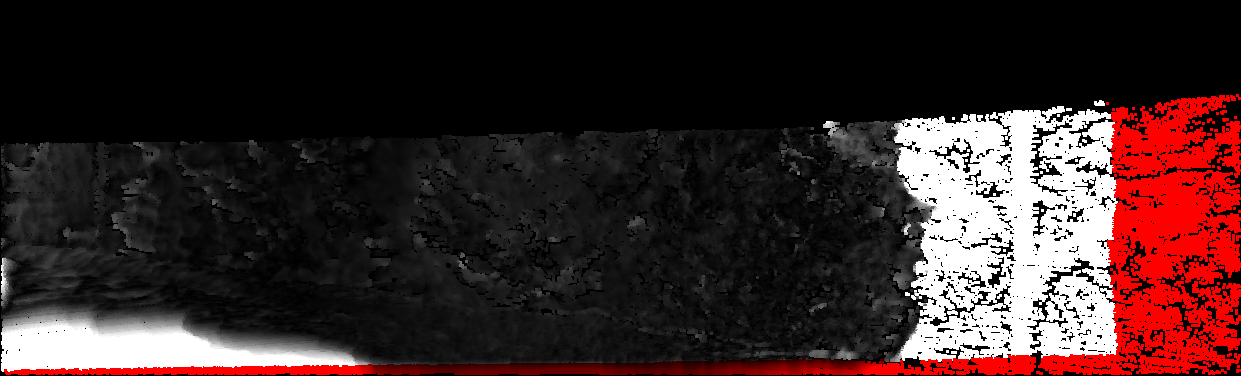

Test Image 16

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 18.46 % 24.83 % 10.3 px 18.7 px
3 pixels 17.50 % 23.42 % 10.3 px 18.7 px
4 pixels 16.76 % 22.56 % 10.3 px 18.7 px
5 pixels 16.02 % 21.84 % 10.3 px 18.7 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot

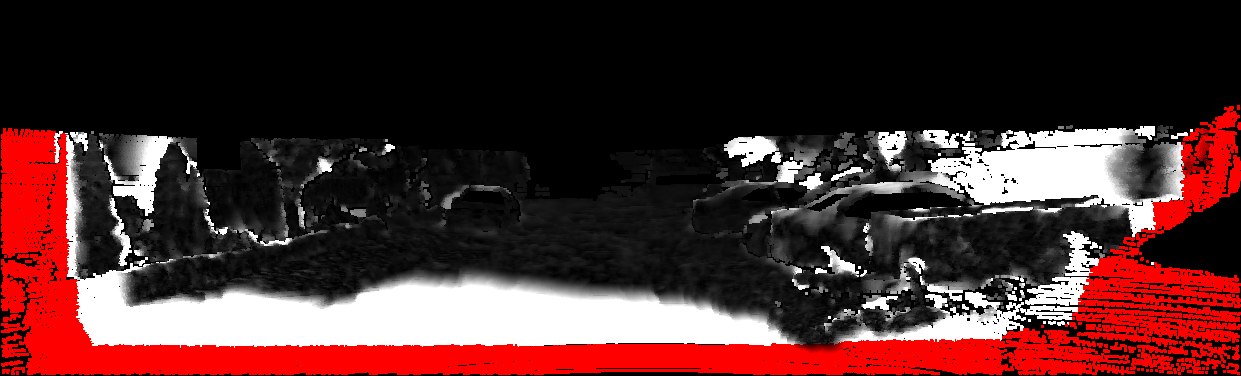

Test Image 17

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 34.84 % 45.03 % 4.8 px 13.8 px
3 pixels 31.40 % 42.06 % 4.8 px 13.8 px
4 pixels 28.95 % 39.92 % 4.8 px 13.8 px
5 pixels 26.63 % 37.87 % 4.8 px 13.8 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 18

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 16.77 % 25.09 % 2.4 px 5.8 px
3 pixels 15.20 % 23.31 % 2.4 px 5.8 px
4 pixels 13.93 % 21.95 % 2.4 px 5.8 px
5 pixels 12.74 % 20.71 % 2.4 px 5.8 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot



Test Image 19

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 21.31 % 30.51 % 2.8 px 5.5 px
3 pixels 19.05 % 28.12 % 2.8 px 5.5 px
4 pixels 17.27 % 26.05 % 2.8 px 5.5 px
5 pixels 15.70 % 24.19 % 2.8 px 5.5 px
This table as LaTeX





This figure as: png eps pdf txt gnuplot
