Method

Fully Convolutional Neural Network with Large Context [FCN-LC]


Submitted on 27 Aug. 2015 17:44 by
Caio César Teodoro Mendes (University of São Paulo)

Running time:0.03 s
Environment:GPU Titan X

Method Description:
Convolutional ANN trained on patches and inference
done using a fully convolutional network.

Video demo: https://youtu.be/_VESRS81Pvs
Parameters:
conv 32
Latex Bibtex:
@INPROCEEDINGS{Mendes2016ICRA,
author={Caio César Teodoro Mendes and Vincent
Frémont and Denis Fernando Wolf},
booktitle={IEEE Conference on Robotics and
Automation (ICRA)},
title={Exploiting Fully Convolutional Neural
Networks for Fast Road Detection},
year={2016},
month={May}
}

Evaluation in Bird's Eye View


Benchmark MaxF AP PRE REC FPR FNR
UM_ROAD 89.36 % 78.80 % 89.35 % 89.37 % 4.85 % 10.63 %
UMM_ROAD 94.09 % 90.26 % 94.05 % 94.13 % 6.55 % 5.87 %
UU_ROAD 86.27 % 75.37 % 86.65 % 85.89 % 4.31 % 14.11 %
URBAN_ROAD 90.79 % 85.83 % 90.87 % 90.72 % 5.02 % 9.28 %
This table as LaTeX

Behavior Evaluation


This table as LaTeX

Road/Lane Detection

The following plots show precision/recall curves for the bird's eye view evaluation.


Distance-dependent Behavior Evaluation

The following plots show the F1 score/Precision/Hitrate with respect to the longitudinal distance which has been used for evaluation.


Visualization of Results

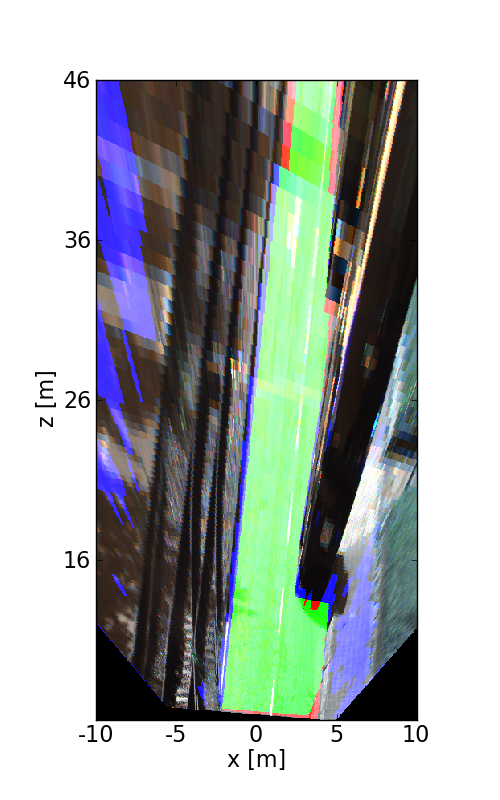

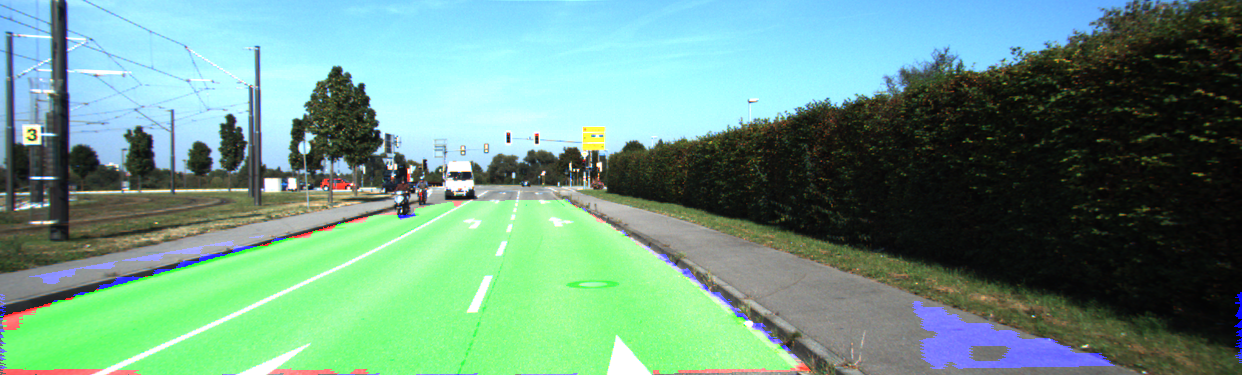

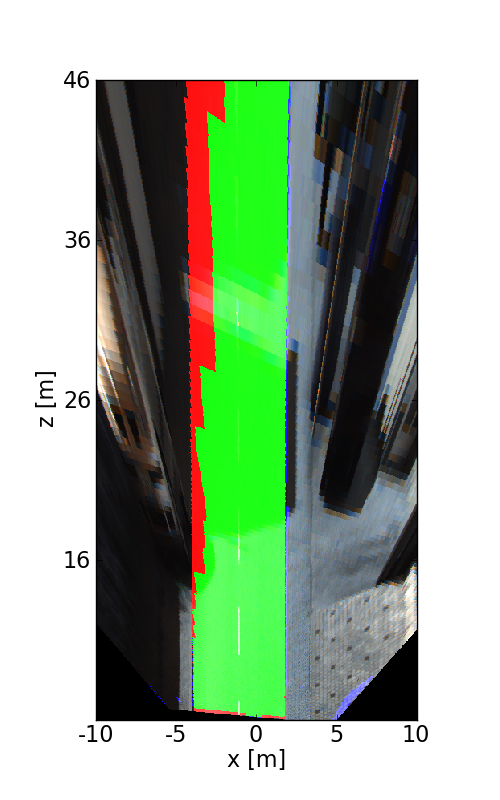

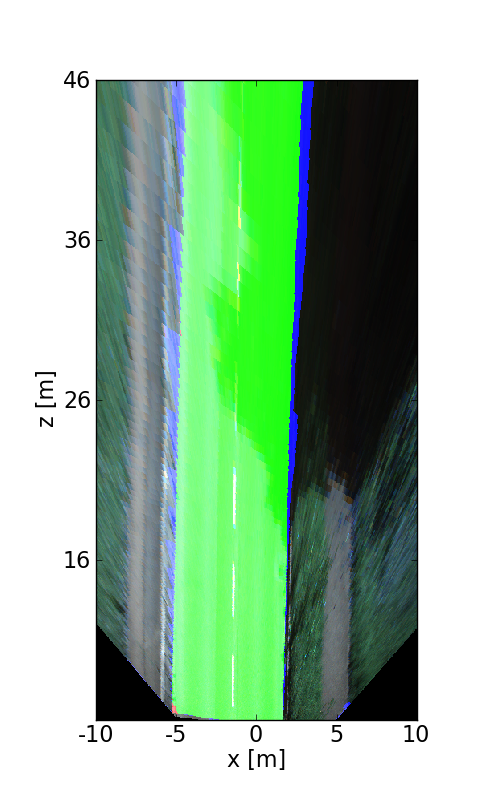

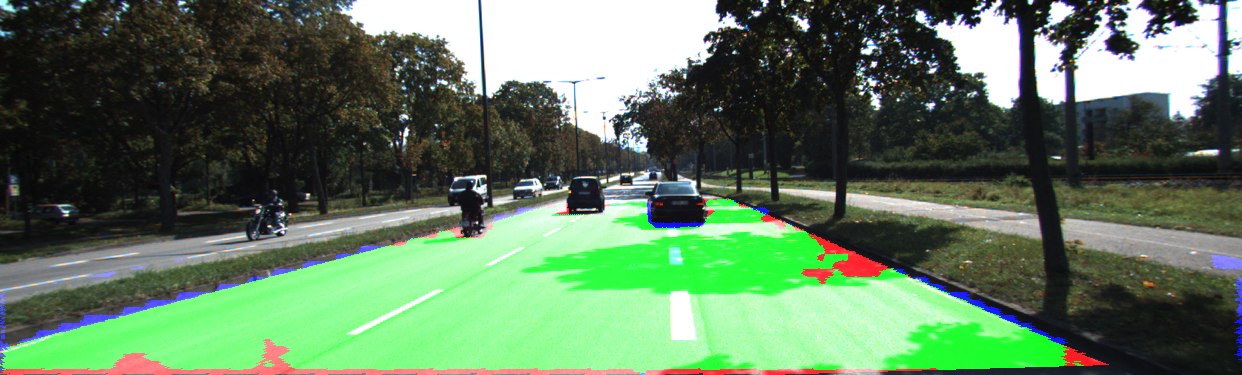

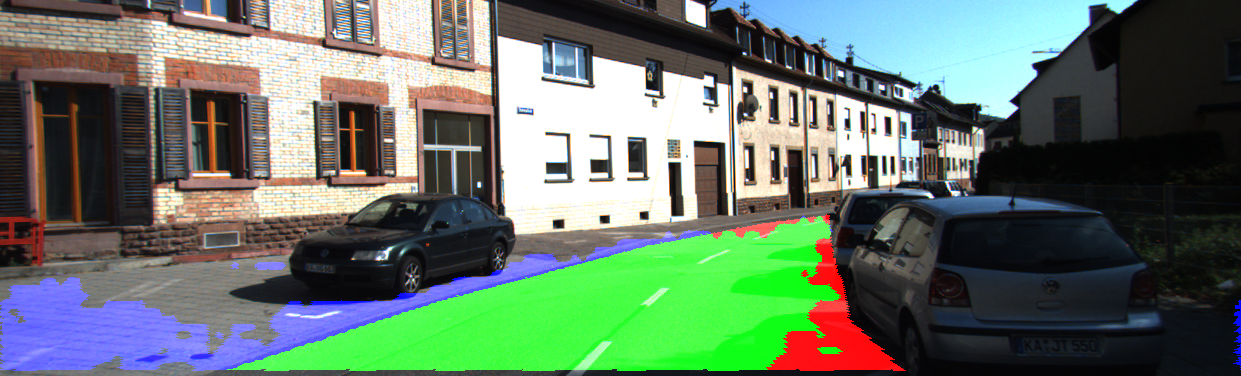

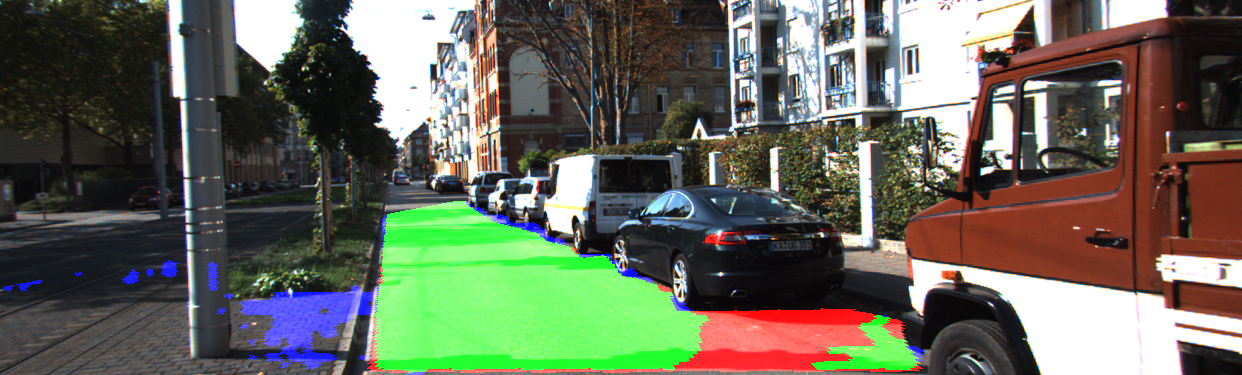

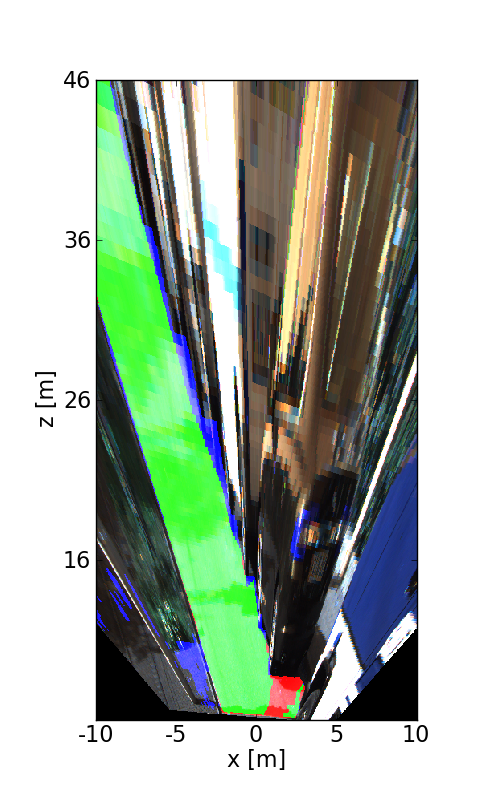

The following images illustrate the performance of the method qualitatively on a couple of test images. We first show results in the perspective image, followed by evaluation in bird's eye view. Here, red denotes false negatives, blue areas correspond to false positives and green represents true positives.



This figure as: png

This figure as: png

This figure as: png

This figure as: png

This figure as: png

This figure as: png

This figure as: png

This figure as: png

This figure as: png

This figure as: png

This figure as: png

This figure as: png

This figure as: png

This figure as: png

This figure as: png

This figure as: png

This figure as: png

This figure as: png
