Robust Local Optical Flow Estimation using Bilinear Equations for Sparse Motion Estimation [BERLOF]
http://www.nue.tu-berlin.de/menue/forschung/projekte/rlof/

Submitted on 16 May. 2013 13:49 by
Tobias Senst (Technische Universität Berlin)

Running time:0.231 s
Environment:GPU @ 700 Mhz (C/C++) GeForce GTX 680

Method Description:
The Method is based on the Robust Local Optical Flow method. A new iterative refinement scheme based on a system of bilinear equations is used that lead to direct solutions.
Parameters:
Level = 4
max. no. Iterations = 30
Window-Size = 15x15
\sigma = (16, 50)
Confidence-Type = Forward/Backward Motion
Confidence-Threshold = 0.3

Latex Bibtex:
@INPROCEEDINGS{Senst_ICIP_2013,
AUTHOR = {Tobias Senst and Jonas Geistert and Ivo Keller and Thomas Sikora},
TITLE = {Robust Local Optical Flow Estimation using Bilinear Equations for Sparse Motion Estimation},
BOOKTITLE = {20th IEEE International Conference on Image Processing},
YEAR = {2013},
MONTH = sep,
ADDRESS = {Melbourne, Australia},
ABSTRACT = {This article presents a theoretical framework to decrease the computation effort of the Robust Local Optical Flow method which is based on the Lucas Kanade method. We show mathematically,how to transform the iterative scheme of the feature tracker into a system of bilinear equations and thus estimate the motion vectors directly by analyzing its zeros. Furthermore, we show that it is possible to parallelise our approach efficiently on a GPU, thus, outperforming the current OpenCV-OpenCL implementation of the pyramidal Lucas Kanade method in terms of runtime and accuracy. Finally, an evaluation is given for the Middlebury Optical Flow and the KITTI datasets.}
}

Detailed Results

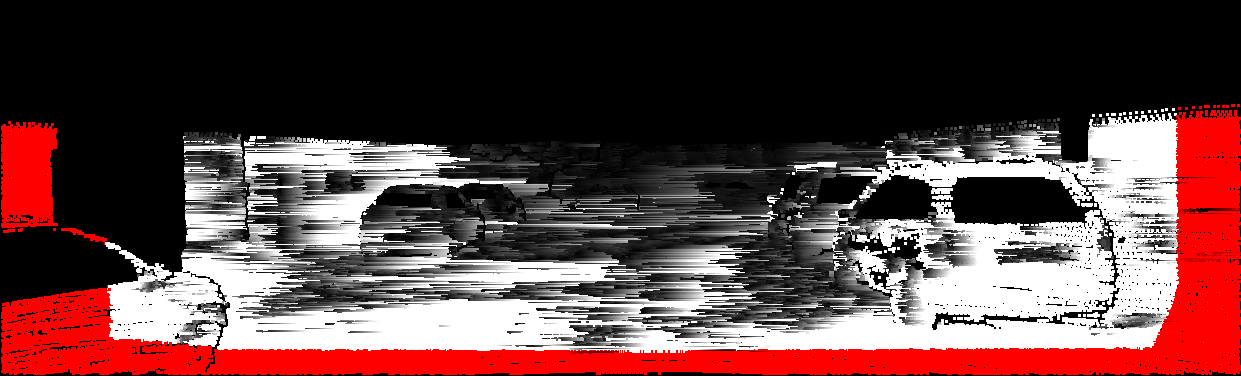

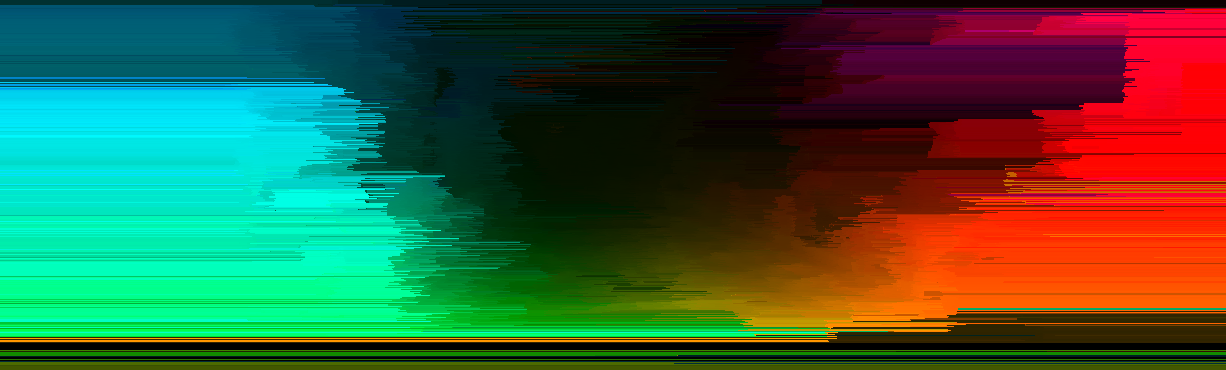

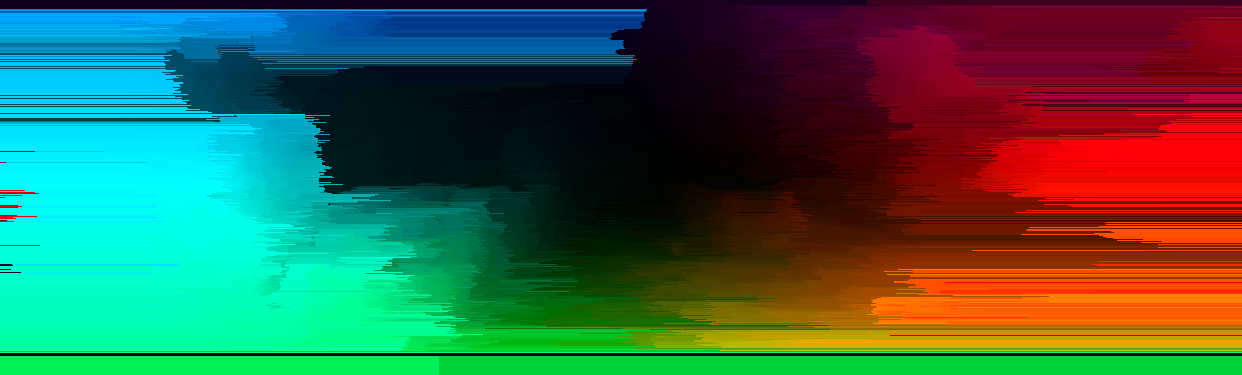

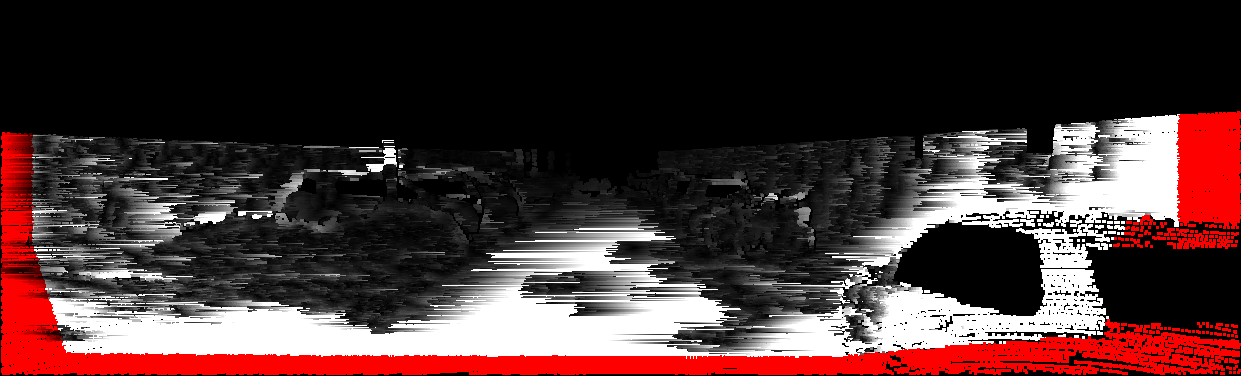

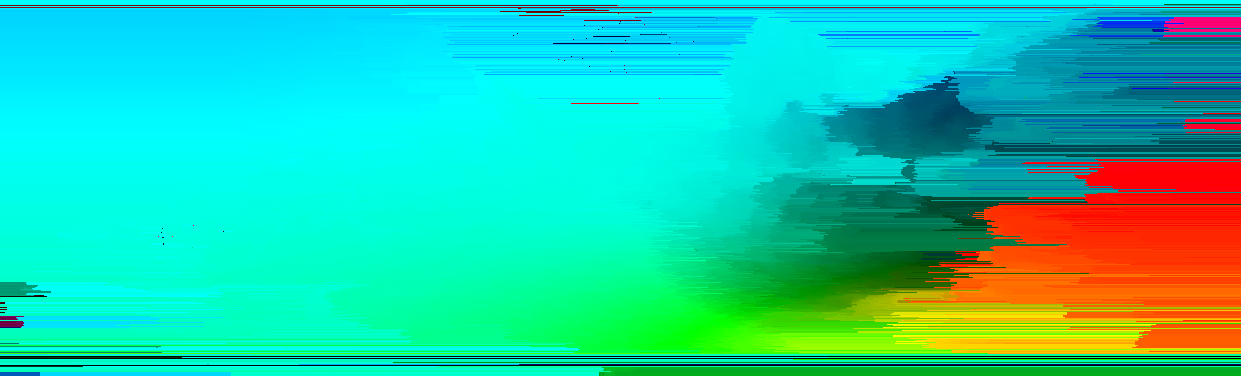

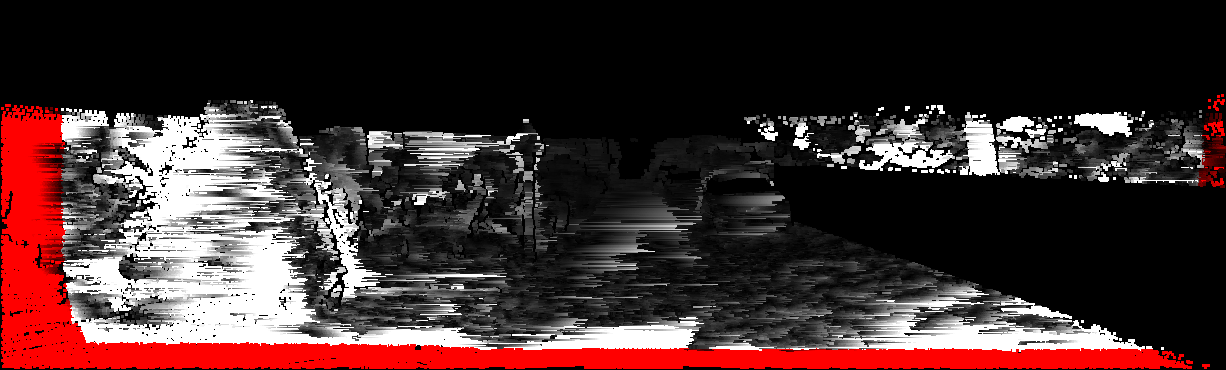

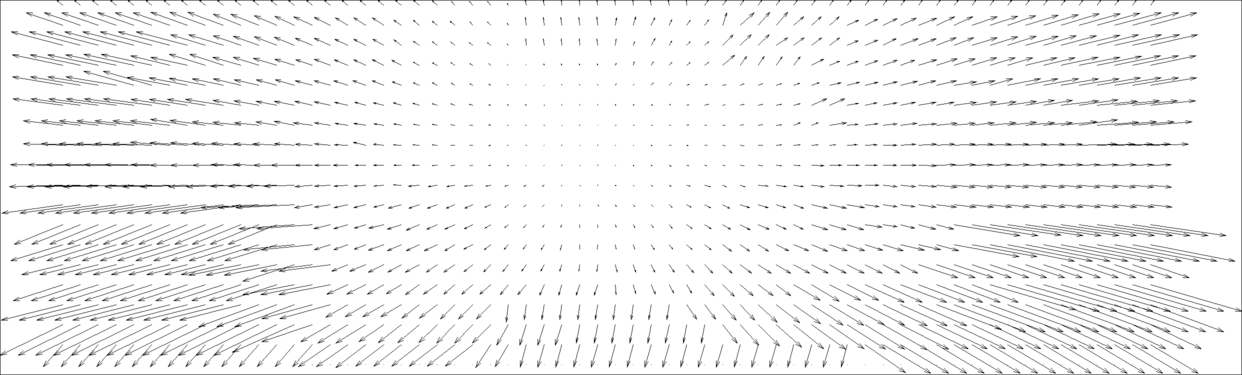

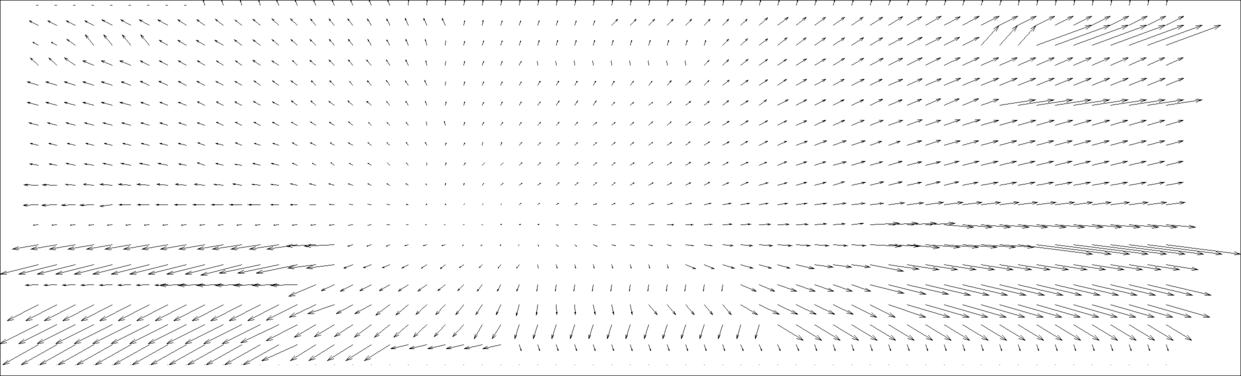

This page provides detailed results for the method(s) selected. For each of the first 20 test images, the number of erroneous pixels at all thresholds is depicted in the table. Underneath, the left input image, the disparity / end-point error map and the estimated (and interpolated) disparity / optical flow map are shown. The error map scales linearly between 0 (black) and >=5 (white) pixels error. Red denotes all occluded pixels, falling outside the image boundaries. The false color map is scaled to the largest ground truth disparity / flow value.

Test Set Average

Error Out-Noc Out-All Avg-Noc Avg-All
2 pixels 43.85 % 50.69 % 8.5 px 16.2 px
3 pixels 37.66 % 45.27 % 8.5 px 16.2 px
4 pixels 33.67 % 41.73 % 8.5 px 16.2 px
5 pixels 30.69 % 39.07 % 8.5 px 16.2 px
This table as LaTeX
