Method

Volumetric Correspondence Networks for Optical Flow [VCN_RVC]
https://github.com/gengshan-y/VCN

Submitted on 14 Aug. 2020 06:28 by
Gengshan Yang (CMU)

Running time:0.36 s
Environment:GPU @ 2.5 Ghz (Python)

Method Description:
We introduce several simple modifications to the
optical flow volumetric layers that: 1)
significantly reduces computation and parameters,
2) enables test-time adaptation of cost volume
size, and 3) converges much faster.
Parameters:
- 1.2x resolution KITTI images are used
Latex Bibtex:
@inproceedings{yang2019vcn,
title={Volumetric Correspondence Networks for
Optical Flow},
author={Yang, Gengshan and Ramanan, Deva},
booktitle={NeurIPS},
year={2019}
}

Detailed Results

This page provides detailed results for the method(s) selected. For the first 20 test images, the percentage of erroneous pixels is depicted in the table. We use the error metric described in , which considers a pixel to be correctly estimated if the disparity or flow end-point error is <3px or <5% (for scene flow this criterion needs to be fulfilled for both disparity maps and the flow map). Underneath, the left input image, the estimated results and the error maps are shown (for disp_0/disp_1/flow/scene_flow, respectively). The error map uses the log-color scale described in , depicting correct estimates (<3px or <5% error) in blue and wrong estimates in red color tones. Dark regions in the error images denote the occluded pixels which fall outside the image boundaries. The false color maps of the results are scaled to the largest ground truth disparity values / flow magnitudes.

Test Set Average

Error Fl-bg Fl-fg Fl-all
All / All 8.53 18.30 10.15
All / Est 8.53 18.30 10.15
Noc / All 5.33 14.97 7.08
Noc / Est 5.33 14.97 7.08
This table as LaTeX

Test Image 0

Error Fl-bg Fl-fg Fl-all
All / All 3.09 28.05 6.52
All / Est 3.09 28.05 6.52
Noc / All 2.90 28.05 6.71
Noc / Est 2.90 28.05 6.71
This table as LaTeX

Input Image

Flow Result

Flow Error


Test Image 1

Error Fl-bg Fl-fg Fl-all
All / All 3.43 22.38 5.55
All / Est 3.43 22.38 5.55
Noc / All 3.33 22.38 5.69
Noc / Est 3.33 22.38 5.69
This table as LaTeX

Input Image

Flow Result

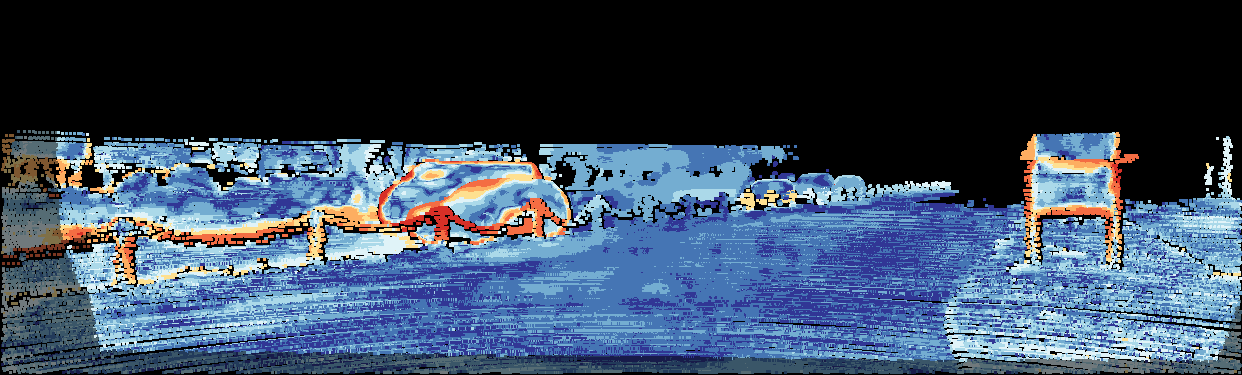

Flow Error


Test Image 2

Error Fl-bg Fl-fg Fl-all
All / All 8.32 17.38 8.76
All / Est 8.32 17.38 8.76
Noc / All 6.71 17.38 7.33
Noc / Est 6.71 17.38 7.33
This table as LaTeX

Input Image

Flow Result

Flow Error


Test Image 3

Error Fl-bg Fl-fg Fl-all
All / All 11.20 40.62 13.92
All / Est 11.20 40.62 13.92
Noc / All 8.19 23.44 9.51
Noc / Est 8.19 23.44 9.51
This table as LaTeX

Input Image

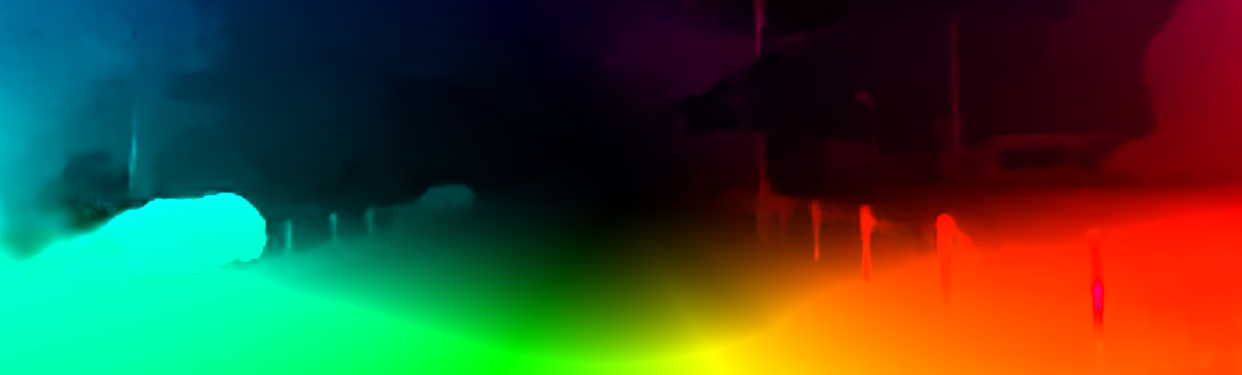

Flow Result

Flow Error


Test Image 4

Error Fl-bg Fl-fg Fl-all
All / All 8.57 26.22 11.50
All / Est 8.57 26.22 11.50
Noc / All 7.48 25.47 10.85
Noc / Est 7.48 25.47 10.85
This table as LaTeX

Input Image

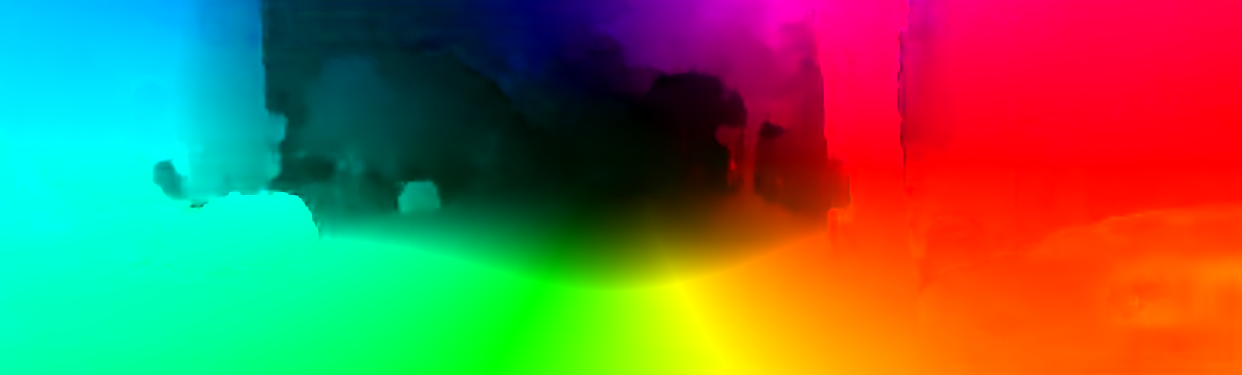

Flow Result

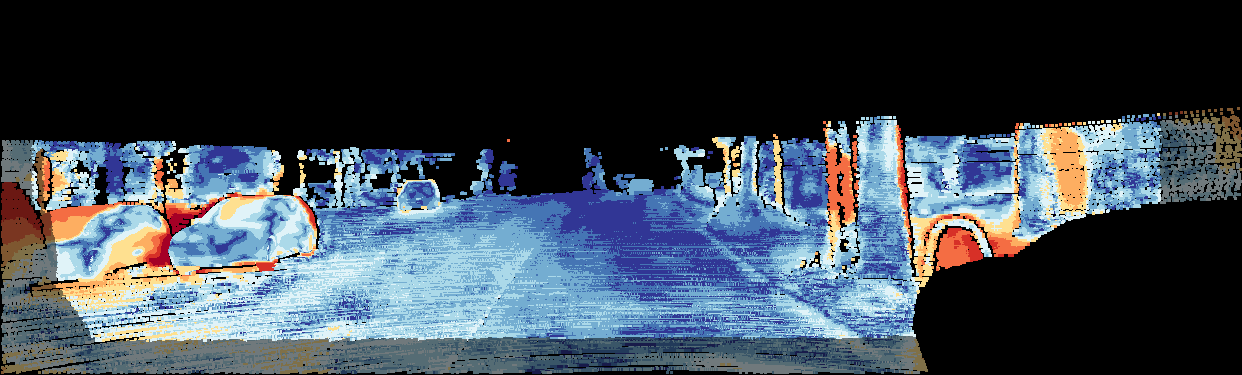

Flow Error


Test Image 5

Error Fl-bg Fl-fg Fl-all
All / All 8.44 0.06 7.69
All / Est 8.44 0.06 7.69
Noc / All 5.58 0.06 5.01
Noc / Est 5.58 0.06 5.01
This table as LaTeX

Input Image

Flow Result

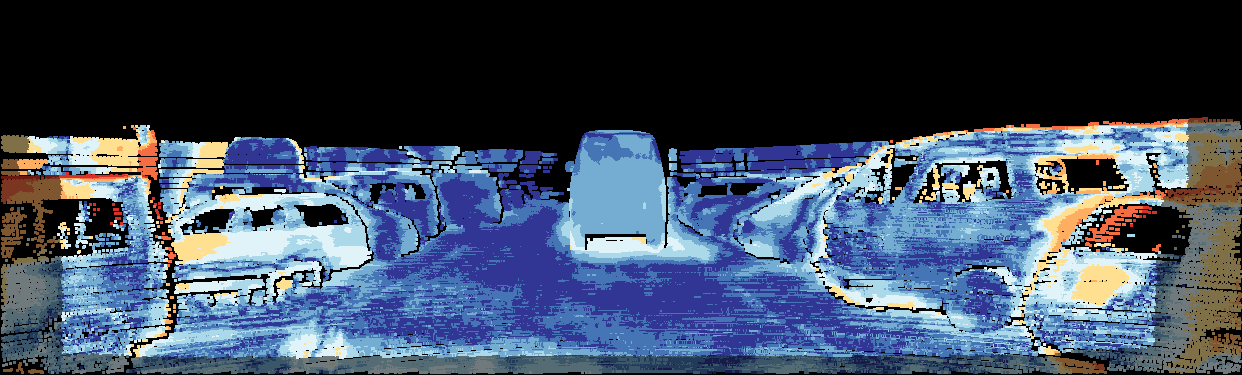

Flow Error


Test Image 6

Error Fl-bg Fl-fg Fl-all
All / All 8.25 1.74 7.57
All / Est 8.25 1.74 7.57
Noc / All 5.61 1.74 5.15
Noc / Est 5.61 1.74 5.15
This table as LaTeX

Input Image

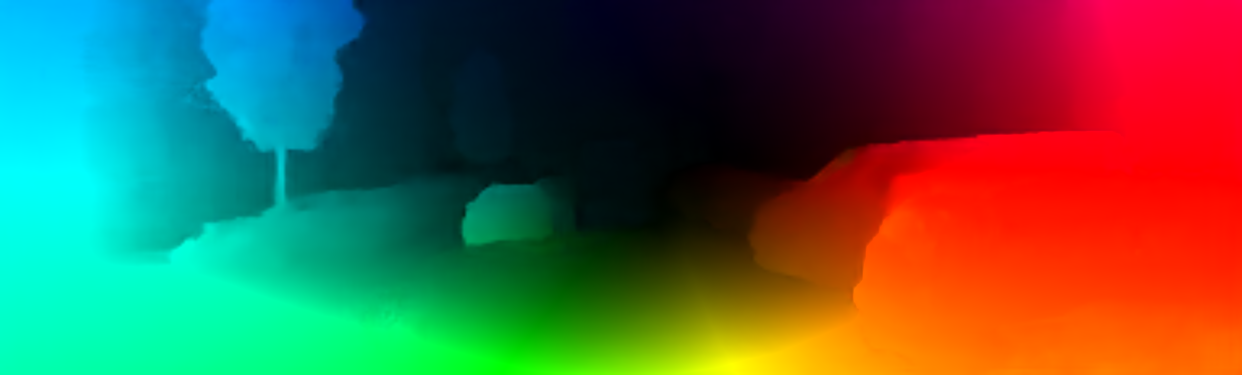

Flow Result

Flow Error


Test Image 7

Error Fl-bg Fl-fg Fl-all
All / All 1.97 35.35 8.50
All / Est 1.97 35.35 8.50
Noc / All 1.97 34.53 8.06
Noc / Est 1.97 34.53 8.06
This table as LaTeX

Input Image

Flow Result

Flow Error


Test Image 8

Error Fl-bg Fl-fg Fl-all
All / All 0.72 14.70 3.30
All / Est 0.72 14.70 3.30
Noc / All 0.72 14.70 3.30
Noc / Est 0.72 14.70 3.30
This table as LaTeX

Input Image

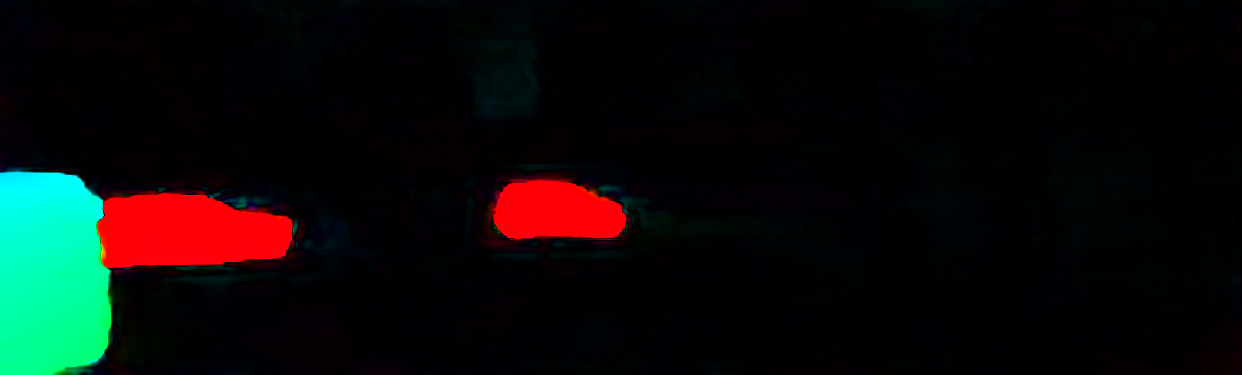

Flow Result

Flow Error


Test Image 9

Error Fl-bg Fl-fg Fl-all
All / All 0.93 26.16 7.38
All / Est 0.93 26.16 7.38
Noc / All 0.93 26.16 7.38
Noc / Est 0.93 26.16 7.38
This table as LaTeX

Input Image

Flow Result

Flow Error


Test Image 10

Error Fl-bg Fl-fg Fl-all
All / All 2.85 14.11 5.42
All / Est 2.85 14.11 5.42
Noc / All 2.71 14.11 5.67
Noc / Est 2.71 14.11 5.67
This table as LaTeX

Input Image

Flow Result

Flow Error


Test Image 11

Error Fl-bg Fl-fg Fl-all
All / All 3.35 8.69 4.31
All / Est 3.35 8.69 4.31
Noc / All 3.56 8.59 4.57
Noc / Est 3.56 8.59 4.57
This table as LaTeX

Input Image

Flow Result

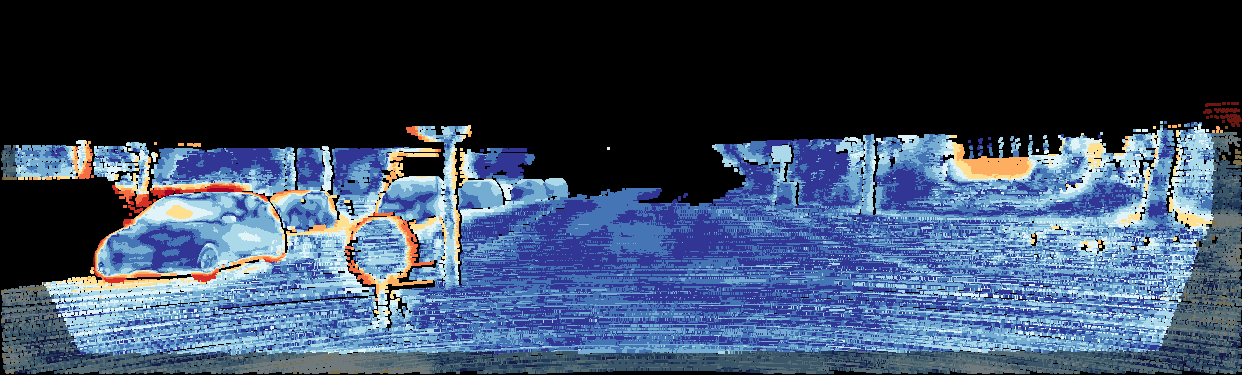

Flow Error


Test Image 12

Error Fl-bg Fl-fg Fl-all
All / All 4.02 9.09 4.37
All / Est 4.02 9.09 4.37
Noc / All 2.09 9.09 2.65
Noc / Est 2.09 9.09 2.65
This table as LaTeX

Input Image

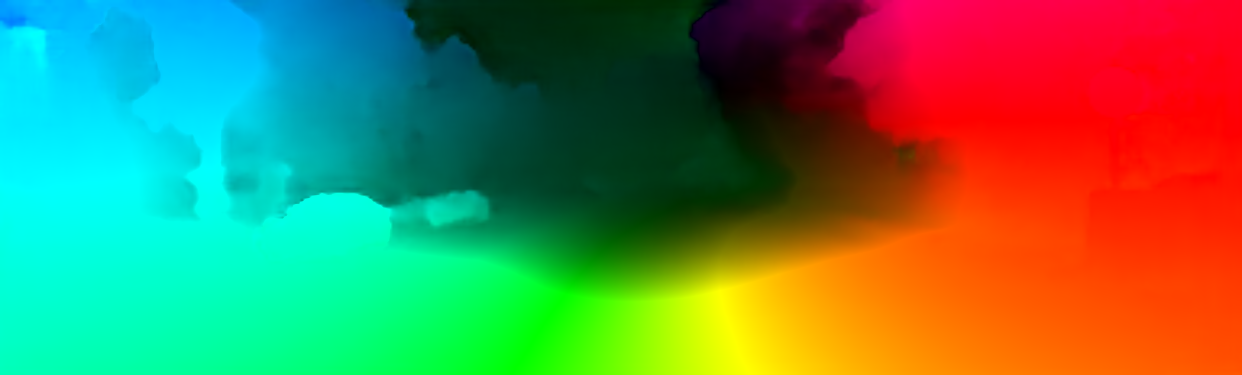

Flow Result

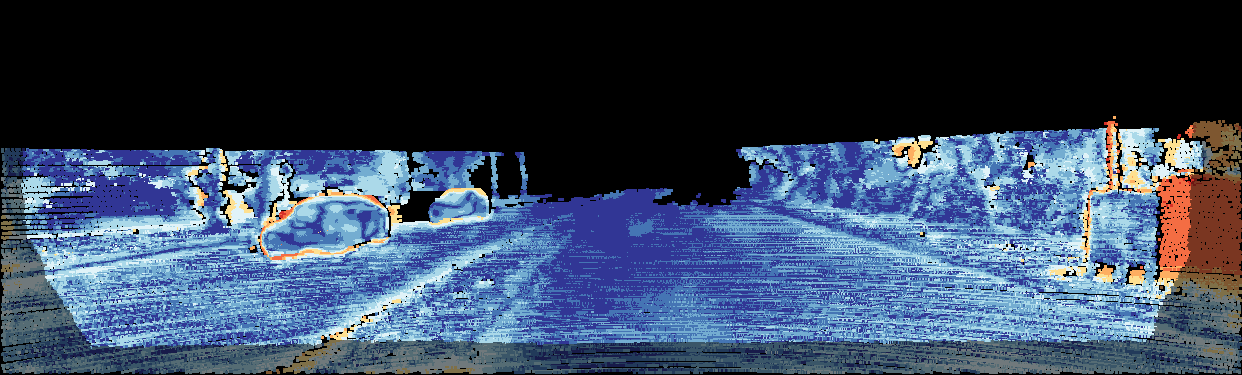

Flow Error


Test Image 13

Error Fl-bg Fl-fg Fl-all
All / All 4.07 12.54 5.11
All / Est 4.07 12.54 5.11
Noc / All 1.73 12.95 3.04
Noc / Est 1.73 12.95 3.04
This table as LaTeX

Input Image

Flow Result

Flow Error


Test Image 14

Error Fl-bg Fl-fg Fl-all
All / All 5.20 13.43 5.34
All / Est 5.20 13.43 5.34
Noc / All 2.90 13.43 3.12
Noc / Est 2.90 13.43 3.12
This table as LaTeX

Input Image

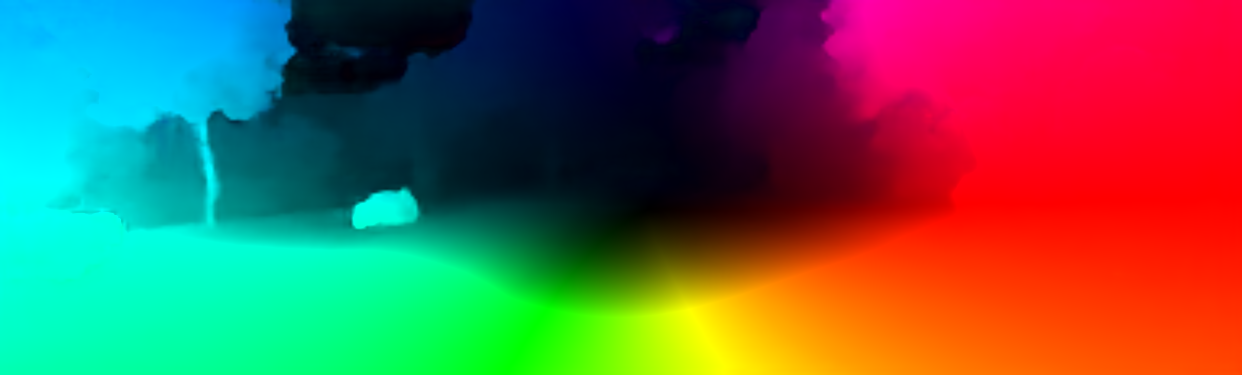

Flow Result

Flow Error


Test Image 15

Error Fl-bg Fl-fg Fl-all
All / All 11.89 11.03 11.81
All / Est 11.89 11.03 11.81
Noc / All 8.28 11.03 8.60
Noc / Est 8.28 11.03 8.60
This table as LaTeX

Input Image

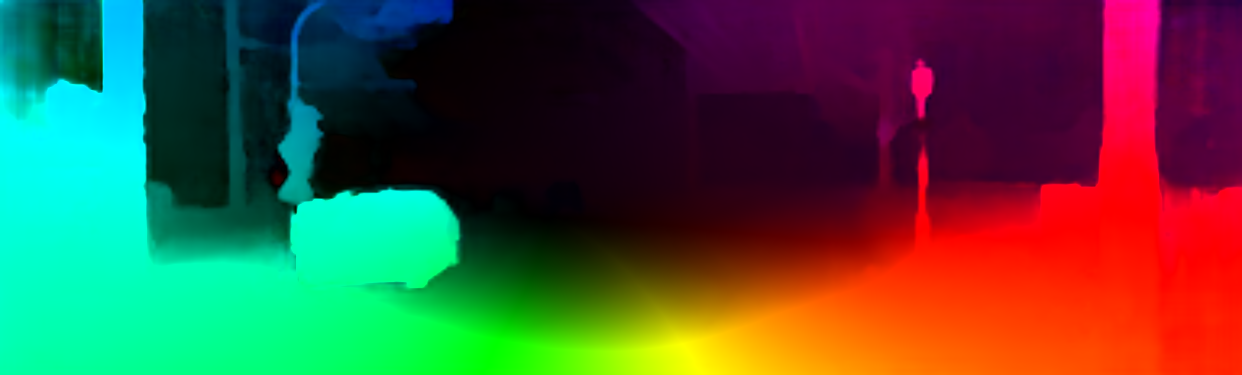

Flow Result

Flow Error


Test Image 16

Error Fl-bg Fl-fg Fl-all
All / All 18.59 17.01 18.36
All / Est 18.59 17.01 18.36
Noc / All 11.51 17.01 12.50
Noc / Est 11.51 17.01 12.50
This table as LaTeX

Input Image

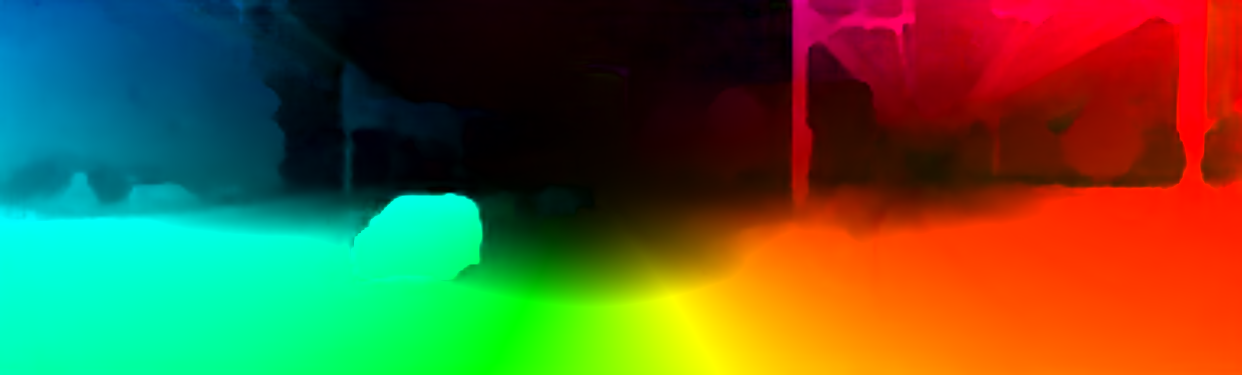

Flow Result

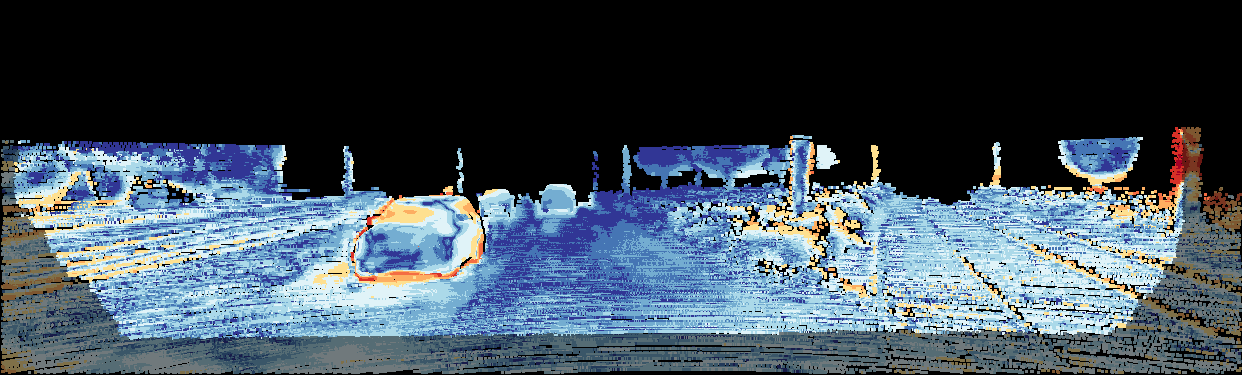

Flow Error


Test Image 17

Error Fl-bg Fl-fg Fl-all
All / All 5.64 17.40 6.86
All / Est 5.64 17.40 6.86
Noc / All 4.51 17.40 6.18
Noc / Est 4.51 17.40 6.18
This table as LaTeX

Input Image

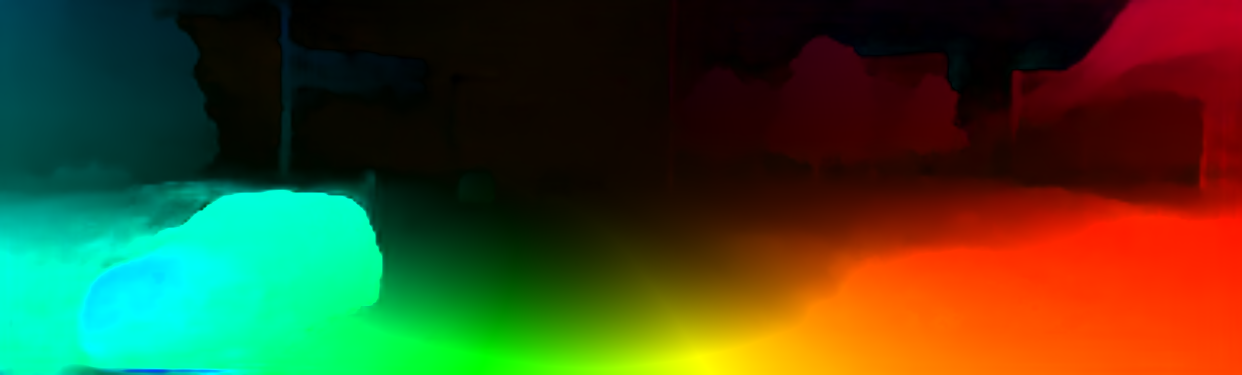

Flow Result

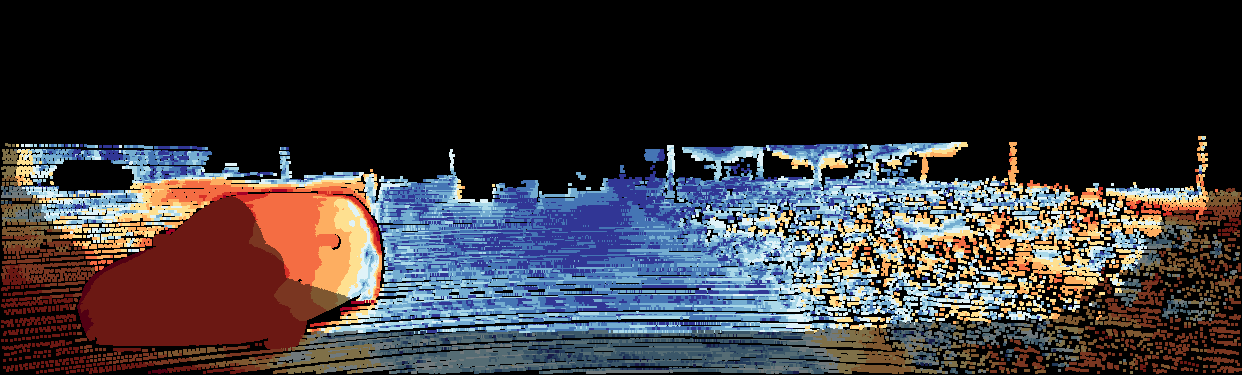

Flow Error


Test Image 18

Error Fl-bg Fl-fg Fl-all
All / All 22.52 96.35 57.59
All / Est 22.52 96.35 57.59
Noc / All 15.33 88.37 35.47
Noc / Est 15.33 88.37 35.47
This table as LaTeX

Input Image

Flow Result

Flow Error


Test Image 19

Error Fl-bg Fl-fg Fl-all
All / All 7.19 14.23 7.99
All / Est 7.19 14.23 7.99
Noc / All 6.05 14.23 7.23
Noc / Est 6.05 14.23 7.23
This table as LaTeX

Input Image

Flow Result

Flow Error
