Method

Categorical Depth Distribution Network for Monocular 3D Object Detection [CaDDN]
[Anonymous Submission]

Submitted on 26 Oct. 2020 16:19 by
[Anonymous Submission]

Running time:0.63 s
Environment:GPU @ 2.5 Ghz (Python)

Method Description:
We propose Categorical Depth Distribution
Network (CaDDN), which uses a predicted
categorical depth distribution for each pixel
to project rich contextual feature information
to the appropriate depth interval in 3D space.
We then use the computationally efficient
bird’s-eye-view projection and single-stage
detector to produce the final output bounding
boxes. We design CaDDN as a fully
differentiable end-to-end approach for joint
depth estimation and object detection.
Parameters:
TBD
Latex Bibtex:
TBD

Detailed Results

Object detection and orientation estimation results. Results for object detection are given in terms of average precision (AP) and results for joint object detection and orientation estimation are provided in terms of average orientation similarity (AOS).


Benchmark Easy Moderate Hard
Car (Detection) 93.61 % 80.73 % 71.09 %
Car (Orientation) 78.28 % 67.31 % 59.52 %
Car (3D Detection) 19.17 % 13.41 % 11.46 %
Car (Bird's Eye View) 27.94 % 18.91 % 17.19 %
Pedestrian (Detection) 46.35 % 32.42 % 29.98 %
Pedestrian (Orientation) 24.45 % 17.13 % 15.79 %
Pedestrian (3D Detection) 12.87 % 8.14 % 6.76 %
Pedestrian (Bird's Eye View) 14.72 % 9.41 % 8.17 %
Cyclist (Detection) 40.03 % 27.13 % 23.23 %
Cyclist (Orientation) 30.35 % 19.96 % 17.38 %
Cyclist (3D Detection) 7.00 % 3.41 % 3.30 %
Cyclist (Bird's Eye View) 9.67 % 5.38 % 4.75 %
This table as LaTeX

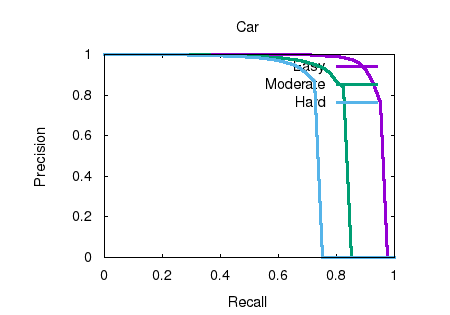

2D object detection results.
This figure as: png eps pdf txt gnuplot

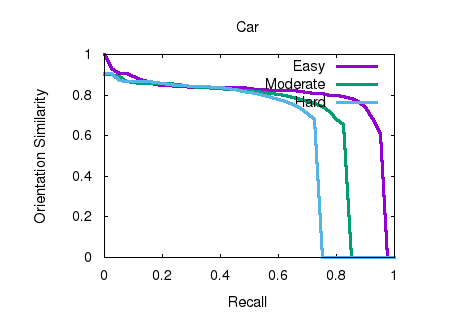

Orientation estimation results.
This figure as: png eps pdf txt gnuplot



3D object detection results.
This figure as: png eps pdf txt gnuplot

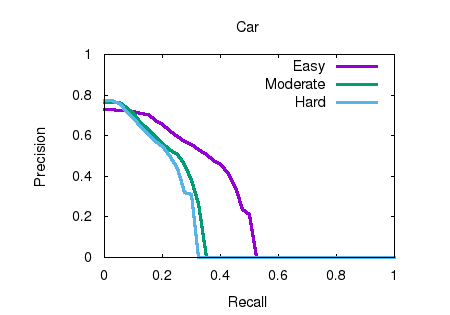

Bird's eye view results.
This figure as: png eps pdf txt gnuplot



2D object detection results.
This figure as: png eps pdf txt gnuplot



Orientation estimation results.
This figure as: png eps pdf txt gnuplot

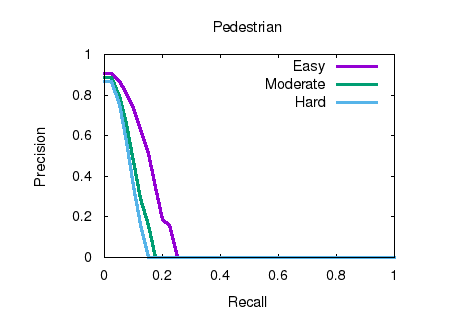

3D object detection results.
This figure as: png eps pdf txt gnuplot

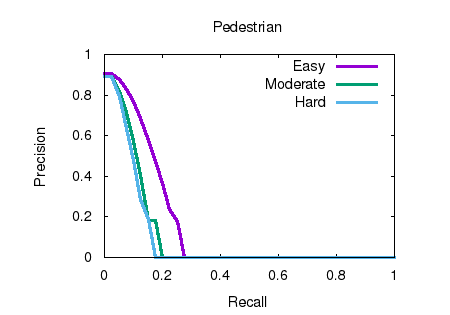

Bird's eye view results.
This figure as: png eps pdf txt gnuplot

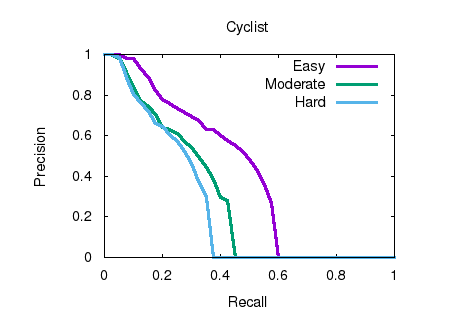

2D object detection results.
This figure as: png eps pdf txt gnuplot

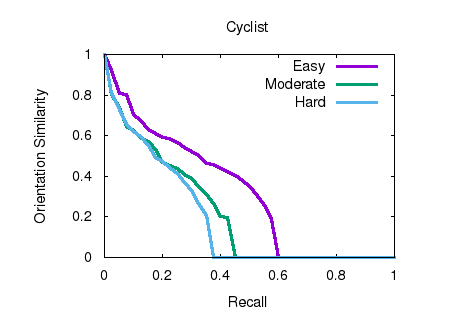

Orientation estimation results.
This figure as: png eps pdf txt gnuplot

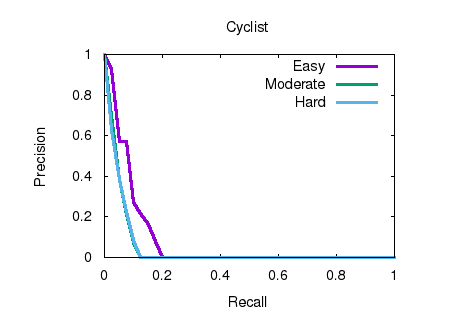

3D object detection results.
This figure as: png eps pdf txt gnuplot



Bird's eye view results.
This figure as: png eps pdf txt gnuplot
